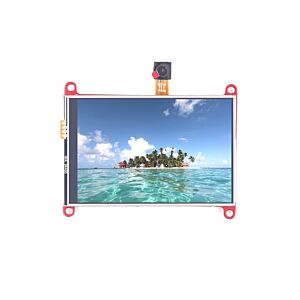

MaTouch_ESP32 3.5

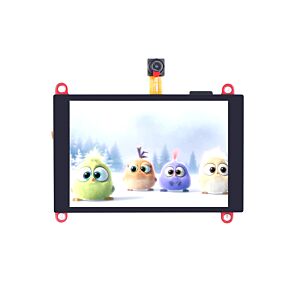

MaTouch_ESP32 3.5" TFT Touch(Capacitive) with Camera

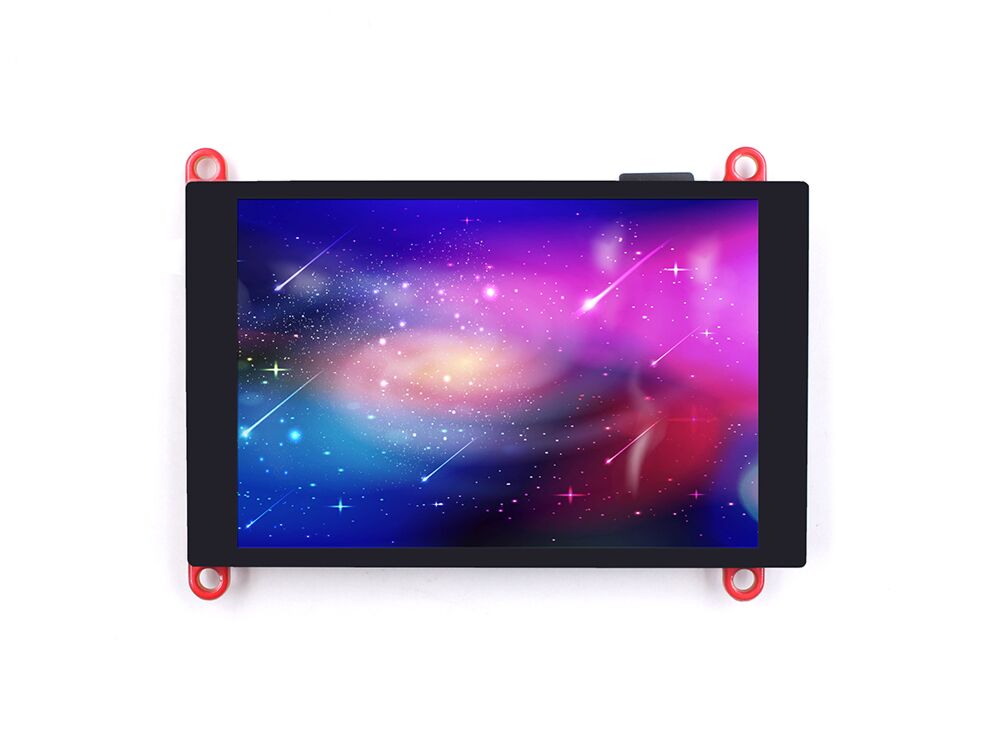

MaTouch_ESP32-S3 SPI TFT with Touch 3.5'' ILI9488

was $42.80 Special Price $36.38
This is the latest ESP32-S3 SPI TFT with touch, it uses standard SPI for communication with ESP32-S3, so the other IO of the controller can be used for external applications.
Availability: In stock
SKU
ESP32S3SPI35

ESP32-S3 SPI Version and Parallel Version Comparison:

ESP32-S3 TFT as USB HID:

This is the latest ESP32-S3 SPI TFT touch. Compares to the ESP32-S3 Parallel TFT with Touch, it takes much fewer pins of the ESP32-S3, so more pins can be reserved there, for application usage, such as connecting kinds of sensors, so this board can be used for applications such as local monitoring/display, and IoT connections to the cloud, for remote monitoring/controlling.

Compared to the ESP32 3.5" TFT Touch, the ESP32 S3 features advanced core Xtensa® dual-core 32-bit LX7, and Bluetooth 5.0, you can check the detailed comparison at: the ESP32 series comparison shows the detailed difference of ESP32/S2/S3, and the C series.

This 3.5" 320x480 TFT LCD driver is ILI9488, it uses standard SPI for communication with ESP32-S3, so the other IO of the controller can be used for external applications.

Features:

  • Controller: ESP32-S3-WROOM-1-N16R2, PCB Antenna, 16MB Flash, 2MB PSRAM
  • Wireless: Wifi& Bluetooth 5.0
  • LCD: 3.5 inch TFT LCD
  • Resolution: 480*320
  • Color: RGB
  • LCD interface: SPI
  • LCD Driver: ili9488
  • Touch Panel: Capacitive
  • Touch Panel Driver: FT6236
  • USB: Dual USB Type-C(one for USB-to-UART and one for native USB)
  • UART to UART Chip: CP2104
  • Power Supply: USB Type-C 5.0V(4.0V~5.25V)
  • Button: Flash button and reset button
  • More interface: 1*I2C; 11*GPIO
  • Backlight Controller: Yes
  • MicroSD: Yes
  • Arduino Support: Yes
  • Type-C Power Delivery: Not Supported
  • Operation temperature: -40℃ to +85℃
  • Dimension: 66mm*84.3mm*12mm
  • Weight: 52g
