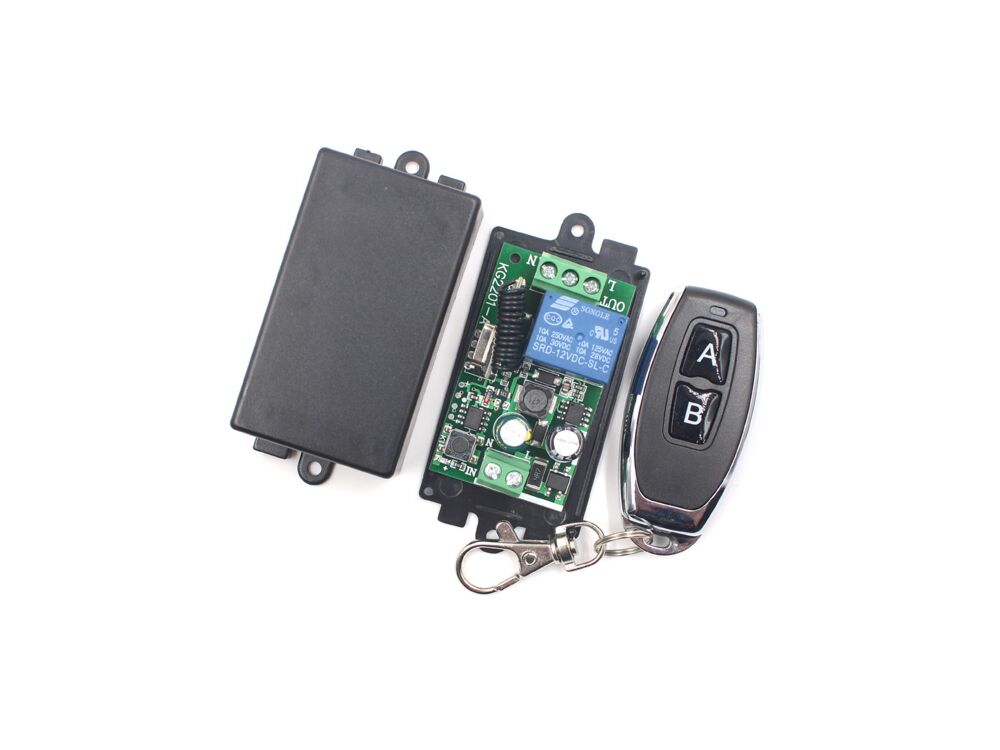

1 Channel RF Control Relay Kit

$5.20
Availability: In stock
SKU
MCR220RFK
  • Buy 21 for $3.50 each and save 33%

This is a DC12V 10A 1CH Single Channel Wireless Relay, which controls by the RF remote controller.

How to use:
Working/output way:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch needs a one-button remote control.
2. Self-lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch needs a one-button remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch needs 2 buttons remote control.

Working/output Mode Setting:
1. Enter Mode Setting Mode: Press the button 8 times, and LED will blink a while, indicates that the module Resets, and enter setting mode.

2. Mode Setting:
● Jogging
Press the button once on the top of the control panel, LED blink 3 times. Press the button A on the controller(LED will blink 3 times), Setting completed.
● Self-locking
Press the button twice on the top of the control panel, LED blink 3 times. Press the button A on the controller(LED will blink 3 times), Setting completed.
● Interlock
Press the button 3 times on the top of the control panel, LED blink 3 times. Press the button A on the controller(LED will blink 3 times), and then press button B on the controller(LED will blink 3 times), Setting completed.

3. Every time you want to switch, you will need to set the mode from step_1.

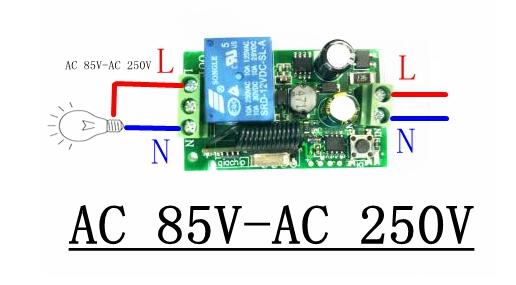

1-Channel-RF-Control-Relay-Kit

Features:

  • Input Voltage: AC85V—AC220V
  • RF Frequency: 433MHZ
  • RF Working mode: Superheterodyne receiver
  • Receiver Sensitivity: -107dBm
  • Remote Control Distance: >100 meter(In open environment)
  • Decoding Way: MCU Software decoding
  • Can store the number of remote control: 50
  • Support remote control type: Fixed code, learning code
  • Channel: 1CH
  • Multiple working modes: (Jog/Non-Latched, inter-lock/Latched, self-lock /Self-Latched, Delay-off)
  • Wiring Method: Fixed wiring terminal
  • Output Current: 10A
  • Rated load: 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
  • Output: Normally open, Common, Normally closed
  • Package List:

  • 1 x 1 Channel RF Control Relay Kit
