315Mhz RF Transmitting Kit

$0.60
Availability: In stock
SKU
MCR315MTK

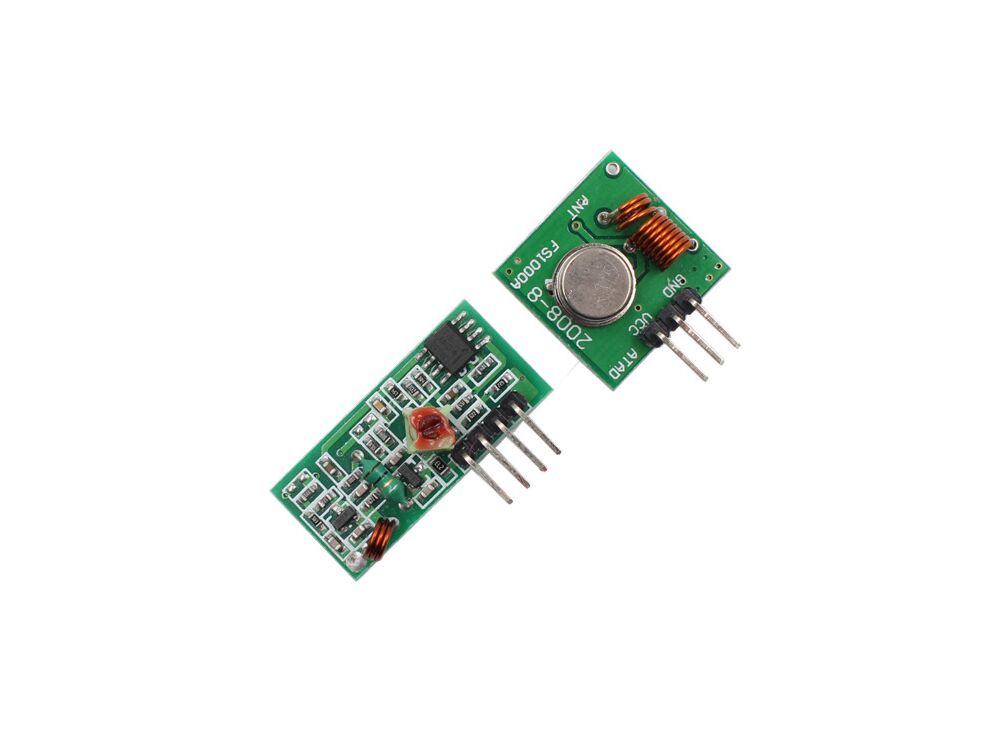

This Radio Transmitter & Receiver pair is perfectly matched to allow you to control items from a distance up to 500 feet wirelessly! Connect the transmitter to your Arduino or other microcontroller and the receiver to whatever you'd like to control. Both the transmitter and receiver are in tune with the same radio frequency so that when the transmitter emits a signal, the receiver will hear it wirelessly. Great for easy and simple wireless control!

Specification of Receiver:

  • Receive sensitivity: -105DB
  • Quiescent current: 4mA
  • Frequency: 315 Mhz
  • Receiver Data Output: High - 1/2 Vcc, Low - 0.7v
  • Working Voltage: 5V DC
  • Dimension: 30*14*7mm

  • Specification of Transmitter:

  • Working Voltage: 3-12V (high voltage = more transmitting power)
  • Modulation: AM
  • Transfer rate: 4 KB/S
  • Transmission power: 10 mW
  • Frequency: 315 Mhz
  • Transmitting distance: 20-200 meter (base on the voltage)

  • Package List:

  • 1 x 315MHz RF Transmitter
  • 1 x 315MHz RF Receiver

  • Documents:

  • Demo Code
