Mini Ethernet Board W5500

$7.80
Availability: In stock
SKU
MCI5500WM
  • Buy 21 for $5.50 each and save 29%

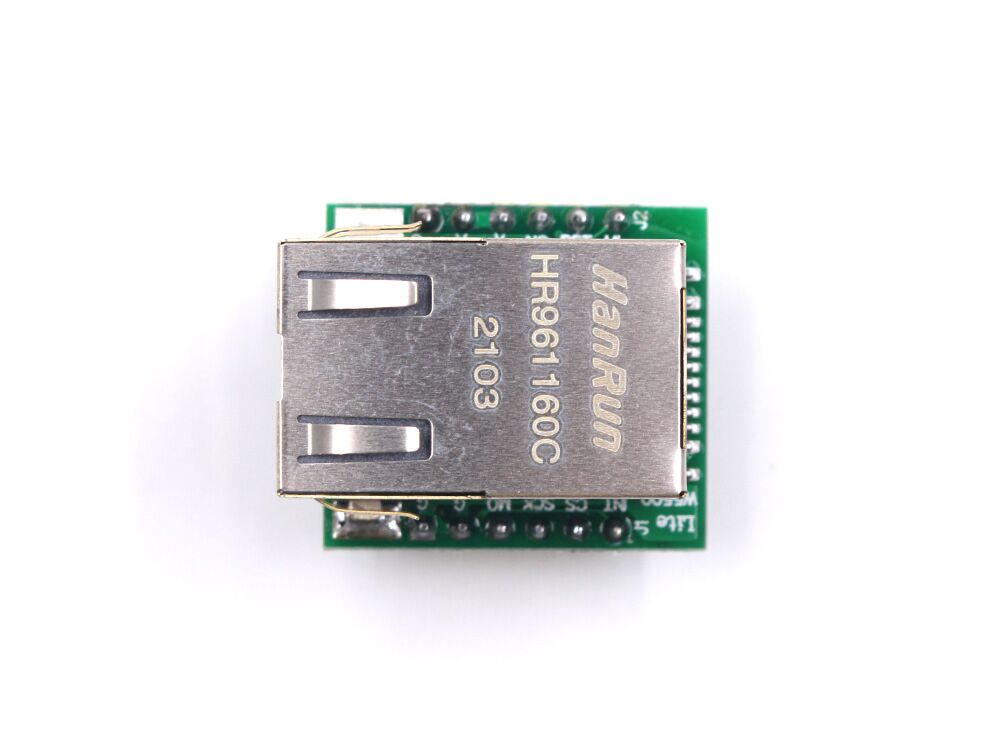

This is a mini Ethernet board based on W5500. The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC, and PHY embedded.

WIZnet’s Hardwired TCP/IP is the market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 embeds the 32Kbyte internal memory buffer for the Ethernet packet processing. If you use W5500, you can implement the Ethernet application just by adding the simple socket program. It’s a faster and easier way rather than using any other Embedded Ethernet solution.

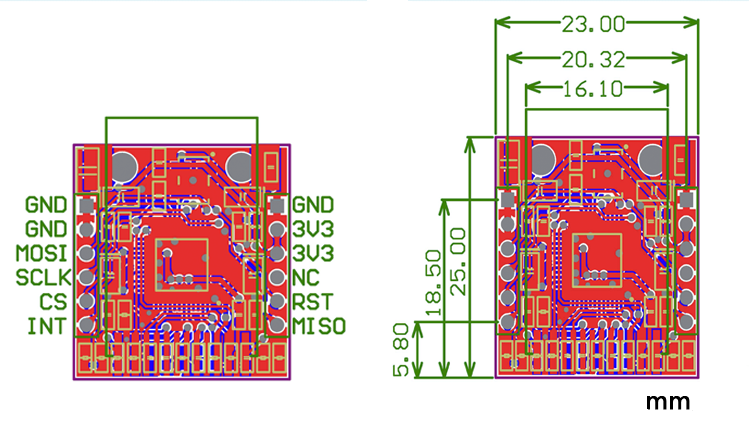

Mini-Ethernet-Board-W5500

Features:

  • 80MHz high-speed SPI interface
  • Supports Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 independent sockets simultaneously
  • Supports Power-down mode
  • Supports Wake on LAN over UDP
  • Supports High-Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • Internal 32Kbytes Memory for TX/RX Buffers
  • 10BaseT/100BaseTX Ethernet PHY embedded
  • Supports Auto-Negotiation (Full and half-duplex, 10 and 100-based)
  • Not supports IP Fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • LED outputs (Full/Half duplex, Link, Speed, Active)
  • Package List:

  • 1 x Mini Ethernet Board W5500
  • Documents:

  • Datasheet
