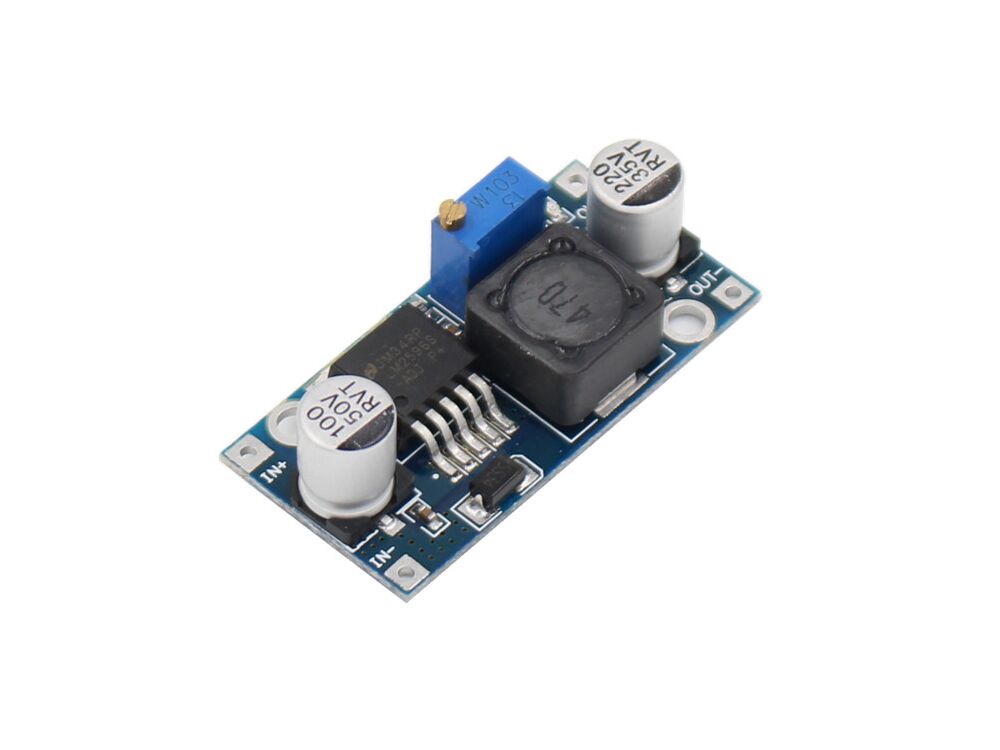

Adjustable Mini DC-DC Module- LM2596S

Adjustable Mini DC-DC Module- LM2596S

This DC-DC module based on the step-down switching regulator LM2596S. In this module, the output voltage is adjustable by the adjustable resistance and the max current output up to 2A. The switching frequency of it is 150 kHz and it has high efficiency, max up to 92%.


  • Input Voltage: 3.2V~35V (1.5V higher than the output at least)
  • Adjustable Output Voltage: 2.45V~30V
  • Output Rated Current: 1A
  • Max Output Current: 2A
  • Switching Frequency: 150 kHz
  • Dimension: 41mm x 20mm x 14mm
  • Package List:

  • 1 x Adjustable Mini DC-DC Module- LM2596S
  • Documents:

  • Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 10162
    • Product Code: MPA02596S
    • Availability: In Stock
    • $1.20
    • 21 or more $0.50
