AgroSense_Air Temperature and Humidity Sensor LoRaWAN®

AgroSense LoRaWAN® Temperature & Humility Sensor uses the AHT20 sensor, to measures temperature and humidity in the atmosphere at the range of -40℃ to 85℃ and 0 to 100 %RH with accuracy ±0.2℃ and ±0.2%RH respectively, also with highly waterproof performance tested to IP68, making it widely applicable in agricultural environmental sensing scenarios to support the smart agricultural production.

The sensor benefits from LoRaWAN , which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it , and setting the configuration in the cloud server, for LoRaWAN® remote monitoring.  It monitors the air temperature and humidity and report them every 1 hour.

This product mainly features:

• - Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915.
• - Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
• - Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
• - Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
• - Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)
• - Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.

General Parameters

Wireless  Parameters

Physical  Parameters

Description
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense can work with LoRaWAN® gateway.

Note that all agrosense Products are based LoRaWAN tech, that need to work with a LoRaWAN Gateway, We suggest this Sensecap M2

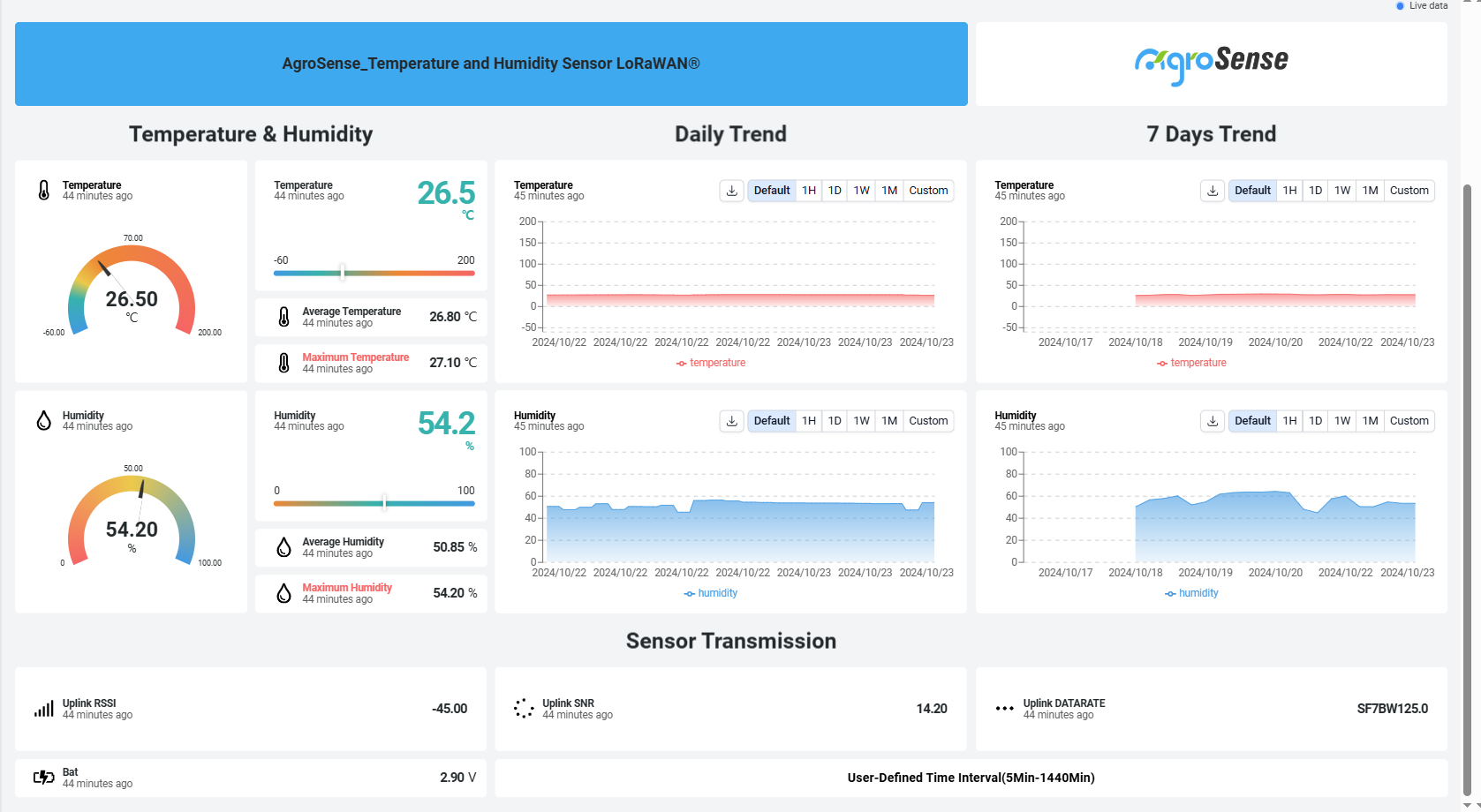

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network, with simply inputting DEV EUI/ APP EUI/ APP Key:

• - DEV EUI: Unique identification of device，authorized by IEEE；
• - APP EUI: Unique identification of application；
• - APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；

Part List

• - Agrosense_ Temperature & Humility Sensor *1;

Usage

• - Quick Start For Gateway & AgroSense Sensors

• - AgroSense Products Datasheet
• - Usage Wiki
• - User Manual

For country/ area frequency selecting,please check here: regional Parameter
