AgroSense_Light Intensity Sensor LoRaWAN®

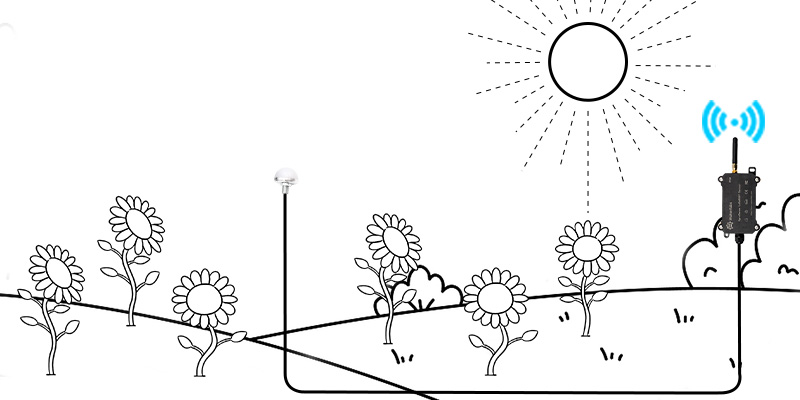

AgroSense LoRaWAN® Light Intensity Sensor uses the BH1750 sensor, to measures the light intensity at the range of 1 to 65535 lx, -40℃ to 85℃with accuracy ±1 lx and resolution ±20% respectively, also with highly waterproof performance tested to IP68, making it widely applicable in agricultural environmental sensing scenarios to support the smart agricultural production.
The sensor benefits from LoRaWAN , which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it , and setting the configuration in the cloud server, for LoRaWAN® remote monitoring. It monitors the light intensity and report them every 1 hour.
This product mainly features:
- - Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- - Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- - Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- - Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- - Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)
- - Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.
General Parameters
| Product Model | AGLWL01 |
| Measurement Range | 1-65535 LX |
| Measurement Accuracy | 1 LX |
| Resolution | ±20% |
Wireless Parameters
| Communication Protocol | Standard LoRaWAN® protocol |
| Network Access/Operating Mode | OTAA Class A |
| MAX Transmit Power | 21dBm |
| Receiver Sensitivity | -137dBm/125kHz SF=12 |
| Frequency Band | EU868/US915 |
Physical Parameters
| Lead Length | 1 .0 meter (custom length available) |
| Power Supply | 2 x AAA 1.5V batteries |
| Operating Temperature | -40°C ~85°C |
| Protection Class | IP68 |
| Dimensions | 131 × 62.7 × 27.5 mm |
| Mounting | Wall Mounting |
Description
AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.
It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense can work with LoRaWAN® gateway.
Note that all agrosense Products are based LoRaWAN tech, that need to work with a LoRaWAN Gateway, We suggest this Sensecap M2

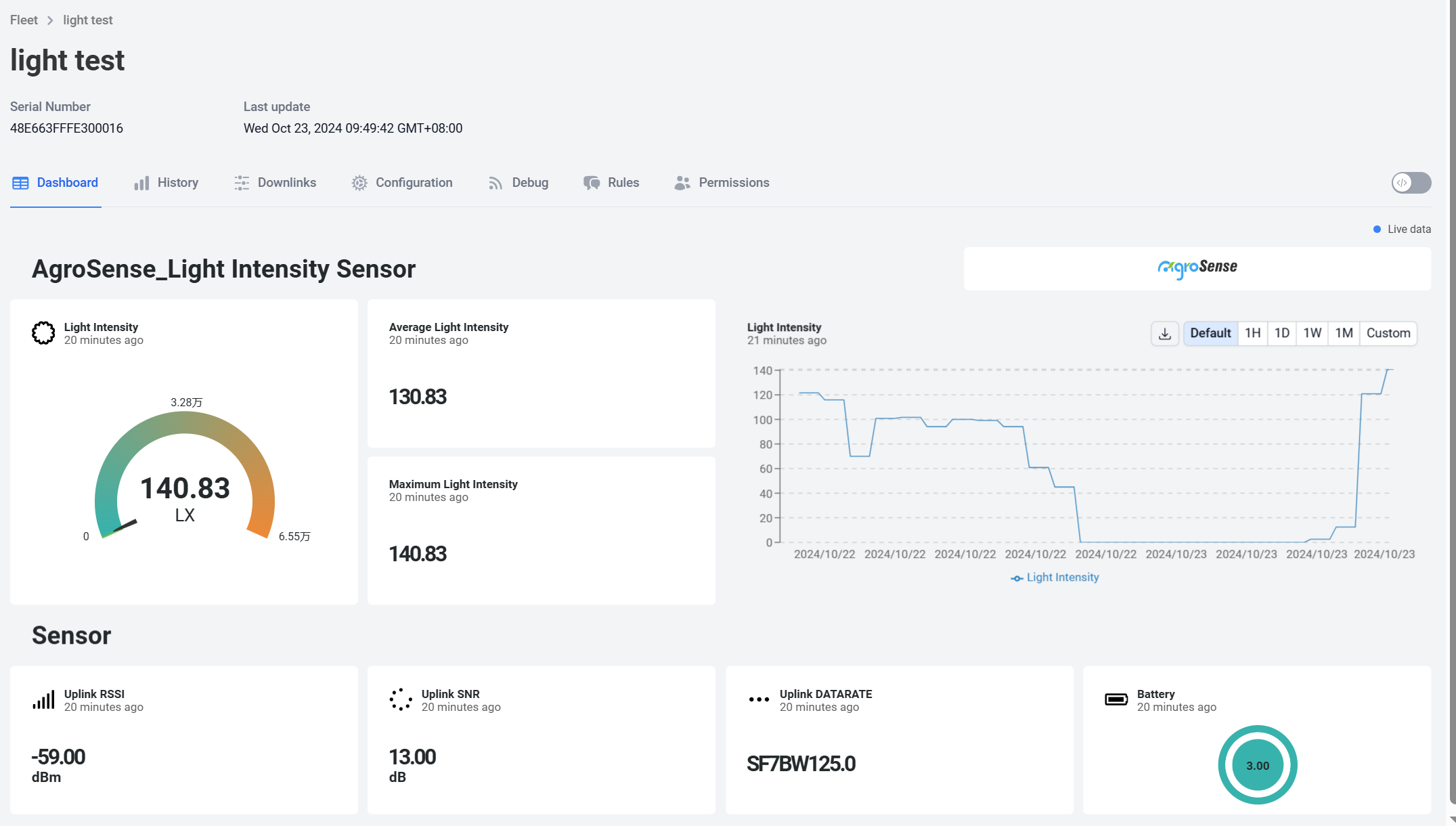

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network, with simply inputting DEV EUI/ APP EUI/ APP Key:
- - DEV EUI: Unique identification of device，authorized by IEEE；
- - APP EUI: Unique identification of application；
- - APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；
Part List
- - Agrosense_Light Intensity Sensor *1;
Usage
- - Quick Start For Gateway & AgroSense Sensors
- - AgroSense Products Datasheet
- - Usage Wiki
- - User Manual
For country/ area frequency selecting,please check here: regional Parameter
