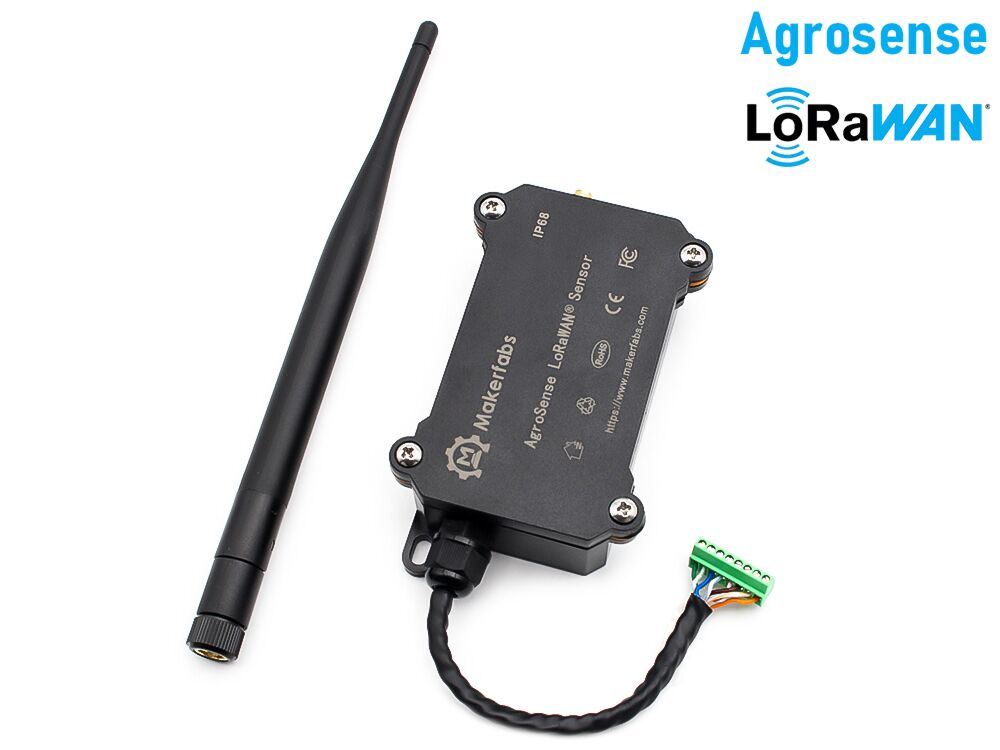

AgroSense LoRaWAN® 4-Channel ADC 12 bits

AgroSense LoRaWAN® 4-Channel ADC 12 bits use ADS1015IDGSR chip , which is capable of connecting up to 4-channel devices and provides high-precision analogue-to-digital conversions (ADCs) of up to 12 bits. Also, the product has been rigorously tested for IP68 waterproof performance to ensure reliability and durability in a variety of harsh environments.

The device supports voltage inputs, either directly or from other sensors, for a wide range of IoT applications. The built-in low-power 12-bit delta-sigma analogue-to-digital converter (ADC) provides a high degree of accuracy and stability.

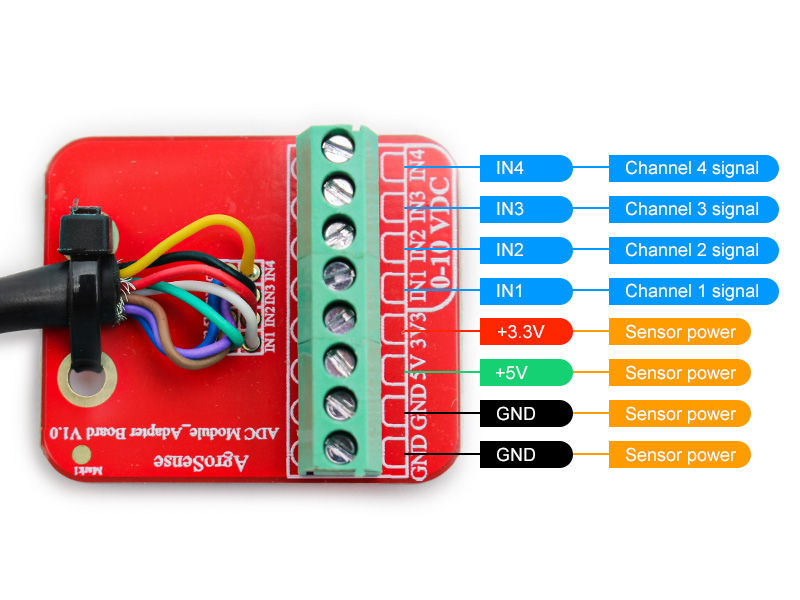

In addition, the 3/4 input channels of the AgroSense 4-Channel ADC can be configured in differential input mode, which greatly enhances its immunity to interference and ensures stable operation in complex electrical environments.

The sensor benefits from LoRaWAN , which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server, for LoRaWAN® remote monitoring.  It monitors the environmental data users need and report every 1 hour, with downlink users can manually adjust the reporting time.

This product mainly features:

• - Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
• - Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
• - Designed to Use in Harsh Environments: -40℃ ~ 128℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
• - Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
• - Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)
• - Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.

General Parameters

Wireless  Parameters

Physical  Parameters

Description

AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network, with simply inputting DEV EUI/ APP EUI/ APP Key:

• - DEV EUI: Unique identification of device，authorized by IEEE；
• - APP EUI: Unique identification of application；
• - APP Key: One of the join network parameters on OTAA mode, calculated by DE EUI

Part List

• - Agrosense_4-Channel ADC 12 bits *1

Usage

• - AgroSense Products Datasheet
• - Usage Wiki  
• - User Manual

For country/ area frequency selecting, please check here: regional Parameter
