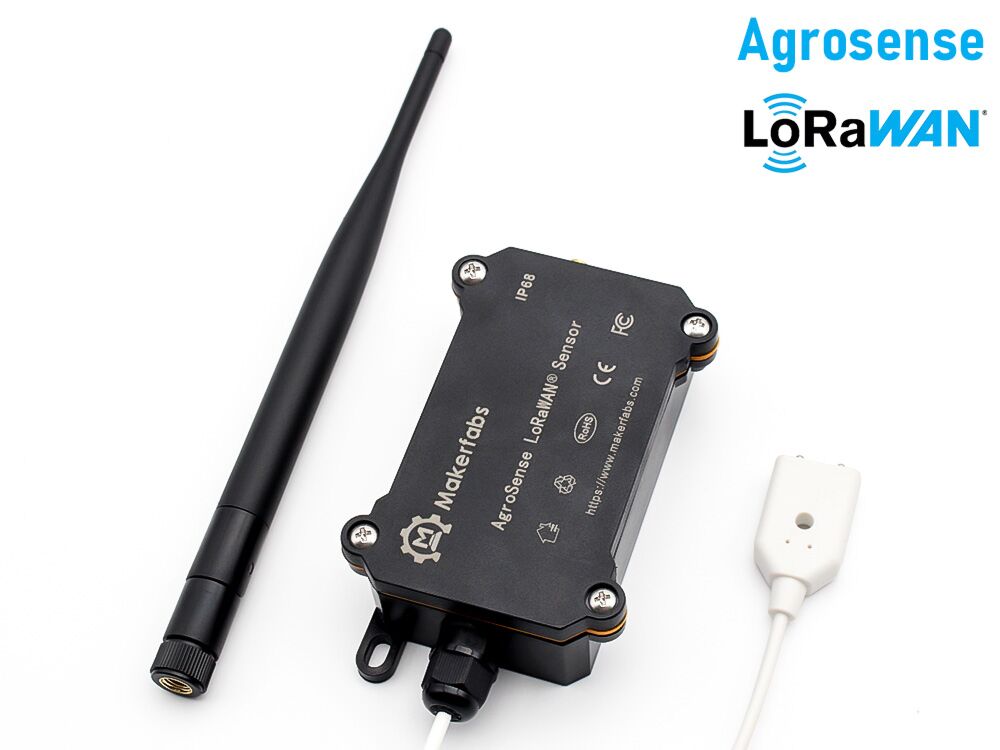

AgroSense_Positioning Water Leak Sensor LoRaWAN®

Be the first to review this product

$17.90

Availability: In stock

SKU

AGLWPW01

Details

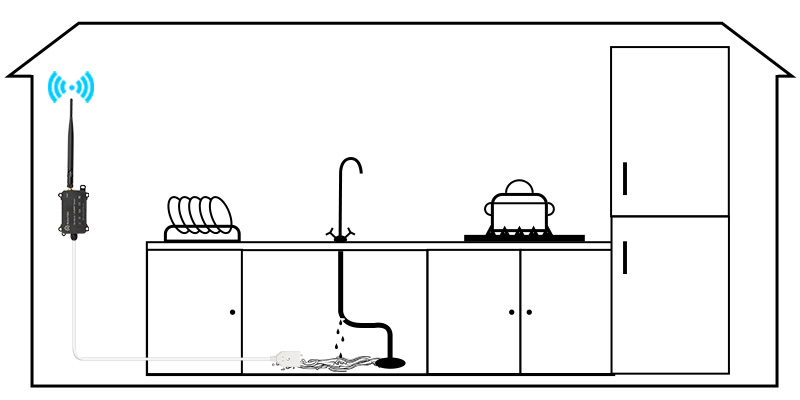

This AgroSense LoRaWAN® Positioning Water Leak Sensor detects water leakage at fixed points. Suitable for applications such as garage/kitchen water leakage detection. It reports the water leakage via LoRaWAN® protocol instantly as leakage detected.

The sensor benefits from LoRaWAN, which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server.

This product mainly features:

- Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
- Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
- Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
- Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)
- Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.

General Spec:

Product Model	AGLWPW01
Detection types	Various liquids such as water, oil, etc.
Detection modes	Fixed position detection

Wireless Parameters:

Communication Protocol	Standard LoRaWAN® 1.0.3protocol
Network Access/Operating Mode	OTAA Class A
MAX Transmit Power	21dBm
Receiver Sensitivity	-137dBm/125kHz SF=12
Frequency Band	EU868/US915

Physical Parameters:

Lead Length	1 .0 m meter
Power Supply	2 x AAA 1.5V batteries
Operating Temperature	-40°C ~85°C
Protection Class	IP68
Dimensions	131 × 62.7 × 27.5 mm
Mounting	Wall Mounting

AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

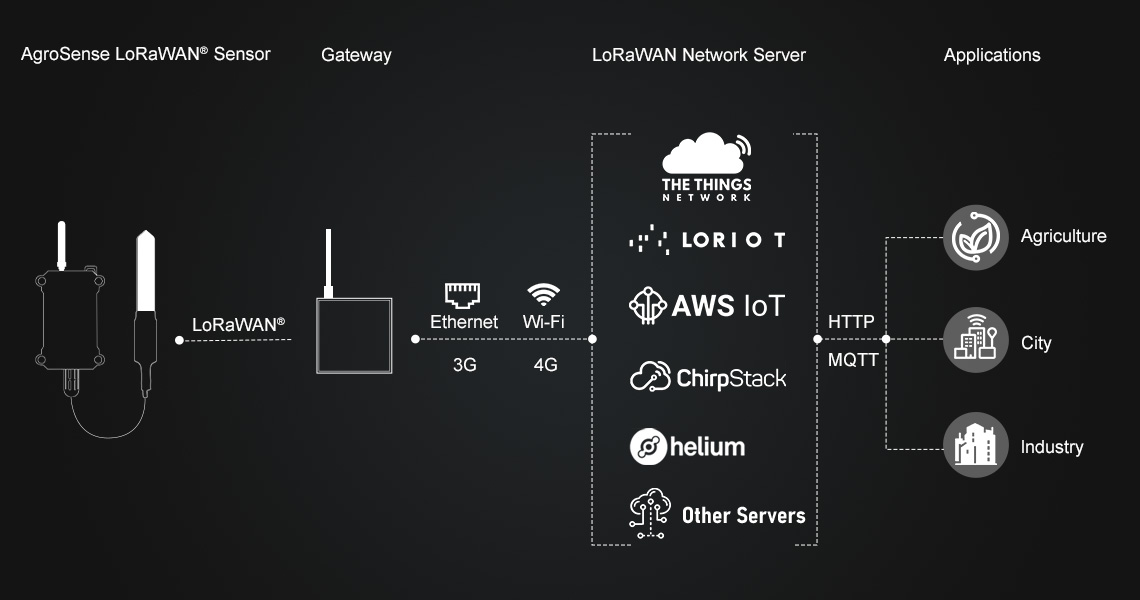

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

- DEV EUI: Unique identification of device，authorized by IEEE；
- APP EUI: Unique identification of application；
- APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；
