Barometer-MD-PS002-150kpa

Click Image for Gallery

Description
Reviews (0)

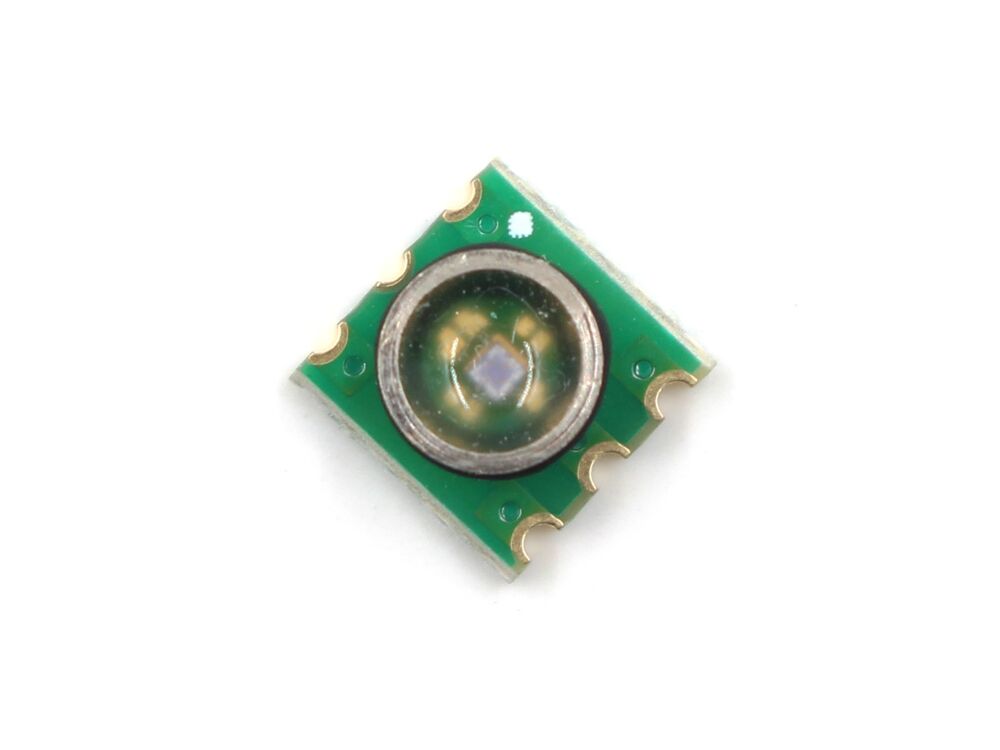

MD-PS002 is the second package based on the MD-PS001, which is a barometer sensor measurement range up to 150 kpa.

Features:

Range: 150kpa (absolute) pressure ranges from the vacuum (absolute zero pressure) above atmospheric 50kpa

Note: 15psi is this range. That can be measured vacuum (-100kpa), can also be used to measure positive, can be used for composite scale (positive and negative pressure detection).

Output: mV signal

Power supply: 5VDC or constant current 1MA

Linear Accuracy: 0.25% FS

Application:

Automotive: tire pressure gauge, car air pump, MAP sensor, diagnostic equipment, steam engines, and suspension mechanism control, automotive sensors.

Industry: Pressure switches and controllers, air brake switch, cable leak detection, portable manometer.

Medical: patient monitoring and diagnostic equipment, blood pressure monitors.

Package List:

1 x Barometer-MD-PS002-150KPaA

Documents:

Datasheet
