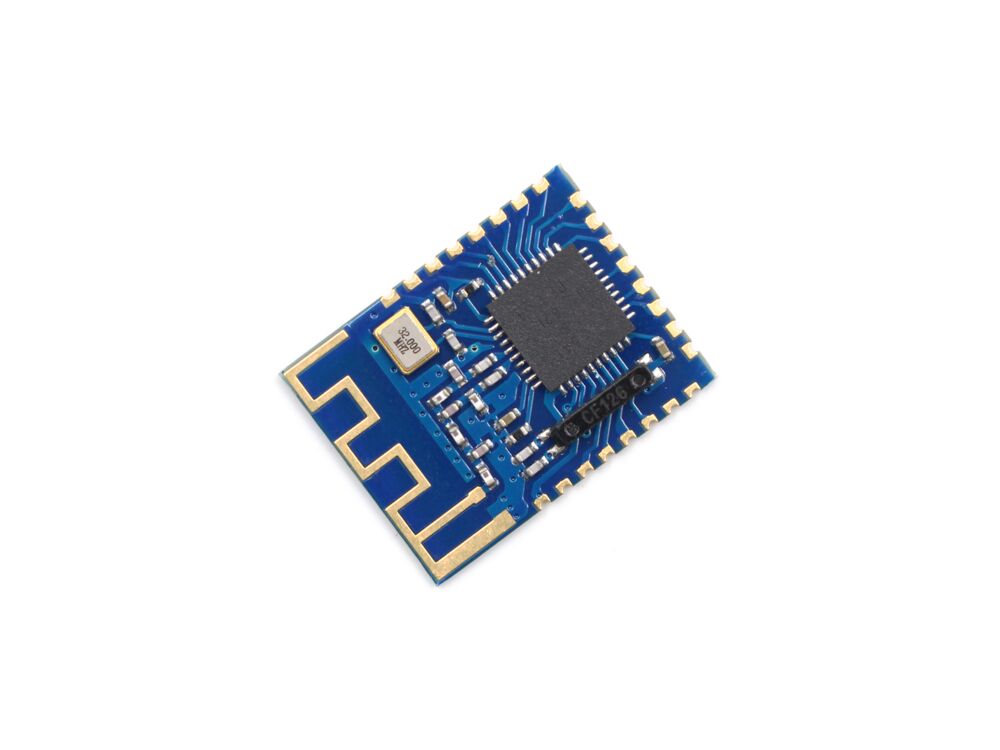

Bluetooth Low Energy Module- CC2541

Bluetooth Low Energy Module- CC2541
This Bluetooth Low Energy Module is based on Bluetooth 4.0 protocol standard, the scope of work frequency is 2.4 GHZ, modulation method for GFSK, maximum transmitted power of 0 db, the largest launch distance about 80 meters. Designed based on TICC2541 chip, support AT command to modify the device name, service UUID, transmission power, such as matching password instructions, convenient use and flexible.

Features:

  • Support WeChat transparent transmission
  • Support APP transparent transmission
  • Support WeChat control (like Motor PWM control, LED switch control)
  • Support iBeacon model
  • Support sensor model(Temperature, humidity, and many other sensor data acquisition application)
  • Support RTC model
  • Default model: transparent transmission
  • Default Baud rate:115200
  • Package List:

  • 1 x Bluetooth Low Energy Module- CC2541
  • Documents:

  • Write a review

    Note: HTML is not translated!
        Bad           Good

    • Product Code: MCB2541CC
    • Availability: In Stock
    • $2.10
    • 51 or more $2.00
