DC-DC Module- 5A 75W

DC-DC Module- 5A 75W

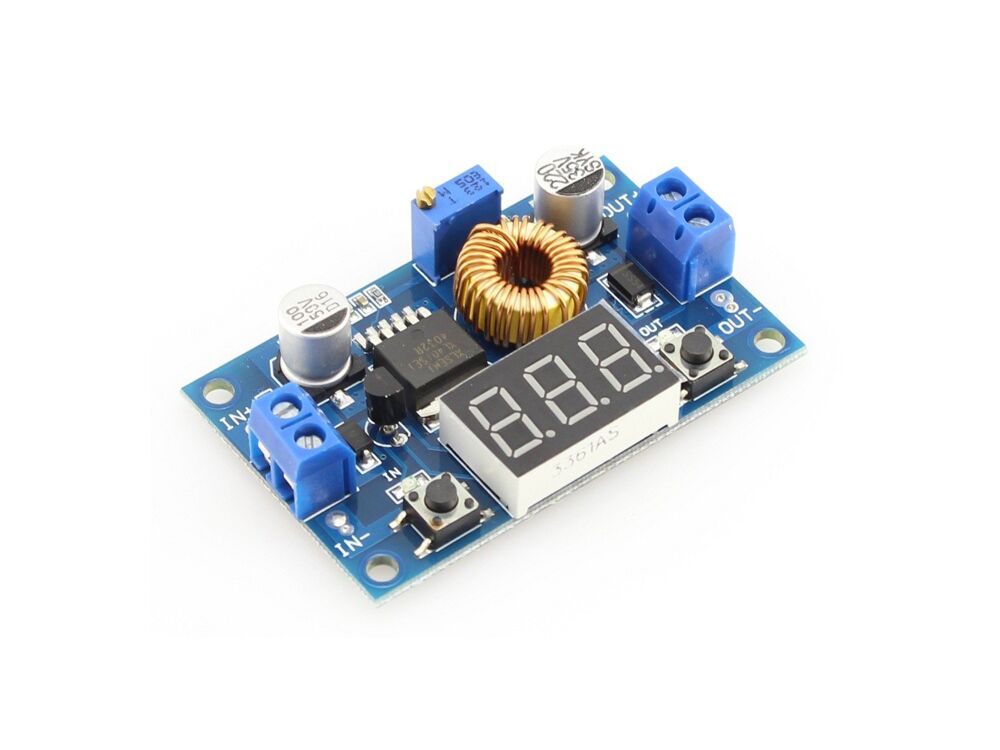

The DC-DC Adjustable Step-Down Converter Module has large power, high efficiency, low-ripple. With power indicator, on-board voltmeter. The measure can be changed between input and output voltage, with an indicator. The voltmeter can also be shutdown. The board uses a connection terminal for easy wiring.

This module can be also calibrated manually as the following method:
• 1. Power up the module with a stable and accurate power supply, such as a 5V power supply, then short press the button on the right side to select which one do you need to adjust (input or output), and long-pressing (press time > 2S) the button(right) makes the module enters the calibration model, after releasing the button, the related LED would blink to indicate which voltage is now calibrating, and the numeric display blinks the correction value.
• 2. Short press the button to change the correction value, Short press the button on the right side, voltage increases one unit, Short press the button on the left side, voltage reduce one unit, for example, if your power supply is 5V, but the result of voltage meter is 4.8, you need to set the value to 5V.
• 3. Long press button on the right side(press time ≈ 2S), to store the voltage correction value.
• 4. Calibrate the output voltage in the same way above; The correction value will be stored in non-volatile memory. Tips: You can contra rotate to the potentiometer more than 10 circles at first. Because the default output voltage of this module is 20V.

Features:

  • Input Voltage: 4V~38V (1.5V higher than the output at least)
  • Adjustable Output Voltage: 1.25V~35V
  • Measurement Accuracy: ±0.05V
  • Output Current: Up to 5A
  • Dimension: 60mm x 37mm x 18mm
  • Package List:

  • 1 x DC-DC Module- 5A 75W
  • Documents:

  • XL4015 Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 5576
    • Product Code: MPC0575DC
    • Availability: In Stock
    • $3.20
    • 21 or more $2.30
