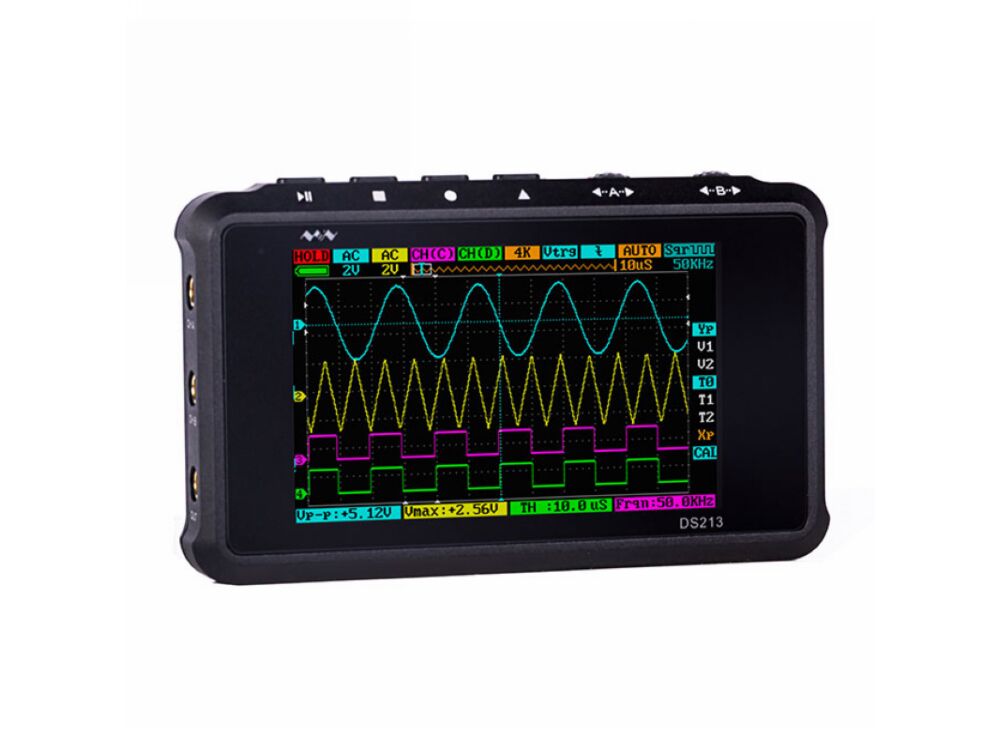

DS213 4- Channel Open Hardware Mini Oscilloscope

DS213 4- Channel Open Hardware Mini Oscilloscope

DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering tasks and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has a built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs.


  • Mini size, lightweight, portable and handheld;
  • It can store waveforms, making waveform analysis clearer and more effective;
  • Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
  • Powerful ability to process waveforms, it can automatically measure parameters such as voltage, frequency and pulse width.
  • CPU: ARM Cortex M3
  • FIFO & Control: FPGA
  • ADC: HWD9288-100
  • Analog Channels: 2([CH_A] [CH_B])
  • Digital Channels: 2([CH_C] [CH_D])
  • Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B]、 [CH_A]-[CH_B]、[CH_C]&[CH_D]、[CH_C] | [CH_D]
  • Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe) 100mV-100V/div (1-2-5 STEP) (using X10 probe)
  • Vertical Resolution: 8 bits
  • Sample Memory Depth: 4 channels, 4*4K
  • Coupling: DC, AC
  • Max Input Voltage: ±40Vpp (using X1 probe) ±400Vpp (using X10 probe)
  • Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger
  • Trigger Mode: Auto, Normal, Single, Slow
  • Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]
  • Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;
  • Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources
  • Storage: built in 8M USB disk
  • File Types: BMP、BUF、CSV
  • Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average
  • Cursor Measurement: Time value, Amplitude value
  • Display Modes: 4 wave lines:
    Line 1: [CH_A], HIDE
    Line 2: [CH_B], HIDE
    Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE
    Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE
  • Sampling Mode: Real-time Sampling
  • Sampling Rate: 100M Sa/s
  • Battery: 1000mAh
  • Size: 99.5mmx58.5mmx13.5mm
  • Certificate: CE, FCC
  • Package List:

  • 1 x DS213 Mini DSO
  • Documents:

  • Datasheet
  • DS203 source code/firmware
