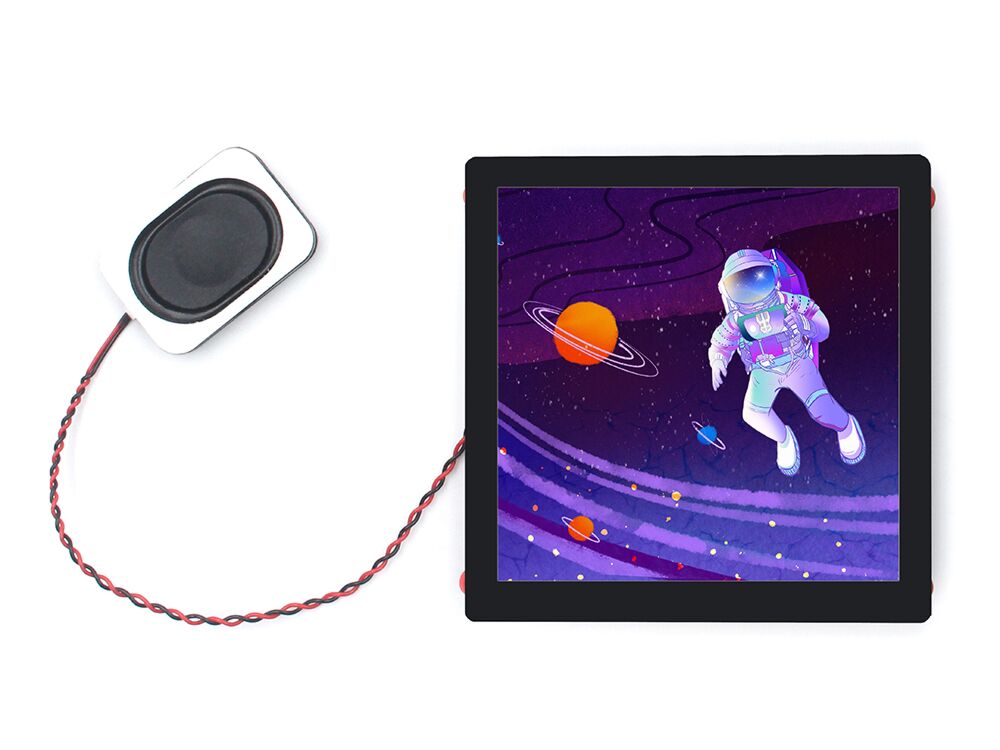

MaTouch_ESP32-S3 Parallel IPS with Touch 4.0" 480*480 ST7701

MaTouch_ESP32-S3 Parallel IPS with Touch 4.0" 480*480 ST7701

The Latest ESP32-S3 4.0 inch display with 480*480 resolution, it integrated display/ touch/ audio speaker/ Lipo charger, to make this product ideal for applications such as IoT controlling, electronic photo frame, etc.

This display features:
● 4 inch RGB IPS display, it communicates with the controller ESP32S3 with 3SPI+RGB5/6/5 interface, with FPS >50;
● 5 points Touch;
● Onboard 16G SD card for storage;
● Lipo battery socket and charger, support any 3.7v lipo battery;
● On board speaker connector. This product is shipped with a 3 ohm 4w, 3528 speaker, the voice loud and clean, suitable for most applications;
● 2x Onboard Mabee connectors, support multiple Mabee/ Grove modules;

Specs:

  • Controller: ESP32-S3-WROOM-1, PCB Antenna, 16MB Flash, 8MB PSRAM, ESP32-S3-WROOM-1-N16R8
  • Wireless: WiFi& Bluetooth 5.0
  • LCD: 4.0 inch High Lightness IPS, 480*480
  • FPS: >50
  • LCD interface: RGB 5/6/5+ SPI, ST7701S
  • Touch Panel: 5 Points Touch, Capacitive
  • Touch Panel Driver: GT911
  • USB: Dual USB Type-C(one for USB-to-UART and one for native USB)
  • USB to UART Chip: CP2104
  • Audio: MAX98357A
  • Power Supply: USB Type-C 5.0V(4.0V~5.25V);3.7V Lipo battery
  • Button: Flash button and reset button
  • Mabee interface: 1*I2C;1*GPIO
  • MicroSD: Yes
  • Arduino support: Yes
  • Operation temperature: -40℃ to +85℃


  • LVGL Demo:


    It also supports LovyanGFX Lib Now!

    Reference:

  • Wiki
  • Github
  • Display Datasheet
  • ESP32-S3 Datasheet
