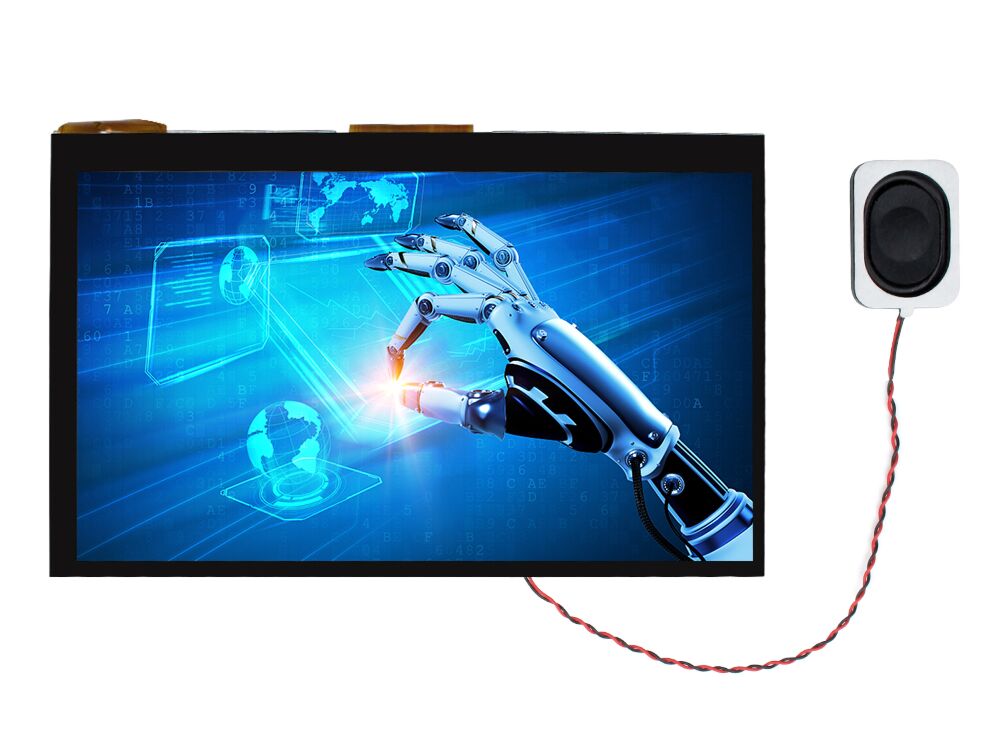

MaTouch ESP32-S3 Parallel TFT with Touch 7“

was $45.90 Special Price $39.02
This ESP32 S3 7-inch IPS display could be an ideal displayer& controller for IOT applications.
Availability: In stock
SKU
MTESPS37

This ESP32 S3 7-inch IPS display could be an ideal displayer& controller for IOT applications. It has 2 versions: High-resolution version 800*480, and Ultra High-resolution version 1024*600; Display on both versions is IPS, and the display effect is beautiful, together with 5 points capacitive touch, great for applications such as home automation; There on-board SD card, to make it possible to record/play filed data. Also, there 2 Mabee/ Grove connectors, so the users can connect kinds of sensors to this board, to create personal prototype projects instantly.

MaTouch-7-Inch



Specs:

  • Controller: ESP32-S3-WROOM-1, PCB Antenna, 16MB Flash, 8MB PSRAM, ESP32-S3-WROOM-1-N16R8
  • Wireless: Wifi& Bluetooth 5.0
  • LCD: 7 inch High Lightness IPS
  • FPS: >30
  • Resolution: 800*480/1024*600
  • LCD interface: RGB 565
  • Touch Panel: 5 Points Touch, Capacitive
  • Touch Panel Driver: GT911
  • USB: Dual USB Type-C(one for USB-to-UART and one for native USB)
  • UART to UART Chip: CP2104
  • Power Supply: USB Type-C 5.0V(4.0V~5.25V)
  • Button: Flash button and reset button
  • Mabee interface: 1*I2C;1*GPIO
  • MicroSD: Yes
  • Arduino support: Yes
  • Type-C Power Delivery: Not Supported
  • Operation temperature: -40℃ to +85℃
  • Reference:

  • Wiki
  • Github
  • ESP32-S3 Datasheet
  • Screen touch coordinates calibration
