ESPlay Micro - Open Source ESP32 Game Console

ESPlay Micro - Open Source ESP32 Game Console

Update: Arduino Demos on ESPlay Micro V2

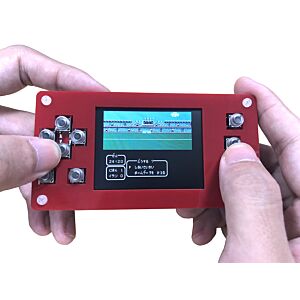

There we update the new version "ESPlay Micro V2", with the Acrylic Case added.

This is the production of the ESPlay Micro project: https://hackaday.io/project/166707-esplay-micro.

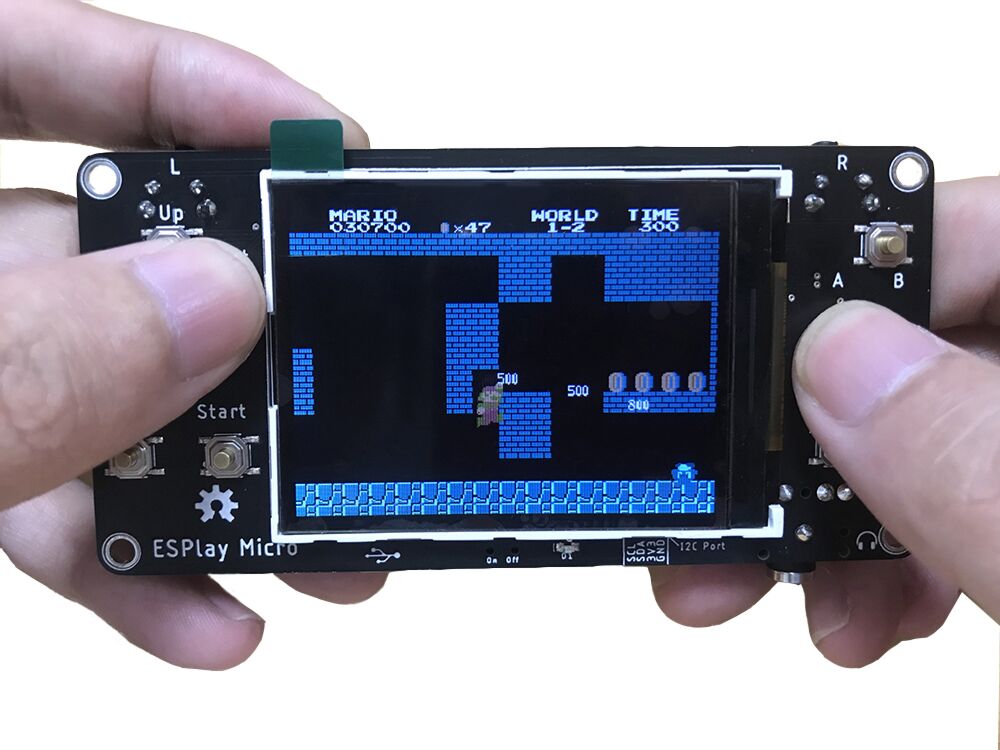

ESPlay Micro is a Handheld game console based on ESP32, which is from Espressif with great functionality and really mature on the software development side. This project is most inspired by Odroid Go and Pocketsprite, those devices are great and have well community support, but some of them had some issues that can be updated. Odroid Go had shared its SPI for both display and SD card, and they need patched esp-IDF version for it and SD card not work very well in SPI mode, Then Pocketsprite only has esp32 wroom module without psram and also without SD card support so limited portability for saving collection of games.

So that is what this ESPlay micro updated. With SD card support added, customers can collect many more games. High-quality sound I2S DAC also added to make It possible a good Walkman.

Note that there is only the PCBA, USB cable, and SD card, without case and battery, you will need a lipo battery, or USB charger, to start to play. Makerfabs is also designing some cases for this, but needs some more time for us to make a reasonable solution.


  • ESP32 WROVER, Dual-core processor with Integrated 4MB Flash + 4MB PSRAM
  • Integrated WIFI and Bluetooth 4 BLE
  • 2,4" ILI9341 TFT Panel
  • More button (expanded via PCF8574 I2C GPIO)
  • Micro SD slot connected to SDMMC Host in 1 Line Mode for saving GPIO pin
  • Integrated I2S DAC via UDA1334A
  • Integrated USB to Serial for programming and debugging using CH340C
  • Built-in TP4056 Li-Po charger
  • I2C port for expandable function
  • 3.5mm Headphone jack
  • Smaller Size, PCB only 100 x 50 mm
  • Note that there is only the PCBA, USB cable, and SD card, without outer case and battery, you will need a lipo battery, or USB charger, to start to play.

    Update on 20th, Nov 2019: We add the MP3 Mold of ESPlay Micro, Pls check the tutorial video of "How to add MP3 mold to ESPlay Micro":

  • The firmware used in this video
  • Package List:

  • 1 x ESPlay Micro
  • 1 x USB Cable
  • 1 x SD Card
  • Useful Links:

  • ESPlay Micro Firmware Collections
  • Official Release for ESPlay Micro Hardware
  • Game Sources:

  • Default Games
  • After downloading the games, put the games into the SD card to start to play games.
  • More Games
