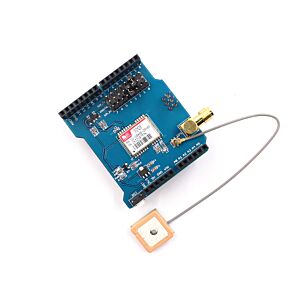

GPRS GSM GPS Shield (SIMCOM- SIM808)

$26.80
Availability: In stock
SKU
OAS808SIM

This GPRS/GSM/GPS Shield based on the SIMCom SIM808 all-in-one cellular phone module. Compares to the SIM900 Shield, the SIM808 Shield integrates the GPS function, which makes it more convenient and cost-effective for mobile applications such as cargo monitoring, that you can add location-tracking, voice, text, SMS, and data to your project.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail, you can read our PCB Design and PCBA Turnkey Solution.

Features:

  • Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)
  • Fully-integrated GPS
  • Make and receive voice calls using a headset or an external 32Ω speaker + electret microphone
  • Send and receive an SMS message
  • AT command interface with "auto baud" detection
  • Send and receive GPRS data (TCP/IP, HTTP, etc.)
  • GPS L1 C/A code
  • 22 tracking /66 acquisition channels
  • Tracking: -165 dBm
  • Cold starts : -148 dBm
  • Time-To-First-Fix:Cold starts-32s (typ.),Hot starts-1s (typ.),Warm starts-5s (typ.)
  • Accuracy: approx 2.5 meters
  • Dimensions: 68mm*53mm*23mm
  • Package List:

  • 1 x GPRS GSM GPS Shield (SIMCOM- SIM808)
  • 1 x GPRS GSM antenna
  • 1 x GPS antenna
  • Documents:

  • Schematic
  • SIM800 Series_AT Command Manual
  • SIM800 Series_GNSS_Application Note
  • SIM808 GPRS GSM GPS user's manual
  • Demo code
  • Wiki
