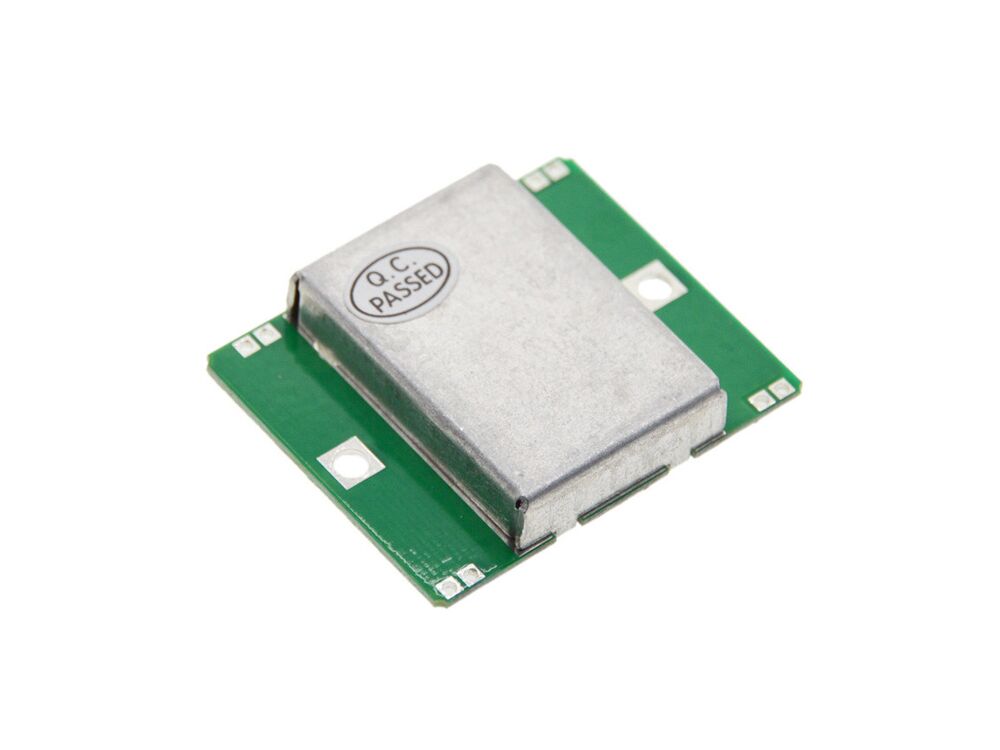

This is a Microwave moving object detector that is designed by the Doppler Radar principle.
It is mainly used in automatic door control, safety guard systems, automatic video control systems, etc. This module uses a 10.525 GHz band to detect moving.
Doppler Principle: Doppler theory based on time, when radio waves encounter an object in the moving process will be reflected when the waves, the frequency of the reflected wave will hit the object with the movement to change state. If the radio waves encounter an object position is fixed, then the reflected wave frequency and transmitting frequency waves should be equal. If the object moves toward the launch, then the reflected waves will be compressed, which will increase the frequency of the reflected wave; otherwise, the reflected wave's frequency decreases.
Features:
The non-contact detection
Independent of temperature, humidity, noise, airflow, dust, light, etc., suitable for the harsh environment
Strong resistance to RF interference
The output power is small and did not constitute a hazard to the human body
Long-distance: the detection range of more than 20 meters
Specification: Launched
A transmitting frequency: 10.525 GHz
Frequency setting accuracy: 3MHz
Output power (minimum): 13dBm EIRP
Operating voltage: 5V 0.25V
Operating Current (CW): 60mA max., 37mA typical
Harmonic emission: <-10dBm
Average current (5% DC): 2mA typ.
Pulse width (Min.): 5uSec
Duty cycle (Min.): 1%
Specification: Receive
Sensitivity (10dB S / N ratio) 3Hz to 80Hz bandwidth: -86dBm
