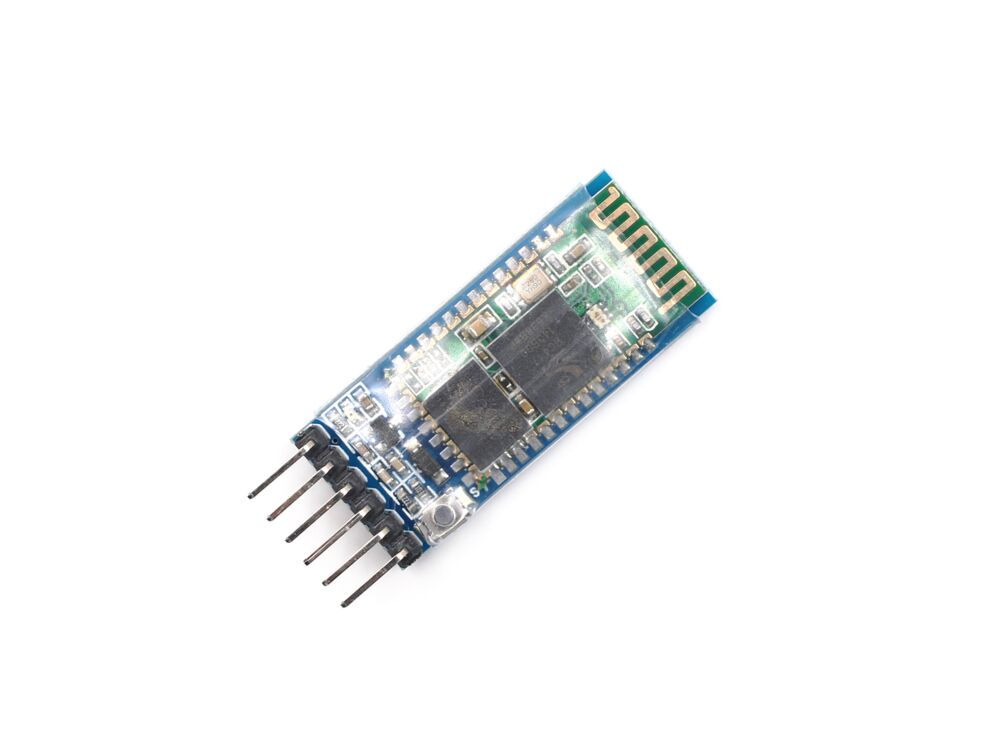

HC-05 Serial Bluetooth Module

Be the first to review this product

$4.90

Availability: In stock

SKU

MCB0005HC

Buy 6 for $3.00 each and save 39%

Details

HC-05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. The serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with a complete 2.4GHz radio transceiver and baseband. It uses the CSR Bluecore 04-External single-chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).

Features:

Typical -80dBm sensitivity

Up to +4dBm RF transmit power

Low Power 1.8V Operation, 1.8 to 3.6V I/O

UART interface with programmable baud rate

With integrated antenna

Default Baud rate: 38400, Data bits:8, Stop bit:1, Parity: No parity, Data control: has.

Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.

Auto-pairing PINCODE: ”0000” as default

Package List:

1 x HC-05 Serial Bluetooth Module

Documents:
