UART TTL GPRS/GSM Module

UART TTL GPRS/GSM Module

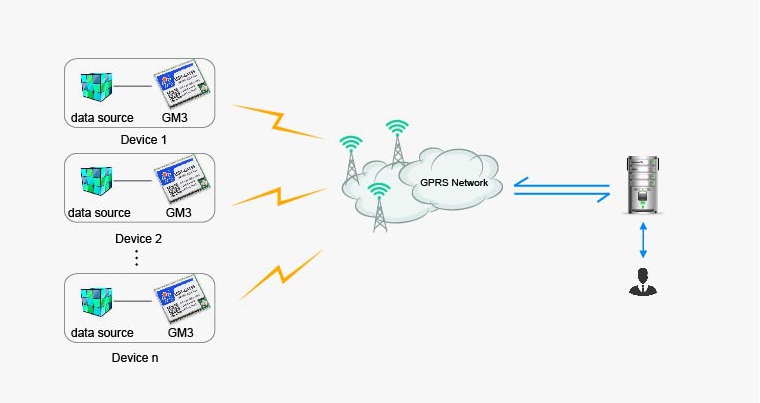

USR-GPRS232-7S3 is a Low Cost UART TTL GPRS/GSM Module, based on USR-GM3 gprs module. Clients can use the product to realize bidirectional transparent transmission from serial port to network through simple AT command. Features of Low Cost Gsm Modules.

Features:

  • Input Voltage: DC 5 ~ 16 V
  • Working Current: Average: 35 ~ 48mA, max: 394mA(12v)
  • Operating Temp.: -25 ~ 85°C
  • Storage Temp.: -40 ~ 125°C, 5 ~ 95% RH(no condensation)
  • Support GSM850/900,DCS1800/1900
  • Support GSM/GPRS and 2G/3G/4G card, but don’t support 3G/4G network
  • Support 2 sockets, Support TCP and UDP
  • 4KB cache for each of sockets, user can choose to cache data or not
  • Support register packet and heartbeat packet
  • Support setting parameters via SMS message

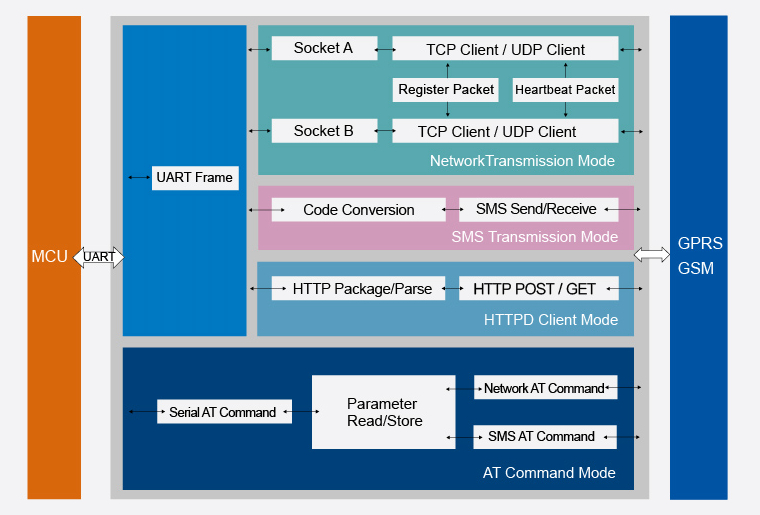

  • Support multi work modes: SMS transmission mode, network transmission mode and HTTPD mode
  • Support basic and extend AT command sets
  • Support class RFC2217, can dynamically modify serial parameter of module via network
  • Support flow control: RTS/CTS
  • Package List:

  • 1 x UART TTL GPRS/GSM Module
  • Documents:

  • Hardware Manual V1.2
  • Datasheet
  • Application Software
