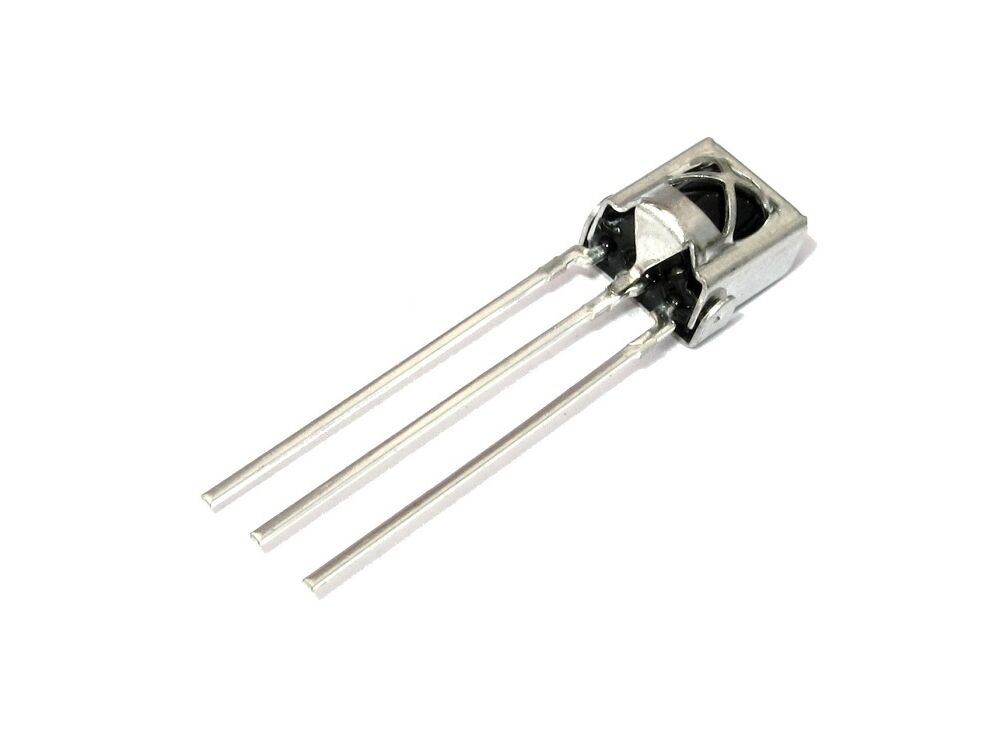

Infrared Receiver VS1838B

Infrared Receiver VS1838B
VS1838 includes high-speed high-sensitivity PIN photodiode and a low-power, high-gain Preamplifier IC, using epoxy plastic package design, the product has passed REACH and SGS certified as environmentally friendly products, as in the infrared remote control system receiver Uses.
There is a commonly used IR receiver, you can use it with the Infrared Remote Control build you remote control project. It is easy to use and low cost. It mates well with embedded electronics and can be used with common IR remotes.

Features:

  • Working Voltage :2.7V to 5.5V
  • Reception Distance : 23M
  • Reception Angle : ± 35 Degree
  • Low Level Voltage : 0.4V
  • High Level Voltage : 4.5V
  • Material : Plastic, Alloy
  • Color : Black, Silver Tone
  • Carrier frequence: 38KHz
  • Package List:

  • 1 x Infrared Receiver VS1838B
  • Documents:

  • Datasheet
  • Write a review

    Note: HTML is not translated!
        Bad           Good

    • Product Code: MCI18380B
    • Availability: In Stock
    • $0.07
    • 51 or more $0.06
