LoRa Radio Shield (433MHz)

Be the first to review this product

$16.90

Availability: In stock

SKU

OAS433MLR

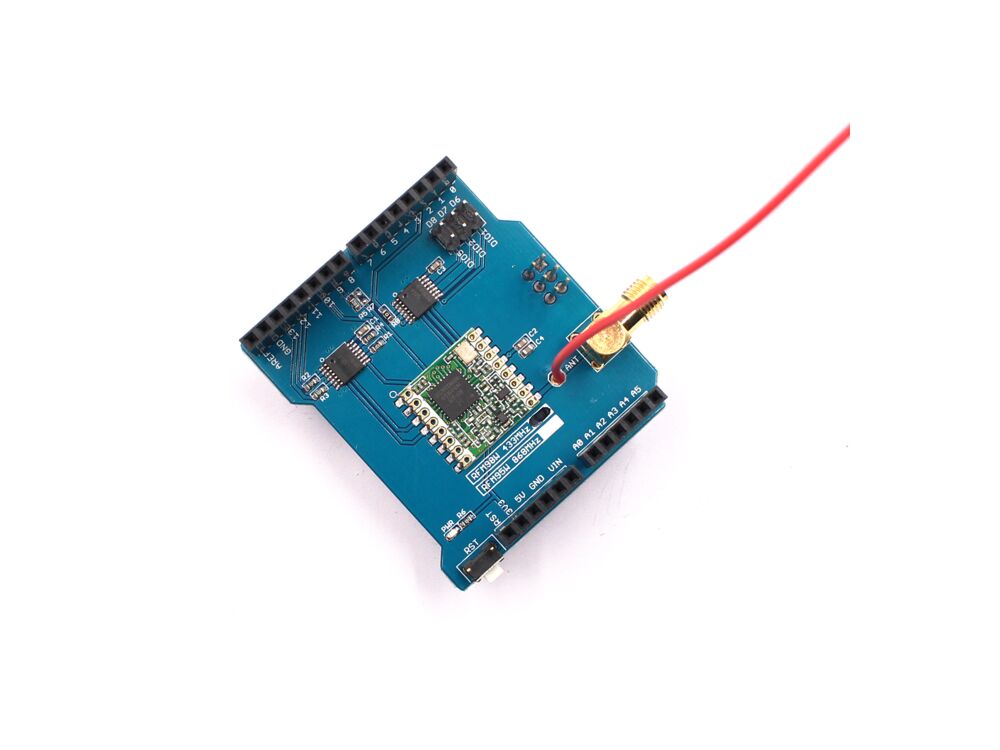

The LoRa shied based on the RFM98W 433MHz module, which is a long-range transceiver on an Arduino shield form factor and based on the Open source library. The LoRa Shield allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Features:

Compatible with 3.3v or 5v I/O Arduino Board

168 dB maximum link budget

+20 dBm - 100 mW constant RF output vs

+14 dBm high-efficiency PA

Programmable bit rate up to 300 kbps

High sensitivity: down to -148 dBm

Bullet-proof front end: IIP3 = -12.5 dBm

Low RX current of 10.3 mA, 200 nA register retention

Fully integrated synthesizer with a resolution of 61 Hz

Dimension: 53mm x47mm x 23mm

Package List:

1 x LoRa Radio Shield(433MHz)

Documents:

LoRa Radio Shield user's manual
