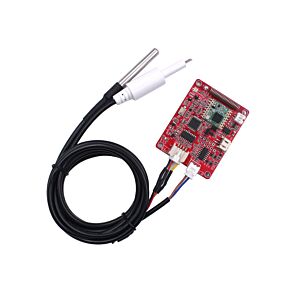

Lora TDS Sensor

Lora TDS Sensor

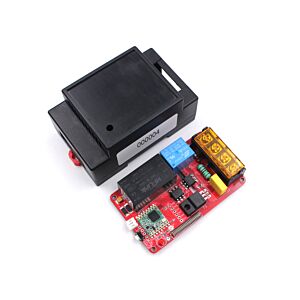

Lora AC Dimmer

Lora AC Dimmer

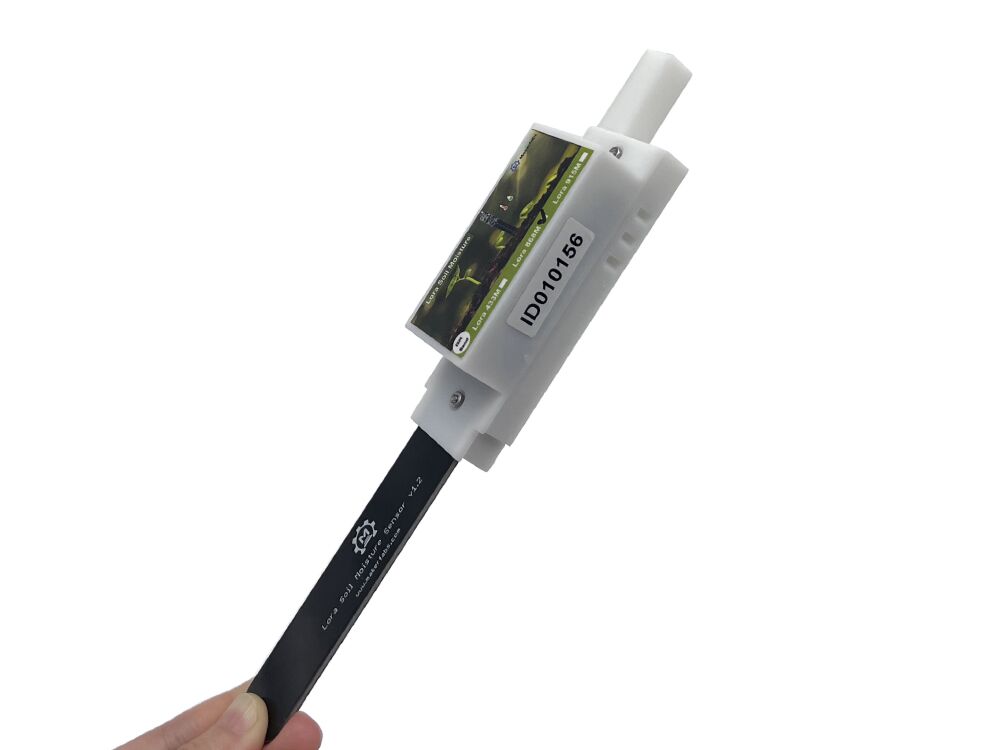

Lora Temperature/ Humidity/ Soil Moisture Sensor V3

$19.90
Availability: In stock
SKU
LSMS092DV3

Please very note this is based on Lora, but not LoRaWAN, pleae check this(https://www.makerfabs.com/blog/post/lorawan-soil-moisture-sensor-makerfabs) for the difference...

Makerfabs Lora Soil Moisture is a cheap& easy solution for smart agriculture. It is used for monitoring the relative moisture of the soil, the temperature, and the relative humidity of the air. It reports the data via Lora, to remote Lora receiver, and thus to create low-cost remote monitoring network easily. Itis based on Atmel's Atmega328P, it collects local air temperature/ humidity with sensor AHT10, and detect the soil humidity with capacitor-humility measurement, and transmits the local environment data to the gateway, with Lora communication, suit for applications for smart-farm, irrigation, agriculture, etc.

This Lora soil moisture sensor V3 is the upgrade version of the V1 and V2 version.
Lora-Soil-Moisture-Sensor-V3-What-Updated

Compared to the previous version, the V3 has the following great updates:
1. Much lower power consumption. With Makerfabs detailed design on hardware& firmware, the Lora moisture sensor can work at least 2 years, with 2xAAA batteries;
2. Unique ID for each device. Each Lora moisture sensor is programmed with a unique ID by default firmware, customers can get them on the surface. so the remote Lora receiver can identify them when multiple sensors are used;
3. Improved board Coating. J3166 water-proof paint protects the board better, not only makes the board water-proof but also solves the very problems of electrode corrosion, soil electrolysis and resulting in better accuracy and longer battery life.

Lora Soil Moisture be installed by plugging into the soil, either in a flowerpot or place near a plant, it monitors the air/soil status and reports the data to remote Lora receiver, with its unique ID, so the remote receiver can monitor/ identify the signal, and make alarms/actions, to help the plants.

Lora Temperature/ Humidity/ Soil Moisture Sensor is shipped out with Arduino pro-mini bootloader pre-loaded, and there's also Makerfabs default sketch programmed. Of course, Uses can re-program it with Arduino IDE, we suggest a standard USB2UART converter for this. Note that the DTR in the USB2UART converter is needed to connect to the "Reset" pin for Arduino sketch downloading, if there is no DTR, you may need to press the “reset” button manually in the downloading.

Makerfabs CP2104 USB to Serial Converter Arduino Programmer is strongly suggested for re-programming:

Programming-With-CP2104-USB-to-Serial-Converter-1Programming-With-CP2104-USB-to-Serial-Converter

Features:

  • Wireless Lora Transceiver
  • Soil Moisture Measurement based on capacitive Testing
  • Unique ID
  • Low power: 7.1uA when sleeping. 2 years working life with 2xAAA battery
  • Onboard AHT10 sensor to monitor air temperature and air humidity
  • Onboard Battery Voltage Measurement
  • Full Open Source- all hardware and software open at GitHub
  • Compatible with Arduino
  • Supply power voltage: 2.0V~3.3V
  • 3D printing case

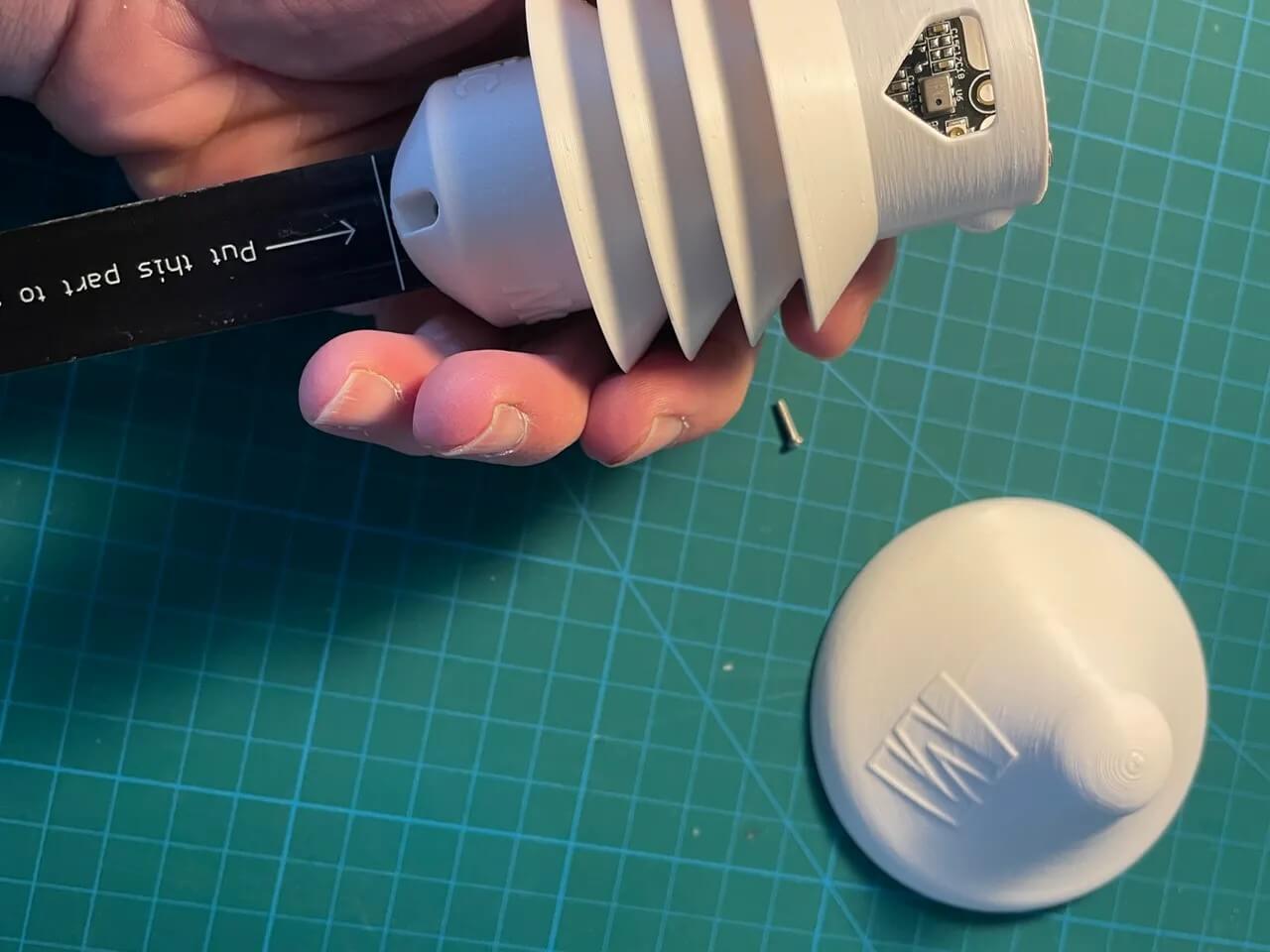

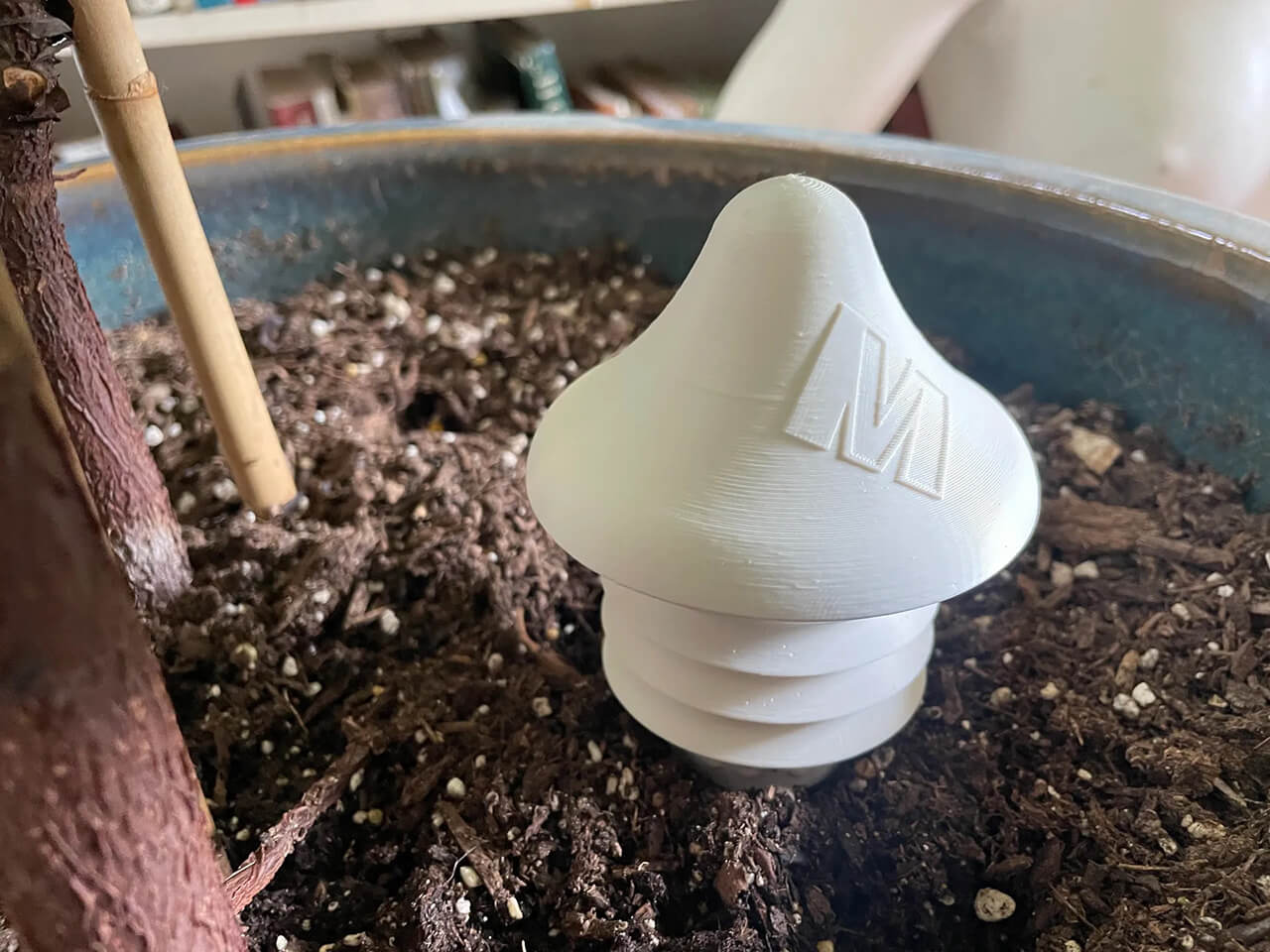

  • Thank you so much for the help of @Gristle King, he designed a really nice enclosure for our Lora soil moisture sensor V3, he also make it open, so you can download it freely on Printables.
    Enclosure-for-Lora-Soil-Moisture-SensorEnclosure-for-Lora-Soil-Moisture-Sensor-1

    Useful Links:

  • Wiki
  • GitHub
  • Lora Soil Moisture Sensor V3 - What Updated?
  • Project Learn 1 - Lora ESP32 Network
  • Project Learn 2 - Lora Moisture Sensor
  • Project Learn 3 - IoT Irrigation System
  • Project Learn 4_Soil Monitoring and Irrigation With Lora
