Mabee_DAC(GP8413)
$5.80
This Mabee DAC module is an I2C digital-to-analog signal conversion unit. It utilizes the GP8413 solution, provides high precision and accuracy in its performance. This chip can linearly convert a 15-bit digital value into two independent analog voltages of 0-10V. The output voltage error is only 0.2%, and it achieves linearity of up to 0.01%.
Availability:
In stock
SKU
MBGP8413

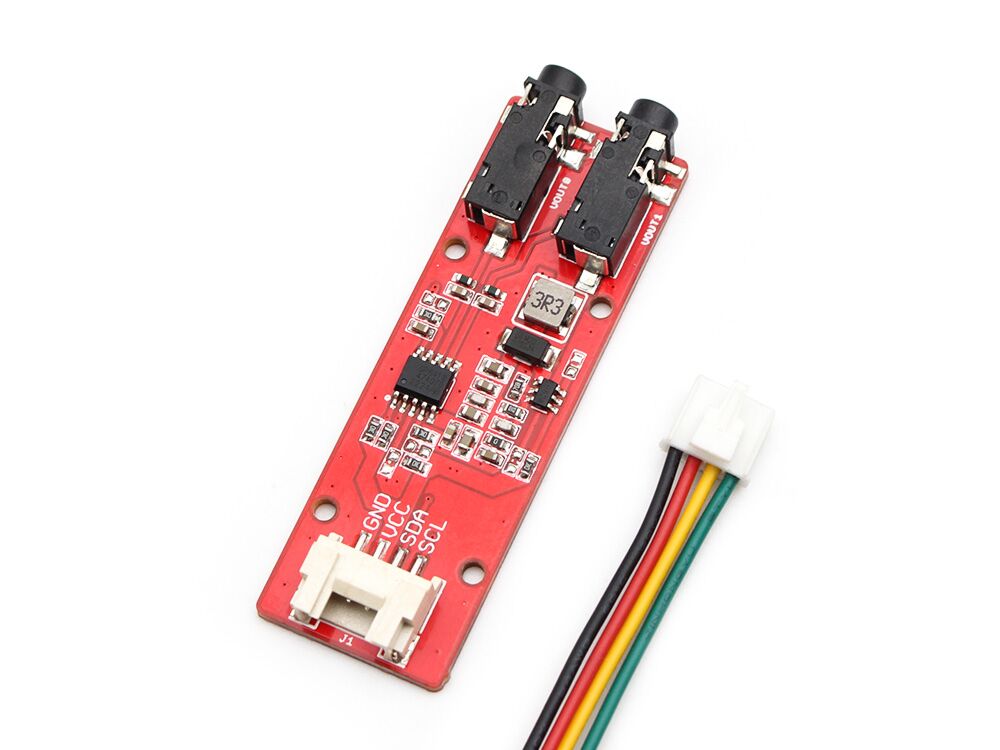

This Mabee DAC module is an I2C digital-to-analog signal conversion unit. It utilizes the GP8413 solution, provides high precision and accuracy in its performance. This chip can linearly convert a 15-bit digital value into two independent analog voltages of 0-10V. The output voltage error is only 0.2%, and it achieves linearity of up to 0.01%.
This Unit suits for applications such as general signal conversion, motor speed control, LED dimming, inverters, power supplies, and industrial analog signal isolation. It is a reliable solution for converting digital signals to analog, offering high precision, reliability, and expandability.
Includes
- 1x Mabee_DAC module
- 1x Mabee cable
Specification
- - Rresolution Ratio: 15Bit
- - I2C Serial Communication: 0x59 (default)
- - Maximum Output Voltage: 10V
- - Output Voltage Error: <0.2%
- - Output Voltage Linearity error: 0.01%
- - Operating Temperature: 0-40°C
- - Product Weight: 5g
