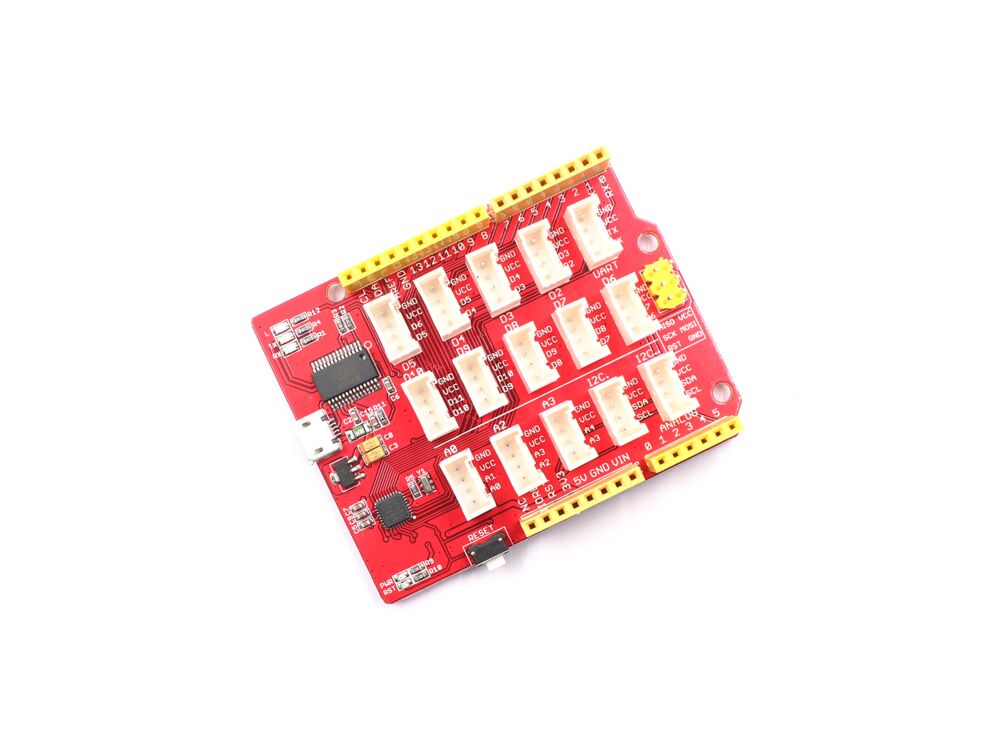

Maduino Grove

Maduino Grove

Maduino Grove is an Arduino Microcontroller development board, which is based on ATmega328P-MU and Arduino UNO bootloader. ATMEGA328P-MU is a high-performance, low-power 8-Bit AVR Microcontroller. Maduino Grove used an FT232 as a UART- to- USB converter. You can program the board via a Micro USB cable.

This mainboard breakout 9 digital I/O ports, 3 analog ports, 1 UART port, and 2 IIC ports with Grove interface, it is easy to use with Grove module, just directly plug and you can use them.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Features:

  • ATmega328P-MU microcontroller
  • Arduino UNO bootloader
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • ISP Header
  • Arduino UNO-R3 Shield Compatible
  • Micro USB programming and power supply
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB
  • RAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Dimension: 68mm x53mm x 11mm
  • Package List:

  • 1 x Maduino Grove
  • Documents:

  • Schematic
  • Wiki
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 29357
    • Brand: Makerfabs
    • Product Code: OAC0328MG
    • Availability: In Stock
    • $14.80

    Tags: Maduino Grove, Open Hardware
