Maduino Lora Radio (433M/868M/915M)

Maduino Lora Radio (433M/868M/915M)

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Note: This is the newest version.

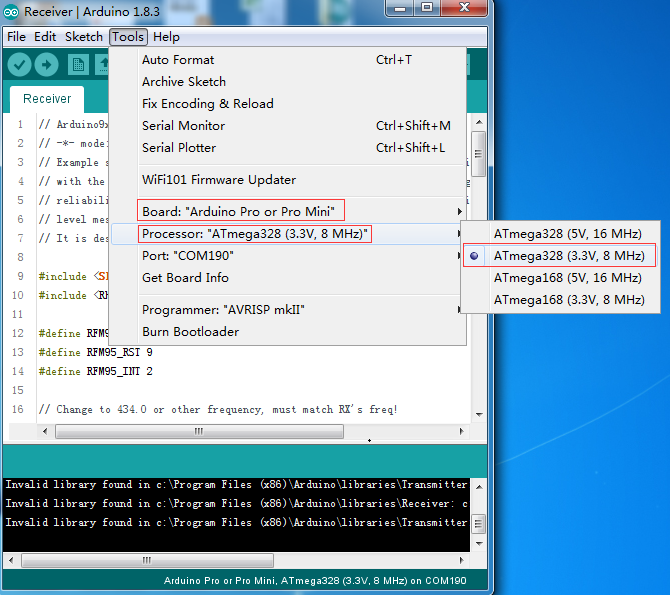

Maduino Lora Radio is a mainboard based on the ATmega328 and 433MHZ/868MHz/915MHz module. The LoRa Radio allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. We use the Arduino pro mini 3.3V 8MHz bootloader on this board and use the CP2104 as USB to serial to upload the code by Arduino IDE.

Features:

  • BAT Input Voltage: 3.4-4.2V
  • ATmega328: 8MHz, 32KB flash, 2KB SRAM
  • Integrated Power Control System
  • Interface: I2C/SPI/UART/20*GPIO
  • Arduino Compatible
  • Working Temperature: -40 – 85℃
  • Programmable bit rate up to 300 kbps
  • 127 dB Dynamic Range RSSI
  • Uses the License-free ISM band: "European ISM" @ 433MHz/868MHz/915MHz
  • +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)
  • ~100mA Peak during +20dBm transmit, ~30mA during active radio listening
  • Range of approx. 2Km, depending on obstructions, frequency, antenna, and power output
  • Package List:

  • 1 x Maduino Lora Radio (433M/868M/915M)
  • Documents:

  • Schematic
  • Datasheet
  • Demo code(868M)
  • Demo code(433M)
  • Wiki
