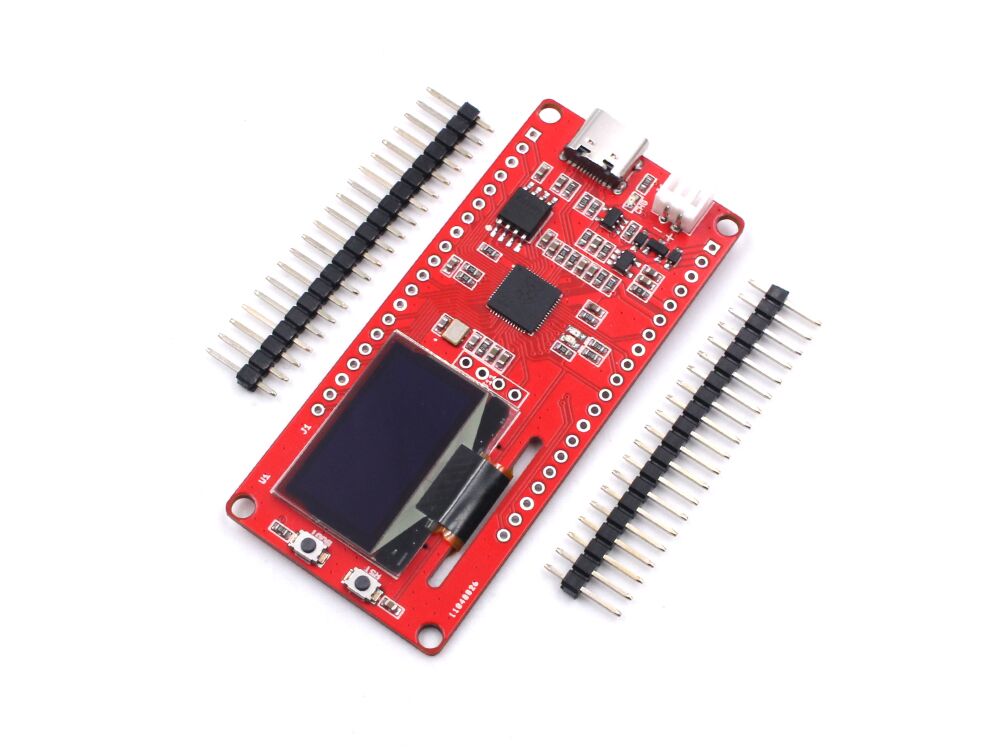

MaPIE RP2040 0.96" OLED

New MaPIE RP2040 0.96" OLED

This MaPIE RP2040 OLED is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It is based on Raspberry Pi's RP2040 microcontroller chip, as same as that on Raspberry Pi Pico. Users can develop applications based on Raspberry Pi's C/C++ SDK, or the MicroPython/ Arduino.

Compares to Raspberry Pi Pico, this board has absolutely the same breakout pins as Pico/Pico W, so users can easily transfer the software/application between Pico with this board. There is a 0.96” OLED on the board, and Lithium battery connector/ charger, to make this board more suitable for field applications developments.

MaPIE-RP2040-OLED-vs-Pico

Features:

  • P2040 microcontroller Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 16MB on-board Flash memory
  • USB-C connector
  • 0.96" 128*64 OLED
  • Lithium battery connector/ charge
  • Same pins breakout as Pico: 26 x multi-function GPIO pins; 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
  • Useful Links:

  • Wiki
  • GitHub
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 538
    • Product Code: MAPIEOLED
    • Availability: In Stock
    • $7.90
