Matouch 1.28" ToolSet_LED Strip Controller

Be the first to review this product

was $26.80 Special Price $21.44

It has been on of the most popular Colorful R/G/B LED solution for decoration/ outdoor advertising.

Availability: In stock

SKU

M128TLS06

Details

The WS2812 addressable LED strips come in a few flavors, which vary by size and sealant. You can get them in either 1m or 5m lengths, high density, or side emitting. For each length the strip, they can be either covered by a waterproof sealant or left bare. The most advantage of WS2812 LED is that they can be easily controlled with 1 one-wire, and all the LED addressable and controllable, on both color and lightness. It has been on of the most popular Colorful R/G/B LED solution for decoration/ outdoor advertising.

This Matouch 1.28 ToolSet_LED Strip Controller could be a good tool to drive the WS2812 strips/panels. It is based on MaTouch 1.28”, provide a friendly UI for users to control/set WS2812 blink mode. If you’d like to make your room/ Christmas tree blinky immediately, this controller could be a good solution.

This product features:

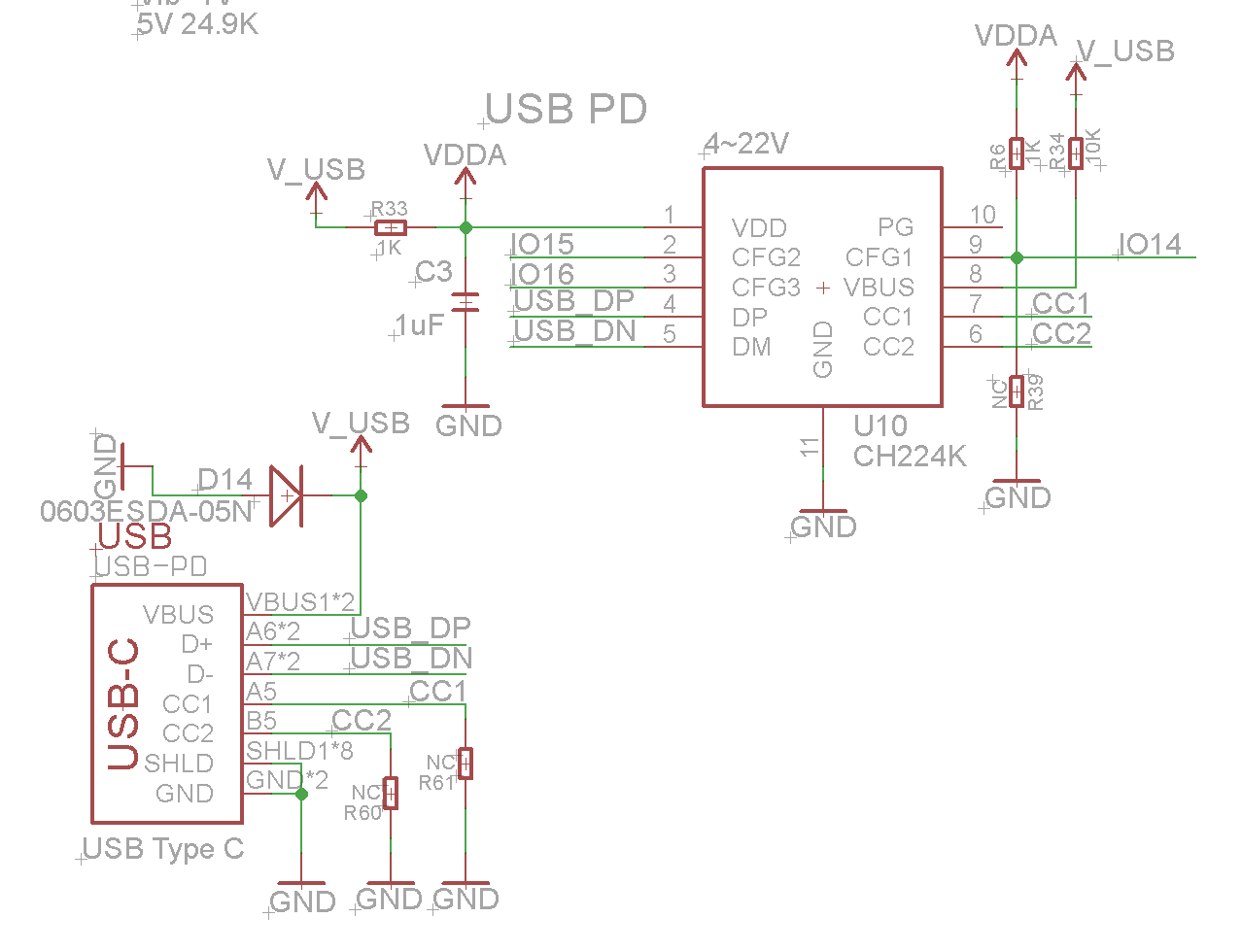

1. PD power. This device is equipped with PD circuit, that with a PD power, you can free to select 5v/9v/12v, to drive different WS2812 with different power requests.

2. Control 2 Channel WS2812 strip simultaneously, with Max 300 pcs, max current 6A；

3. Current measurable. With this, users can monitor the driver current in time;

4. Multiple driver spec adjustable

Compares to ordinary cheap WS2812 LED driver box, the most reasons we design this controller are:

Ordinary cheap WS2812 LED driver box, the control mode/color is fixed and can not change , but with this module , for example you can select any color with R/G/B;

This project is an open hardware, all the related source open, so users can enjoy to learn to use ESP32 programming/ IPS Touch screen usage/LVGL design, or design personal UI..

With PD power/current measurement, this controller could be a good handy tool for files applications installation/debugging.

This module is shipped with a 1m 60pcs WS2812 strip, with power voltage 12V, user can free to purchase other alike strip/panels such as:

MaTouch 1.28” ToolSets are series of ESP32-based products mainly consist of MaTouch 1.28” controller and kinds of functional expansion such as Dimmer/ Relay Controller/ Motor Driver, etc. It’s designed as tools to control/drive these actuators directly while also keep open hardware/software, which make it possible for users’ remaking and integration to other field projects.
