Matouch 1.28" ToolSet_RGB LED Matrix
RGB LED Matrix are widely used in such as taxi cabs displaying animations or video advertisements, normally it uses HUB75 / HUB75E protocol, that is cascadable to create a larger display.
This Matouch 1.28" ToolSet_RGB LED Matrix composed of ESP32S3 with 1.28” touch and 64*64 LED Matrix, it works with Arduino Lib ESP32-HUB75-MatrixPanel-I2S-DMA, with Makerfabs preloaded firmware, it displays files such as text/ gif by simply inputting the files into SD card. All the firmware/hardware open, making this product can be either a good toolset for displaying , or a platform for learners further development with ESP32.
MaTouch 1.28” ToolSets are series of ESP32-based products mainly consist of MaTouch 1.28” controller and kinds of functional expansion such as Dimmer/ Relay Controller/ Motor Driver, etc. It’s designed as tools to control/drive these actuators directly while also keep open hardware/software, which make it possible for users’ remaking and integration to other field projects.
- - ESP32S3 16MB Flash, 8MB PSRAM / 1.28” 240*240 display /Capacitive Touch;
- - UI designed by LVGL/ Sqareline;
- - Arduino V2.3.4 compatible Source Code
- - Hardware/Software Open Source;

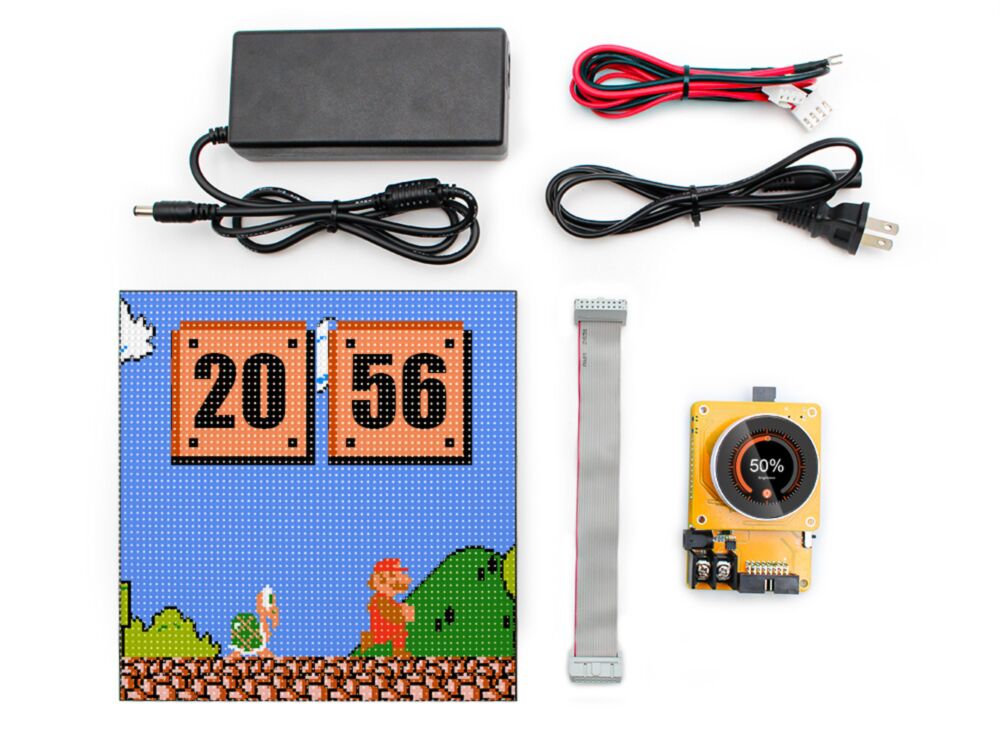

This Matouch 1.28" ToolSet_RGB LED Matrix is shipped with all the modules needed to create a quick display project, include:
- 1．Matouch 1.28" ToolSet_RGB LED Matrix Driver, with preloaded Makerfabs’ software;
- 2. 64x64 RGB LED Matrix - 3mm Pitch, 4,096 bright RGB LEDs arranged in a 64x64 grid at a 3mm pitch.
- 3. 5V-6A AC/DC Power Adapter, to support Max 6 Matrix Panels. (for more Panels, separated Power supply maybe needed.)
