Matouch 1.28" ToolSet_Timer Switch Relay

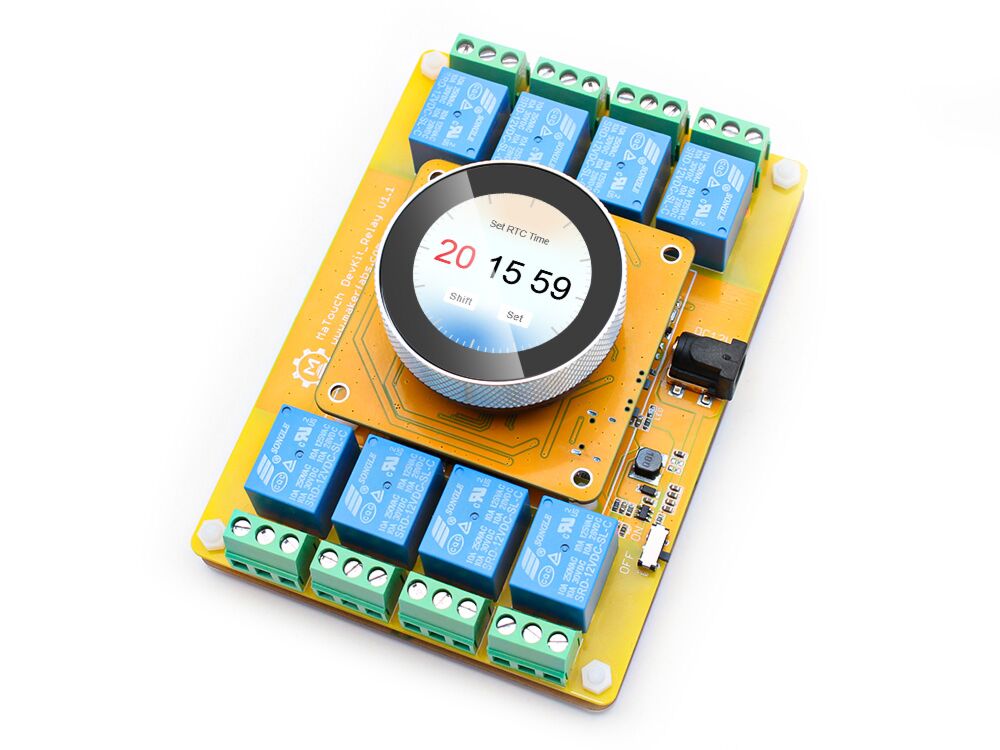

This timer switch relay is based on on-board RTC and 8 channel of 2 A relays, for projects that need timer switching. With MaTouch 1.28”, the 8 channel relay can be either manually control or set to timer switch for auto controlling, support Max 5 groups of timer.
This Timer Switch is preloaded Makerfab’s firmware/UI, intends to easy usage for common end-users, as a ready-to-use timer switch. Besides, as all the hardware/firmware resource open, this module also a good platform for engineers remaking, such as remoting controlling via IFFFF/ home assistant, with the core controller ESP32S3 Wifi functions.
MaTouch 1.28” ToolSets are series of ESP32-based products mainly consist of MaTouch 1.28” controller and kinds of functional expansion such as Dimmer/ Relay Controller/ Motor Driver, etc. It’s designed as tools to control/drive these actuators directly while also keep open hardware/software, which make it possible for users’ remaking and integration to other field projects.
- - ESP32S3 16MB Flash, 8MB PSRAM / 1.28” 240*240 display /Capacitive Touch;
- - UI designed by LVGL/ Sqareline;
- - Arduino V2.3.4 compatible Source Code
- - Hardware/Software Open Source;
Features:
- - Input Voltage: DC11V~14V, normally DC12V.
- - On board optocoupler isolation.
- - Operation temperature: -20℃ to +70℃.
- - Multi-Relay Control: Support 8-channel independent relay control. 240V/2A

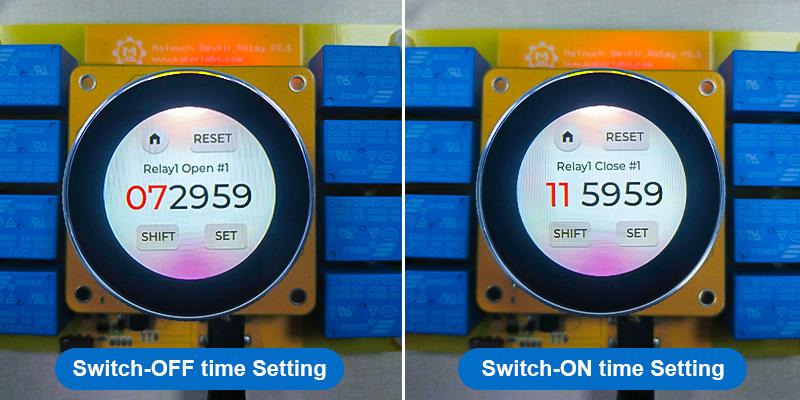

- - Timing function: Each relay supports 5 sets of scheduled on/off settings.
- - Power-down protection design: Timing settings with power-down preservation function.
Useful Links:
Please note: If using with high voltages (> 24V) use care and common sense! High voltages require experience, and are only for use by engineers who are comfortable with guidelines and know how to use them safely!
