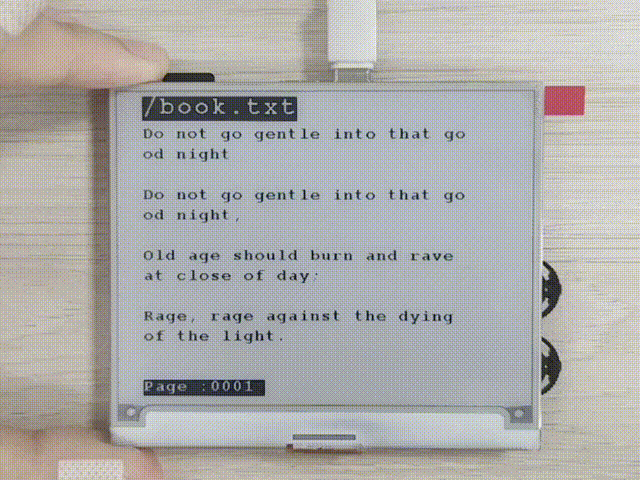

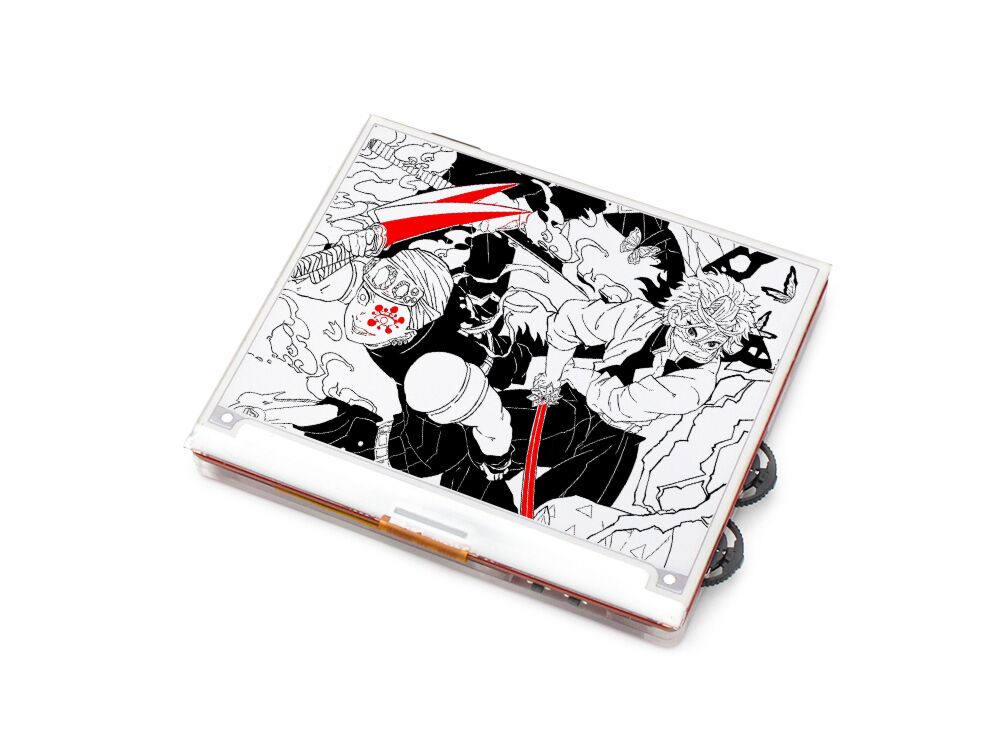

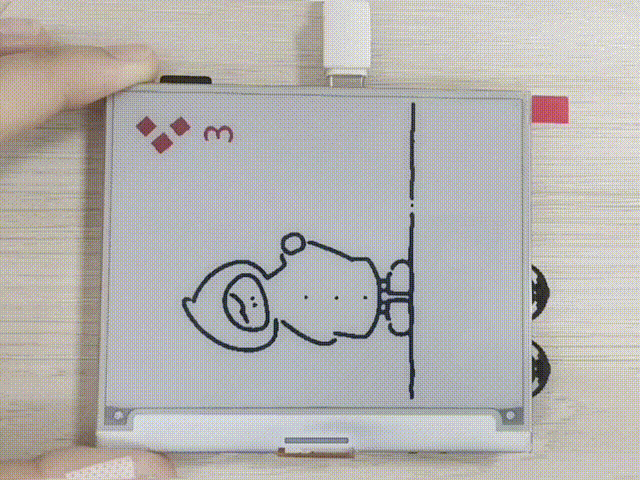

MaTouch ESP32-S3 4.2" Triple-Color E-Ink
Our MaTouch ESP32-S3 4.2 Triple-Color E-Ink display is equipped with the SE0420MN11-A0 model, which uses microcapsule electrophoretic technology to show images. This technology works by applying an electric field to charged particles that are suspended in a clear fluid. The particles move to the sides of microcapsules and become visible by reflecting ambient light, similar to traditional printed paper.
The display has an active area of 400 x 300 pixels and full display capabilities of triple color: 1 bit B/W/R. In addition, there are the following advantages：
- - The device keeps displaying the last content for an extended period even after power down.
- - It consumes ultra-low power and requires power only for refreshing.
- - It uses an SPI interface and demands less IO pins, leaving extra pins for I2C and GPIO expansion.
- - It supports a 3.7V battery or a 5.0V Type-C power supply.
- - The device has two buttons that provide sliding up, sliding down, and pressing functions to enable six interactive points.
- - The device features an ESP32S3 controller with WiFi and Bluetooth support.
LCD Specs:
- - PART NUMBER：GDEH042Z21
- - SIZE：4.2 inch
- - TYPE：Dot Matrix
- - IC：UC8276
- - RESOLUTION：400x300
- - OUTLINE SIZE(mm)：91x77x1.25
- - ACTIVE SIZE(mm)：84.8x63.6
- - PIXEL PITCH(mm)：0.212x0.212
- - OPERATING TEMP.：0°C~40°C
- - STORAGE TEMP：-25°C~60°C
- - CONNECTOR：24 Pin FPC
- - MAX GRAYSCALE：2
- - COLOR：Black, White, Red
- - INTERFACE：SPI
- - FULL REFRESH(S)：15
- - POWER CONSUMPTION OF THE REFRESH(MW)：8.91
- - STANDBY POWER CONSUMPTION (mW)：0.0056
Features：
- - Controller: ESP32-S3
- - Wireless: WiFi& Bluetooth 5.0
- - Flash:16MB Flash
- - PSRAM:8MB
- - EXPANSION INTERFACE: 1 * GPIO, 1 * I2C
- - MICRO SD: Yes
- - BUTTON: Flash button and reset button
- - USB: 1 * USB to UART, 1 * USB_native
- - INPUT VOLTAGE: 3.7V Battery or 5.0V Type-C
- - Arduino support: Yes
Based on ESP32, Makerfabs can also help to customize those boards with customer's special requests. Pls contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.
