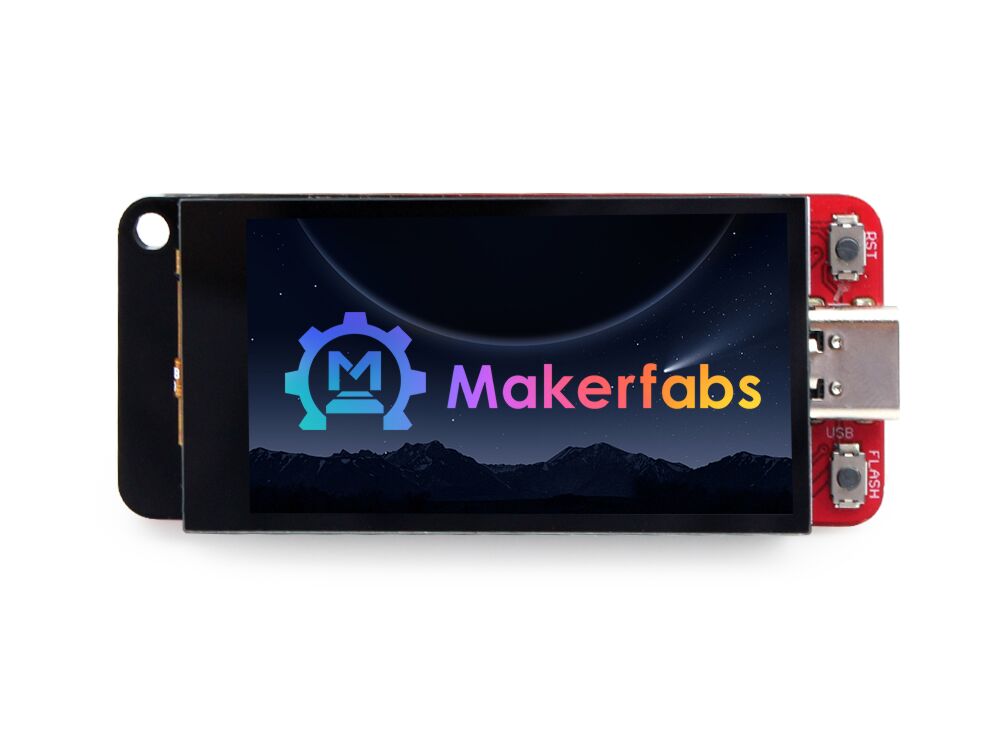

MaTouch_ESP32-S3 Parallel TFT with Touch 1.9" ST7789V2

New MaTouch_ESP32-S3 Parallel TFT with Touch 1.9" ST7789V2

This cute 1.9" display is for IoT applications, it features Wifi/ WiFi& Bluetooth 5.0 + BT mesh, with ESP32-S3R8 Dual-core LX7 microprocessor.

This display can be powered by USB or directly by lipo battery, there on-board charger. Also there 2 expansion connectors, with UART/ADC. The colorful display resolution is 320*170, with capacitive touch, which could be a proper solution for IoT applications.
MaTouch-1-9-Inch

Specs:

  • Controller: ESP32-S3
  • Wireless: WiFi& Bluetooth 5.0
  • LCD: 1.9", 320x170 resolution, driver ST7789V2
  • LCD interface: 8 bit 8080
  • Touch Panel Driver: CST816D
  • USB: USB Native, Type-C
  • Power Supply: USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery
  • Button: Flash button and reset button
  • Expansion interface: 2 (UART/ADC)
  • MicroSD: Yes
  • Arduino support: Yes
  • MicroPython support: Yes
  • Operation temperature: -40℃ to +85℃
  • Useful Links:

  • Wiki
  • Github
  • ESP32S3 Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 1099
    • Brand: Makerfabs
    • Product Code: E32S319ST
    • Availability: In Stock
    • $27.80
