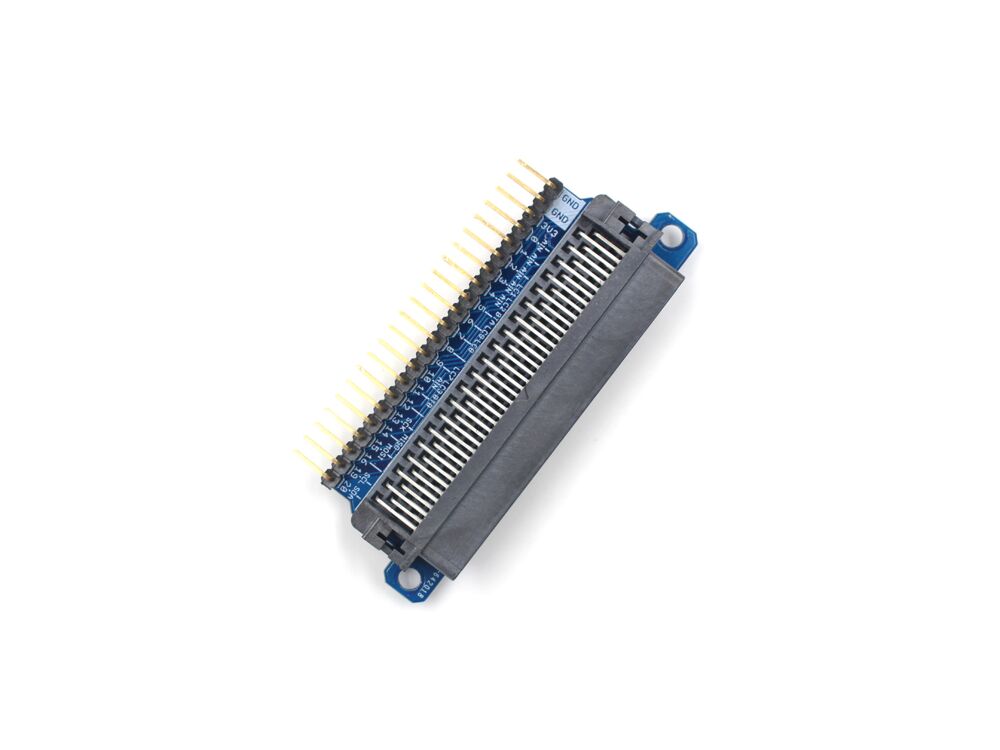

Micro Bit Breakout v1.0

The micro bit is an entry-level development board designed by BBC for teens programming education. It supports the PXT graphical programming interface developed by Microsoft and can be used under Windows, MacOS, IOS, Android, and many other operating systems without downloading the compiler.

The micro: bit Breakout is a board that connects to the BBC micro: bit and expands the capabilities of the development platform by providing access to more pins and allowing for connections to the I2C and SPI buses. This breakout board for the micro: bit’s edge connector allows intermediate and advanced users to connect the micro: bit to breadboards and other sensors, motors, LEDs, and more!

The micro: bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro: bit breakout we have broken out all 21 GPIO pins, power, and ground to a pre-soldered 2.54mm header. With this breakout, you will be able to unlock the full potential of your micro: bit!

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. For more detail you can read our PCB Design and PCBA Turnkey Solution.

Package List:
