Nextion NX3224T028 2.8 Inch Man-machine Interface HMI Screen

$21.50
Availability: In stock
SKU
MDL24T028

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the Internet of things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.

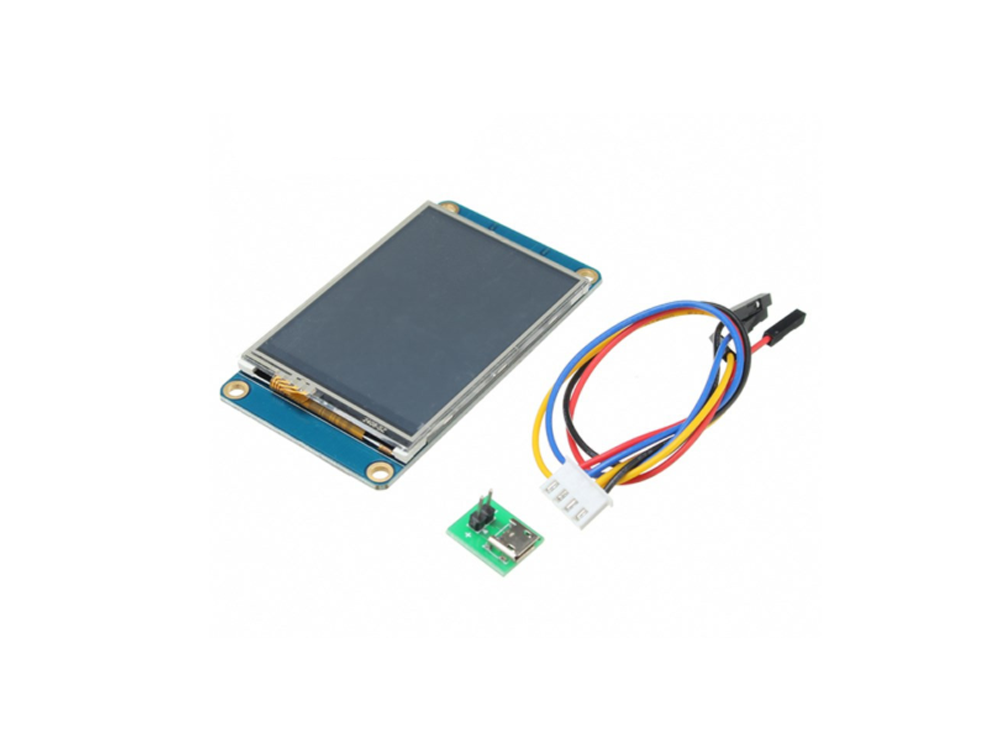

NX3224T028 is a powerful 2.8'' HMI, which is a member of the Nextion family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features:

  • 320 x 240 Resolution
  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
  • RGB 65K true to life colors
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • Onboard micro-SD card for firmware upgrade
  • Visual Area: 57.6mm(L)×43.2mm(W)
  • Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
  • 5V65mA power consumption
  • Generic using for all Arduino or Raspberry Pi project
  • Package List:

  • 1 x Nextion NX3224T028 2.8 Inch Man-machine Interface HMI Screen
  • Documents:

  • Nextion editor
