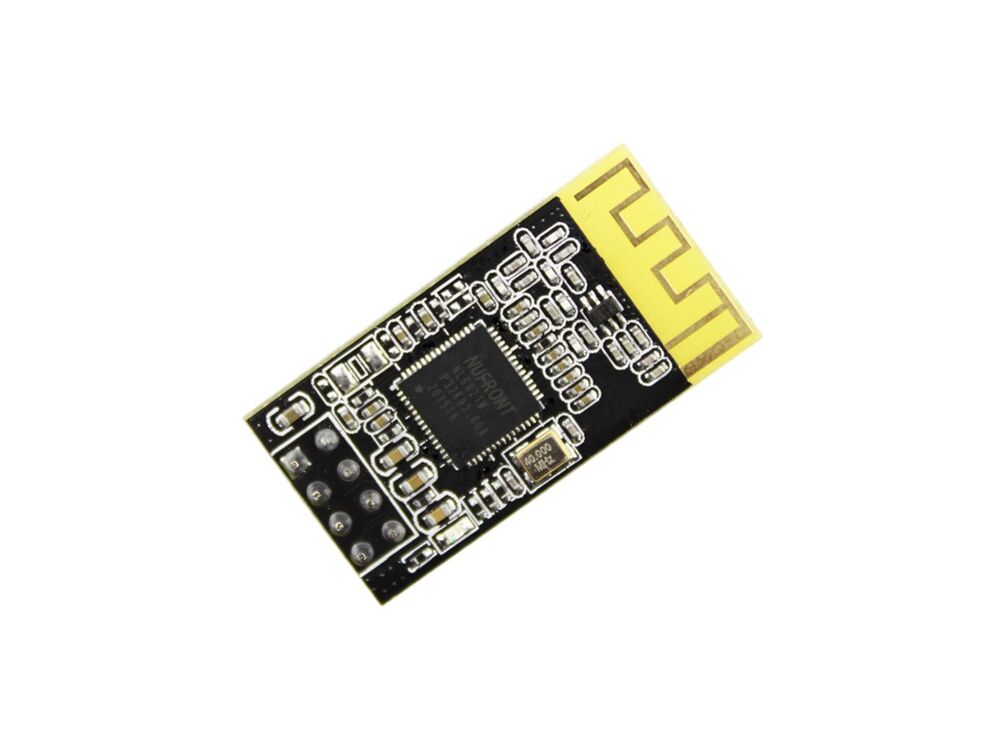

NL6621-Y1 2.4G UART to WiFi Module

$2.90
Availability: Out of stock
SKU
MCC6621NL

This is a serial Wi-Fi module based on NL6621M. It is TTL serial communication interface and its parameters can be set by AT command.

NL6621M is a SOC of high integration, dedicated to wireless LAN products of high data throughput and low cost. It integrates MCU, MAC, 1T1R baseband, and RF transceiver with amplifier onto one chip.

NL6621M supports 802.11b/ g n and Wi-Fi direct(SDIO network card mode),BSS STA,soft AP,WiFi protection setup. Also, it supports WMM-PS and WPA/ WPA2 security protocols. NL6621M can both serve as a slave controlled by the main processor and an independent WLAN device needing no other processors. The general-purpose interfaces it supported include QuadSPI, standard SPI, I2C, UART, GPIO, I2S audio, and PWM audio.

NL6621M can be directly connected to plentiful peripheral equipment such as a sound box,pick-up head,flash memory and LCD, etc. Plentiful internet protocols such as TCP/ IP, UPD and HTTP, etc. have been integrated to nl6621m. With high-performance transmission over the radio, plentiful interfaces, and protocols, NL6621M is the best choice for monolithic chip solutions such as wireless audio, wireless video, wireless wisdom household, and wireless medical treatment, etc.

Features:

  • Working frequency: 2.4GHz
  • Wireless criteria: 802.11 b / g / n
  • Wireless Network Mode: station / softAP / SoftAP + station
  • Working voltage: 3.3V
  • Working current: 200mA(MAX)
  • Sleep current: 3.7mA
  • Onboard ports: UART TTL, which can be used as a control interface or GPIO. I2C, which can externally connect to the EEPROM storage chip
  • Serial port baud rate: 115200 (default), can be modified to other values by AT command
  • Antenna: Built-in PCB antenna
  • Package List:

  • 1 x NL6621-Y1 2.4G UART to WiFi Module
