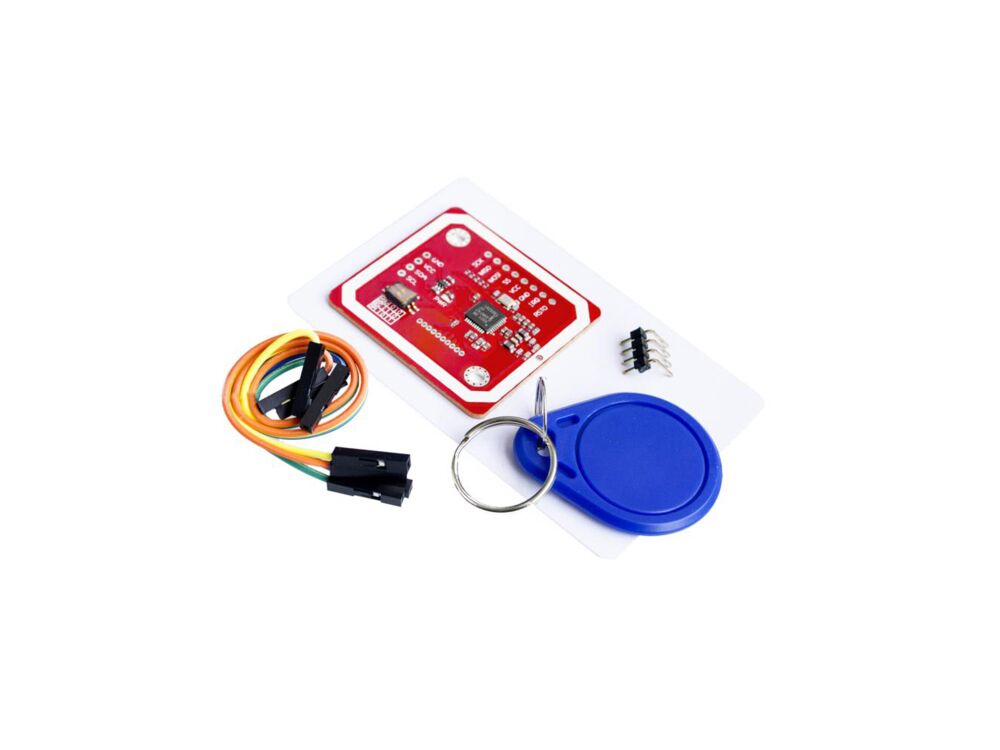

PN532 NFC Module V3

Be the first to review this product

$7.80

Availability: In stock

SKU

MCR532PNR

Buy 51 for $4.50 each and save 42%

Details

NFC is a popular technology in recent years. We often heard this work while smartphone companies such as Samsung or HTC introduce their latest high-end phones. Almost all the high-end phones in the market support NFC.

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters.

For electronics geeks, we also want to use NFC technology to make our own things. So we build this NFC RFID module. This module is built around NXP PN532. NXP PN532 is very popular in the NFC area. And the company offers many technology documents to help developers. We developed this module based on the official document. And to make things easier, we also build a library for this module.

We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play. With our Arduino Sensor Shield, it is very easy to plug and play. However, if users want to use other interfaces such as UART or SPI, this module also makes it easy to connect those pins.

Features:

Small dimension and easy to embed into your project

Support I2C, SPI, and HSU (High-Speed UART), easy to change between those modes

Support RFID reading and writing, P2P communication with peers, NFC with Android phone

Up to 5cm~7cm reading distance

On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI

Arduino compatible, plugin and play with our shield

RFID reader/writer supports

Mifare 1k, 4k, Ultralight, and DESFire cards

ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)

Innovision Jewel cards such as IRT5001 cards

FeliCa cards such as RCS_860 and RCS_854
