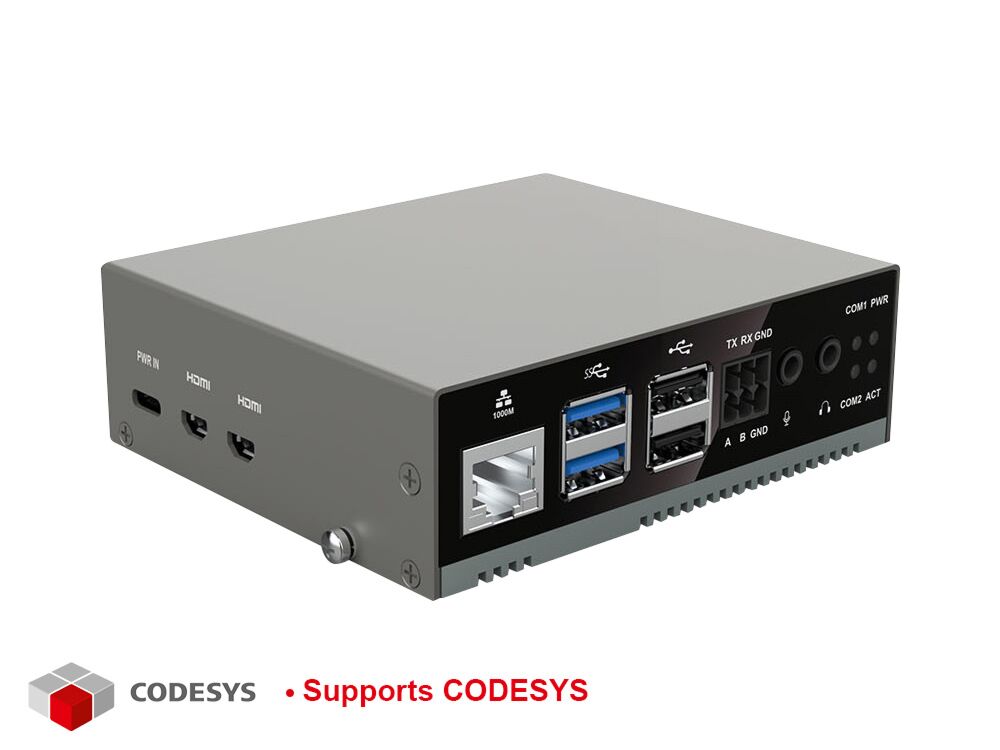

Raspberry Pi 5 Based Industrial Computer
$161.00
Availability:
In stock
SKU
IPC3020-04001-P
| ED-IPC3020 Series Features | |
| Functions | Parameters |
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| RAM | 4GB and 8GB LPDDR4X-4267 SDRAM are optional |
| Storage | Support Micro SD Card and M.2 NVMe SSD storage expansion |
| Video | Dual 4Kp60 HDMI display output |
| Audio | Stereo audio input and output with separately 3.5mm audio jack |
| Interface | 1 x Gigabit ethernet port with optional PoE, 2 x USB 3.0, 2 x USB 2.0, 1 x RS232, 1 x RS485 and 1 x Buzzer |
| Power Input | 5V DC power input via USB-C, support ON/OFF power button |
| Other | Built-in RTC, support SuperCAP and CR1220 battery backup |
| Operating Temperature | -25°C ~ 60°C |
| Mechanical | 102.8mm(W) x 89.5mm(D) x 32.5mm(H), 300g Fanless design with high-quality metal case and big heatsink, providing excellent cooling performance |
Document Download
Explore in-depth reviews and coverage of ED-IPC3020 product by leading international media outlets! Click the links to learn more：
Specifications
| System | |
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| VPU | 4Kp60 HEVC decoder |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 4GB and 8GB LPDDR4X-4267 SDRAM are optional |
| Storage | Micro SD Card Slot, supporting to select the 00GB/32GB/64GB SD card M.2 NVMe SSD, supporting to select the 00GB/128GB/256GB SSD |
| Software | |
| Operating System | - Raspberry Pi OS(Desktop) 32-bit - Raspberry Pi OS(Lite) 32-bit - Raspberry Pi OS(Desktop) 64-bit - Raspberry Pi OS(Lite) 64-bit |
| Front I/O | |
| Audio OUT | 1 x Audio Output(HPO), 3.5mm audio jack connector(green), stereo audio output. |
| Audio IN | 1 x Audio Input(LINE IN), 3.5mm audio jack connector(red), supporting stereo audio input. |
| RS485 | 1 x RS485 port, 3-Pin 3.5mm spacing phoenix terminals with 120Ω terminal resistor. The signal is defined as GND/A/B. |
| RS232 | 1 x RS232 port, 3-Pin 3.5mm spacing phoenix terminals, the signal is defined as GND/TX/RX. |
| USB 2.0 | 2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps. |
| USB 3.0 | 2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps. |
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network. PoE can be supported through expansion module. |
| Rear I/O | |
| SD Card Slot | 1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card. |
| Side I/O | |
| HDMI | 2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz. |
| Power | 1 x power in port, USB Type-C connector, supporting 5V/5A DC power input. |
| Buttons and Indicators | |
| ON/OFF | 1 x power button, which is used to turn on and turn off the device. |
| PWR | 1 x red power indicator, which is used to check the status of device power-on and power-off. |
| ACT | 1 x green system indicator, which is used to check the working status of device. |
| COM1~COM2 | 2 x green UART indicators, which is used to check the communication status of UART port. |
| Internal I/O | |
| 5V 1A | 1 x DC OUT, 3-Pin 2.0mm spacing WTB connector, supporting 5V 1A output. These pins are defined as GND/5V/GND, reserving to provide power supply for extended LCD. |
| Speaker | 1 x PA output, 4-Pin 1.5mm spacing WTB connector, dual channel stereo audio output. It can be extended to connect two 4Ω 3W stereo speakers, these pins are defined as R+/R-/L+/L-. |
| MIPI CSI/DSI | 2 x MIPI CSI/DSI ports, 2-Lane CSI/DSI signal. They are reserved for connecting extended LCD screen, supporting I2C touchscreen and backlight adjustment. |
| M.2 M | 1 x M.2 M port, M.2 M Key connector, using to connect SSD and other fast peripherals. It compatibles with M.2 2230, M.2 2242 and M.2 2260, supporting to boot the OS from SSD. |
| Expansion Performance | |
| RTC | RTC with SuperCAP and CR1220 battery backup, which can ensure that the system clock is not affected by device power-off. Note：A CR1220 battery is provided by default in China. |
| Buzzer | A tip or an abnormity can be configurated according to actual application, which realizes the alarm function. |
| Electrical Characteristics | |
| Input Voltage | 5V DC |
| Maximum Power Consumption | 25W(Max) |
| Mechanical Characteristics | |
| Dimensions | 102.8mm x 89.5mm x 32.5mm (WxDxH) |
| Weight | 300g |
| Installation | Placing on the desk |
| Wireless | |
| Wi-Fi | Dual-band 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Environmental & Regulatory | |
| Operating Temperature | -25°C ~ 60°C |
| Storage Temperature | -25°C ~ 60°C |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035/ EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |

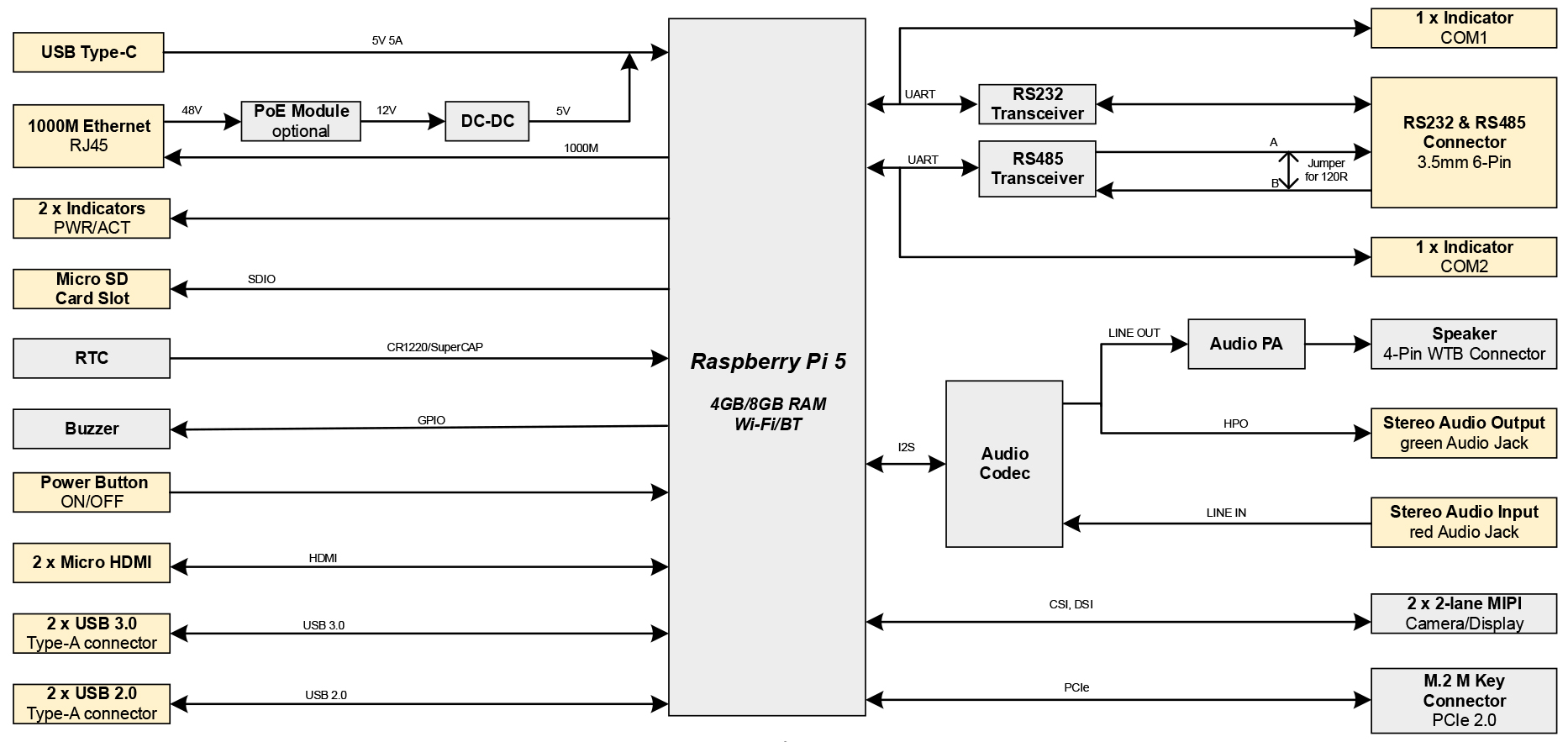

System Block Diagram

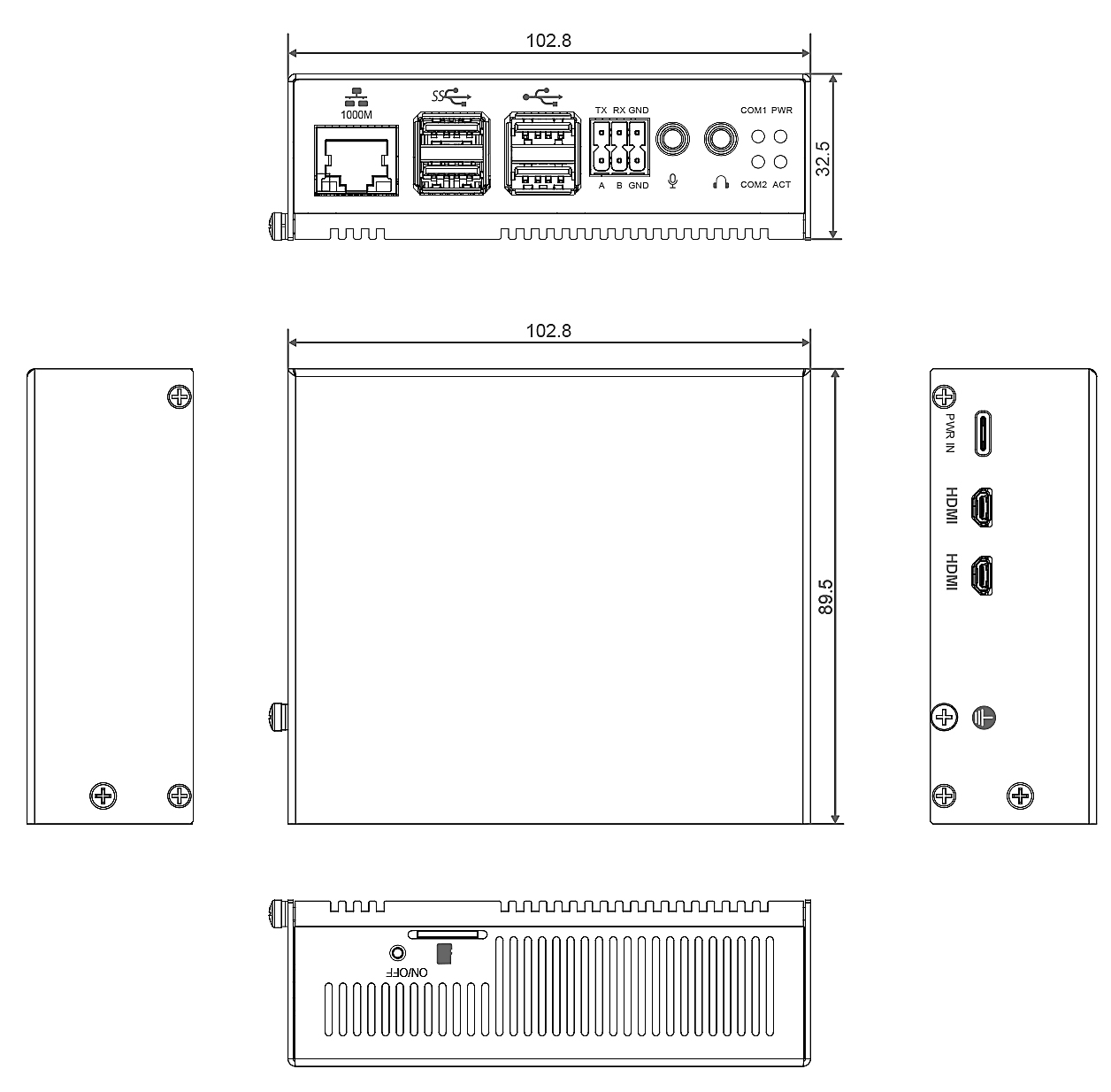

Dimension Unit:mm

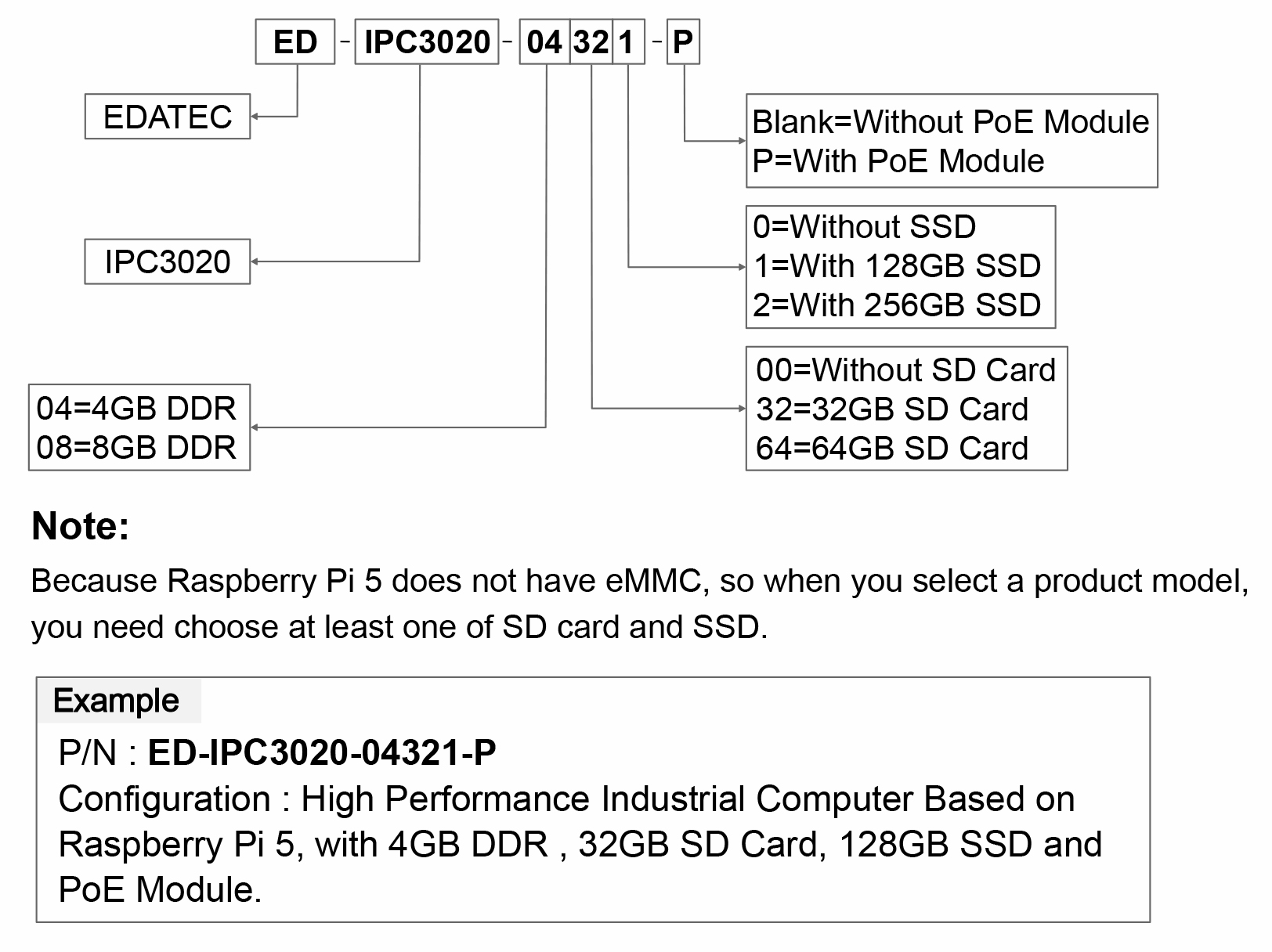

Order Information
