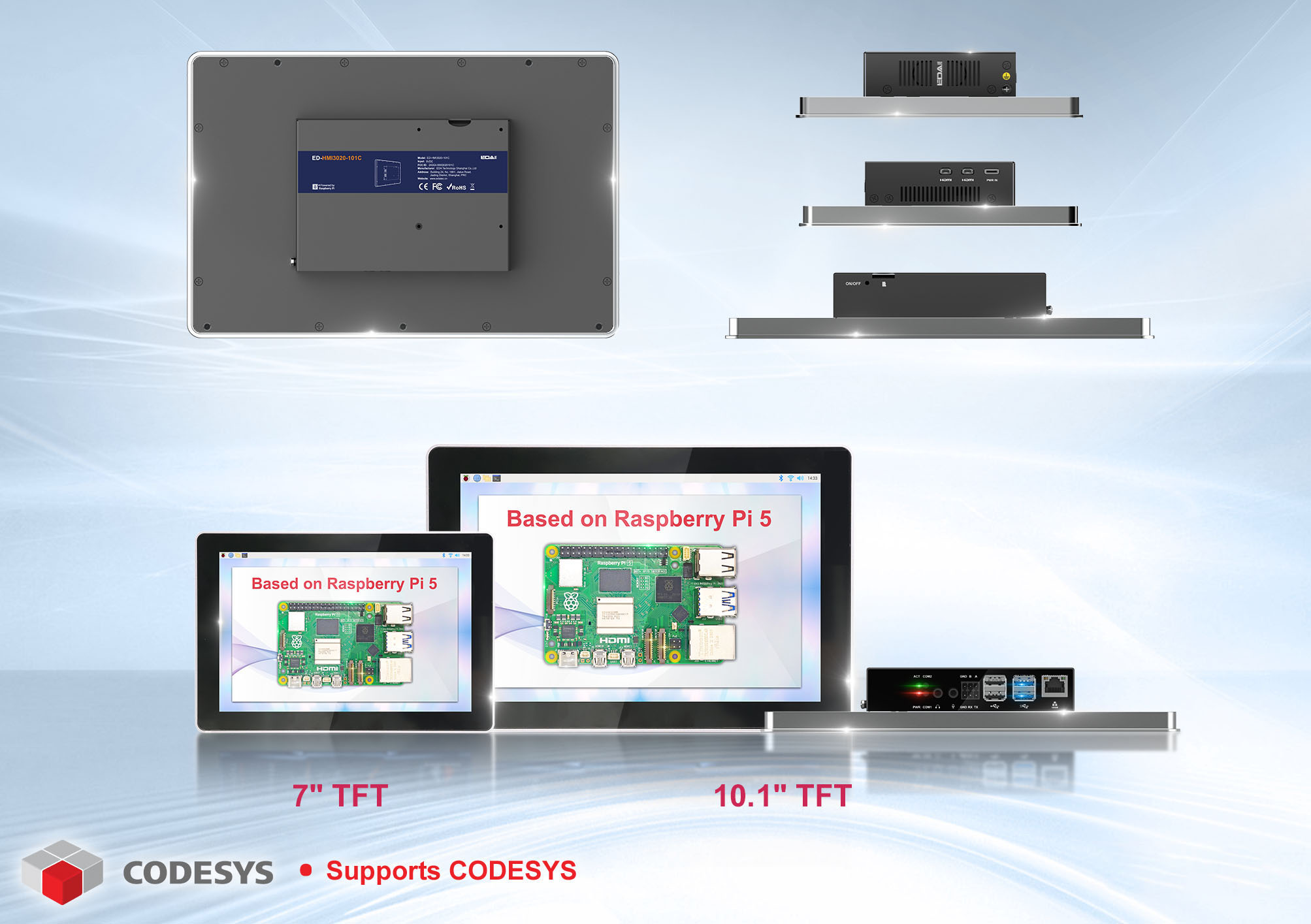

Raspberry Pi 5 Based Industrial Panel PC HMI 7"/10"
$195.00
Availability:
In stock
SKU
HMI3020-xxx-04320
| ED-HMI3020 Series Features | |
| Functions | Parameters |
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU |
| RAM | 4GB/8GB LPDDR4 RAM optional |
| Storage | 32GB/64GB SD card optional, 128GB/256GB SSD optiona |
| Wireless | 2.4GHz & 5GHz dual-band WiFi and Bluetooth 5.0/BLE |
| Video | Dual 4Kp60 HDMI display output |
| Audio | Stereo audio input and output with seperately 3.5mm audio jack, built-in speaker |
| Interface | 1 x Gigabit ethernet port, 2 x USB2.0, 2 x USB3.0, 1 x RS232, 1 x RS485, 1 x Audio In, 1 x Audio Out |
| Power Input | 5V DC power input via USB-C, support ON/OFF power button |
| Camera | 8-megapixel front camera is optional |
| Other | Built-in RTC, support SuperCAP and CR1220 battery backup |
| Operating Temperature | -20℃~60℃ |
| Mechanical |
Aluminum CNC + sheet metal case, fanless design, providing excellent cooling performance |
| ED-HMI3020 Series Selection Guide | |||||||||
| Model No. | LCD Size | Resolution | Aspect ratio | # of Colors | Luminance (cd/m2) |
Viewing Angle (H/V) |
Multi-touch (# of points) |
Dimensions (mm) |
Weight (g) |
| HMI3020-070C | 7" | 1024x600 | 16:9 | 16.7M | 400 | 160°/160° | 10 | 188mm x 123mm x 40.6mm | 900g |
| HMI3020-101C | 10.1" | 1280x800 | 16:10 | 16.7M | 250 | 160°/160° | 10 | 258mm x 172mm x 39.6mm | 1000g |
Document Download
Explore in-depth reviews and coverage of ED-HMI3020 by leading international media outlets! Click the links to learn more：
Specifications
| System | |
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| VPU | 4Kp60 HEVC decoder |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 4GB and 8GB LPDDR4X-4267 SDRAM are optional |
| Storage | Micro SD Card Slot, supporting to select the 00GB/32GB/64GB SD card M.2 NVMe SSD, supporting to select the 00GB/128GB/256GB SSD |
| Software | |
| Operating System | - Raspberry Pi OS(Desktop) 32-bit - Raspberry Pi OS(Lite) 32-bit - Raspberry Pi OS(Desktop) 64-bit - Raspberry Pi OS(Lite) 64-bit |
| Front I/O | |
| Camera |
Built-in 8-megapixel front camera(optional). |
| Side I/O | |
| Audio OUT | 1 x Audio Output(HPO), 3.5mm audio jack connector(green), stereo audio output. |
| Audio IN | 1 x Audio Input(LINE IN), 3.5mm audio jack connector(red), supporting stereo audio input. |
| Speaker | 1 x PA output, built-in a 4Ω 3W speaker. |
| RS485 | 1 x RS485 port, 3-Pin 3.5mm spacing phoenix terminals with 120Ω terminal resistor. The signal is defined as GND/A/B. |
| RS232 | 1 x RS232 port, 3-Pin 3.5mm spacing phoenix terminals, the signal is defined as GND/TX/RX. |
| USB 2.0 | 2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps. |
| USB 3.0 | 2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps. |
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network. |
| SD Card Slot | 1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card. |
| HDMI | 2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz |
| Power | 1 x power in port, USB Type-C connector, supporting 5V/5A DC power input. |
| Buttons and Indicators | |
| ON/OFF | 1 x power button, which is used to turn on and turn off the device. |
| PWR | 1 x red power indicator, which is used to check the status of device power-on and power-off. |
| ACT | 1 x green system indicator, which is used to check the working status of device. |
| COM1~COM2 | 2 x green UART indicators, which is used to check the communication status of UART port. |
| Internal I/O | |
| M.2 M | 1 x M.2 M port, M.2 M Key connector, using to connect SSD and other fast peripherals. It compatibles with M.2 2230, M.2 2242 and M.2 2260, supporting to boot the OS from SSD. |
| LCD | ||
| ED-HMI3020-070C | ED-HMI3020-101C | |
| LCD Size | 7.0" TFT | 10.1" TFT |
| Resolution | 1024 x 600 | 1280x800 |
| Colors | 16.7MB | 16.7MB |
| Active Area | 154.21mm(H) x 85.92mm(V) | 216.576mm(H) x 135.36mm(V) |
| Backlight | LED | LED |
| MTBF | >30000h | >30000h |
| Luminance | 400cd/m^2 | 250cd/m^2 |
| Contrast Ratio | 800:1 | 1000:1 |
| Response Time | 30ms | 30ms |
| Viewing Angle(CR≥10) | 85°(L)/85°(R)/85°(U)/85°(D) | 80°(L)/80°(R)/80°(U)/80°(D) |
| Touch Screen | |
| Type | Multi-point Capacitive Touch Screen |
| Transmittance | ≥85％ |
| Connection Method | COF |
| Controller Interface | I2C |
| Driver Support | Linux |
| Multi-touch | 10 points |
| Surface Hardness | 6H |
| Expansion Performance | |
| RTC | RTC with SuperCAP and CR1220 battery backup, which can ensure that the system clock is not affected by device power-off. Note：A CR1220 battery is provided by default in China. |
| Buzzer | A tip or an abnormity can be configurated according to actual application, which realizes the alarm function. |
| Electrical Characteristics | |
| Input Voltage | 5V DC |
| Maximum Power Consumption | 25W(Max) |
| Mechanical Characteristics |
||
| ED-HMI3020-070C | ED-HMI3020-101C | |
| Dimensions | 188mm x 123mm x 40.6mm (WxDxH) | 258mm x 172mm x 39.6mm (WxDxH) |
| Weight | About 900g | About 1000g |
| Installation | Embedded front installation | Embedded front installation |
| Wireless | |
| Wi-Fi | Dual-band 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Environmental & Regulatory | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -25℃~60℃ |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035/ EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |

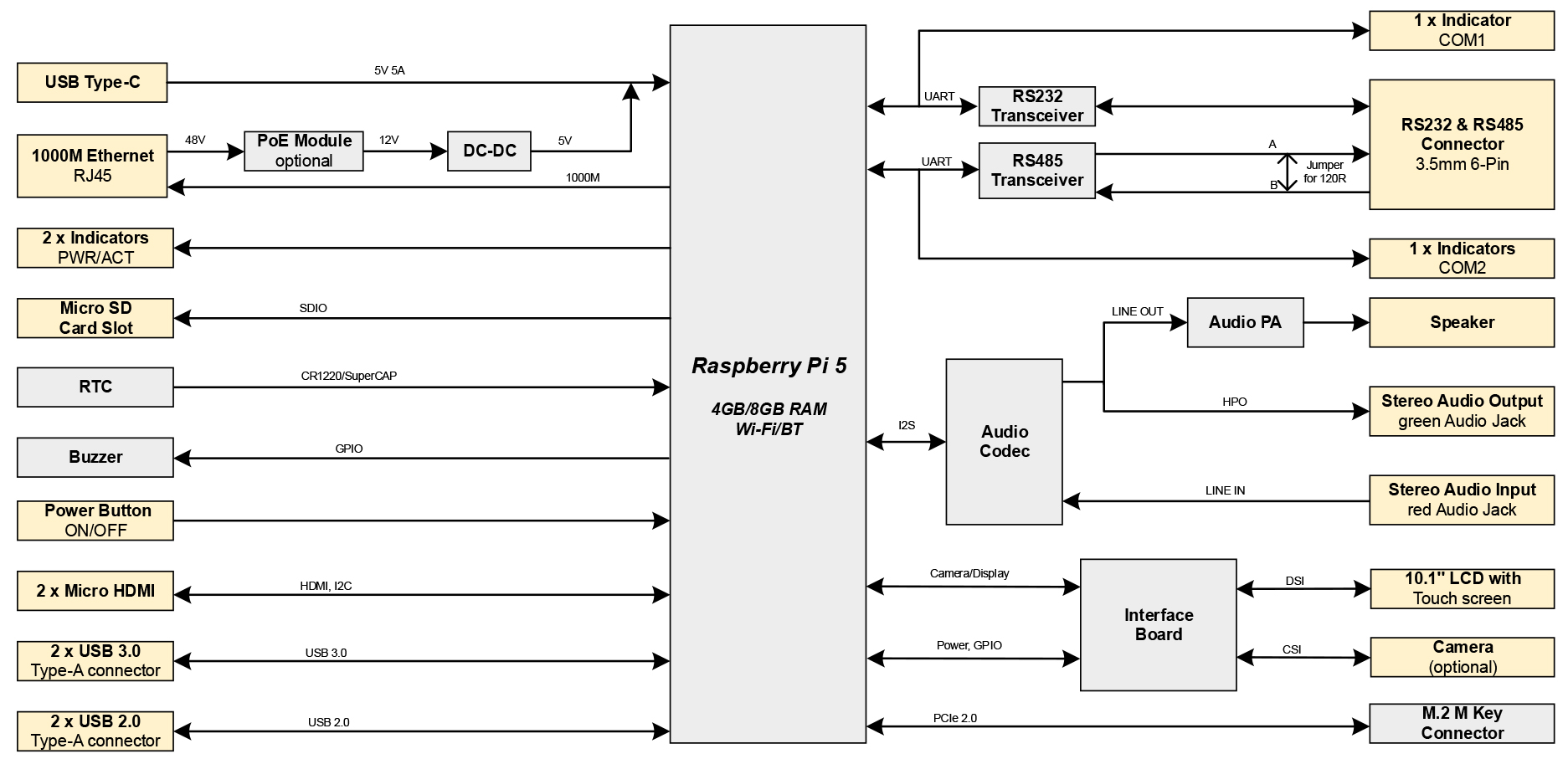

System Block Diagram
Dimension Unit:mm

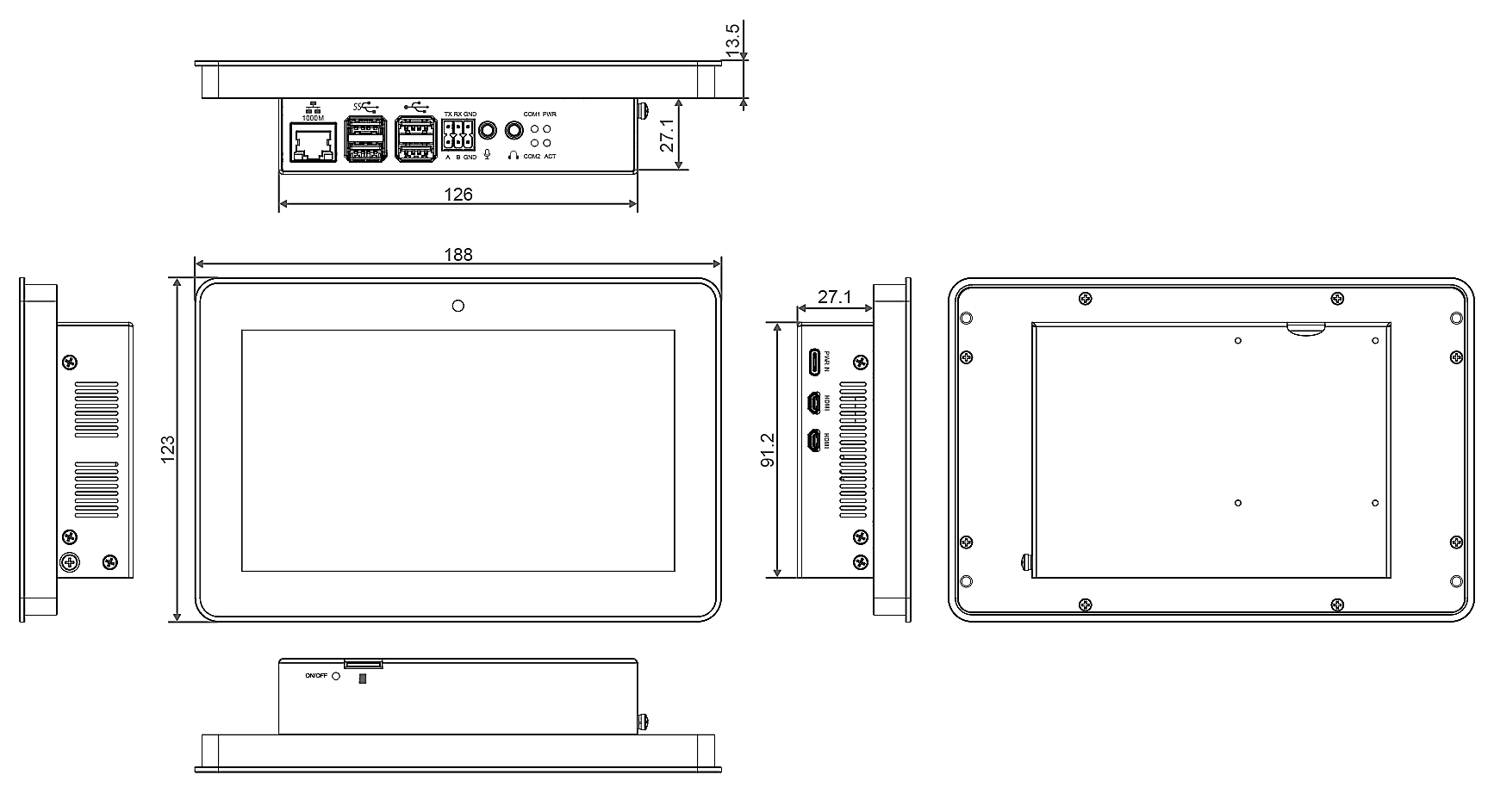

ED-HMI3020-070C

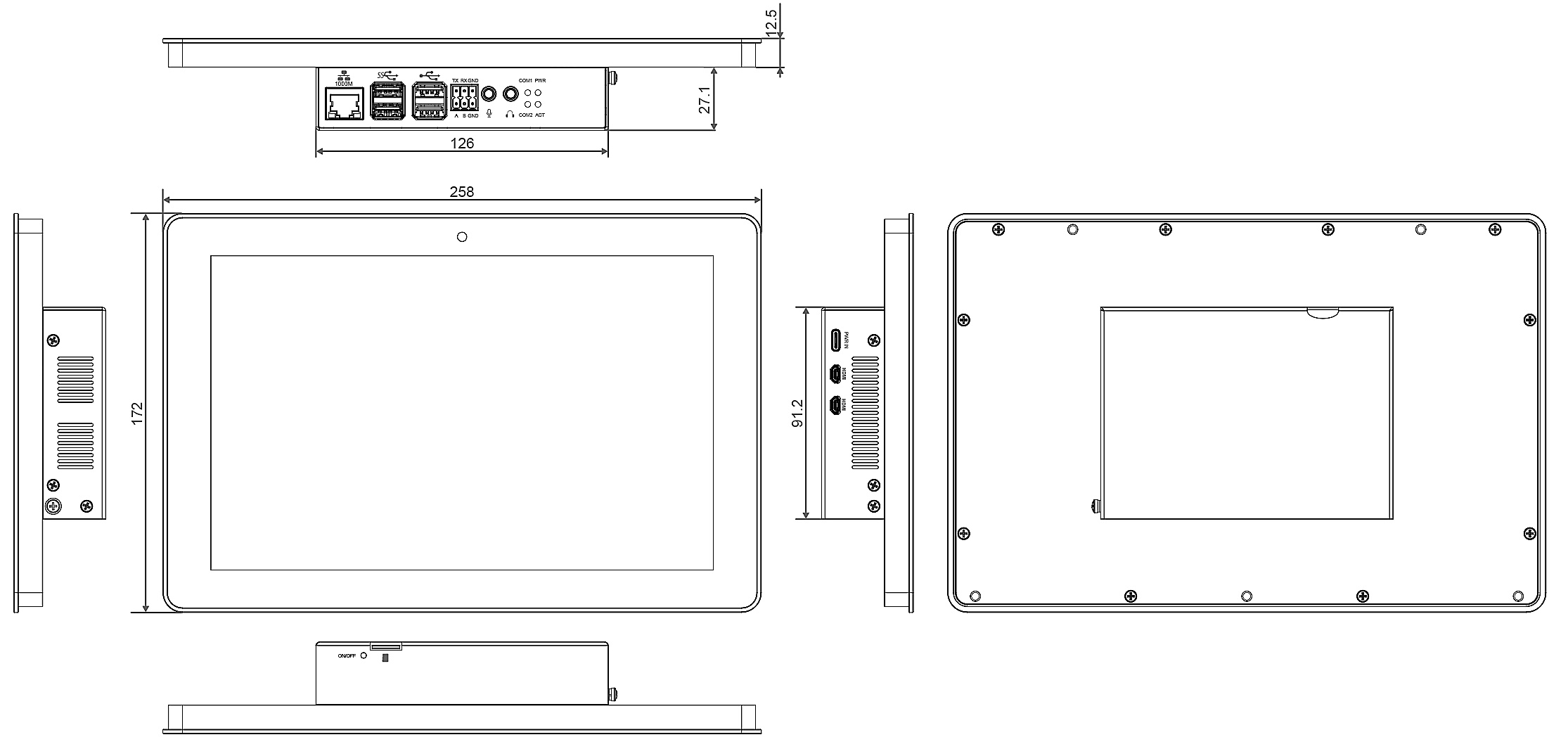

ED-HMI3020-101C

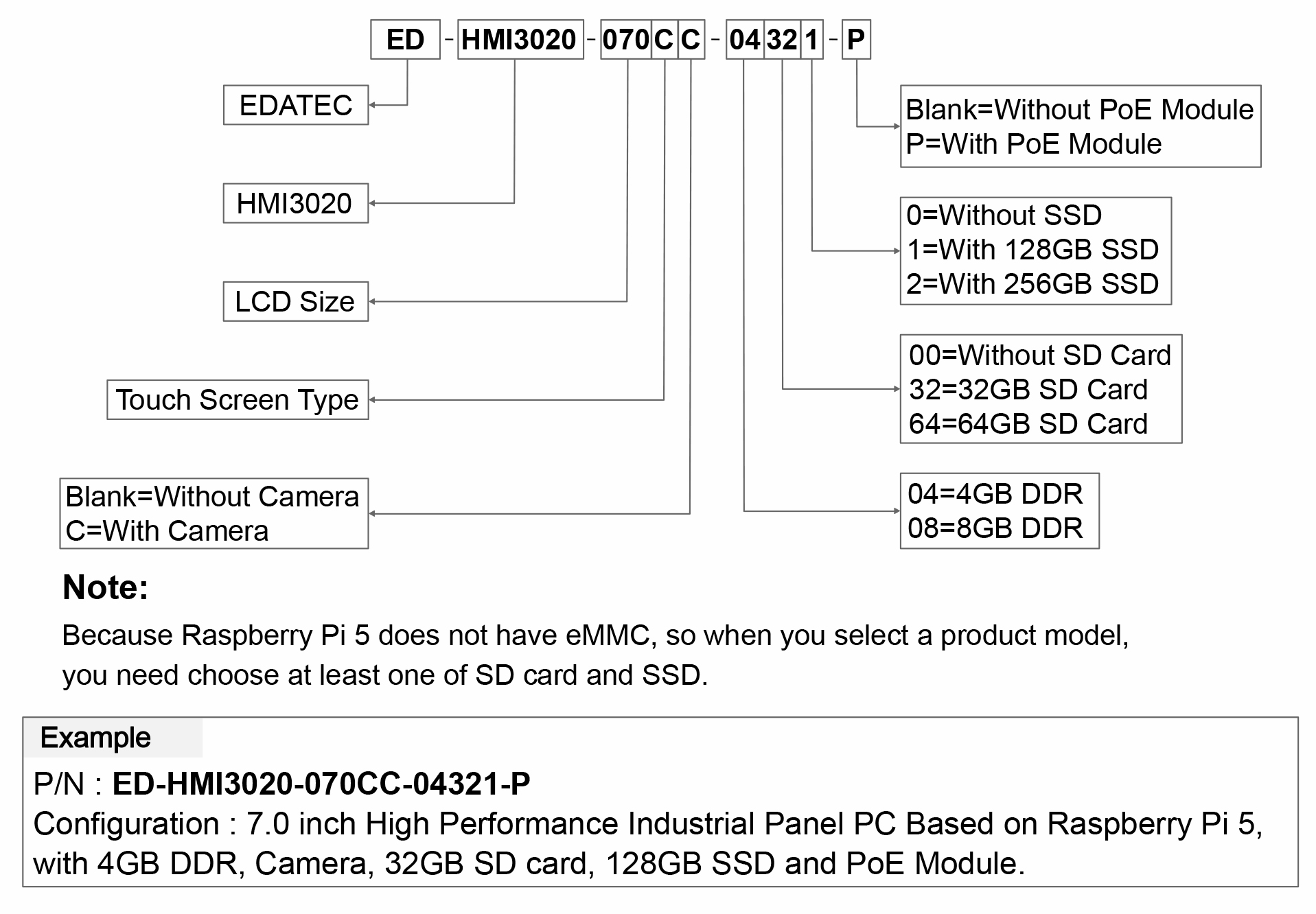

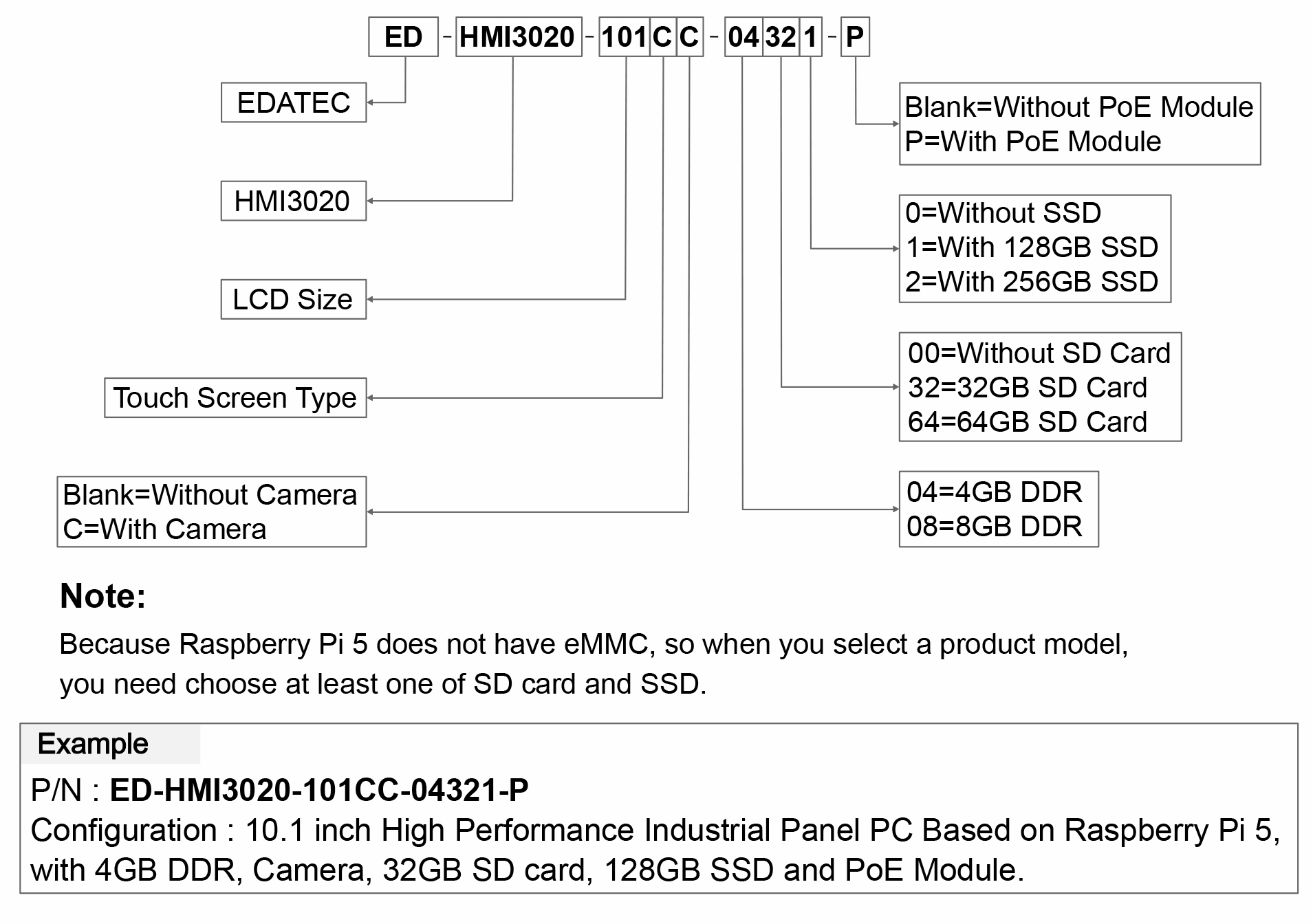

Order Information
