Raspberry Pi 5 RPI5 2/4/8 GB

Details

New generation of Raspberry Pi 5 beyonds the pinnacle of the Raspberry Pi 4, this is the latest addition to the Raspberry Pi family of computers. The new CPU is 2-3 times more powerful, the GPU has been significantly upgraded, and the camera, display, and USB interfaces have all been improved. The interface innovation is made possible by Raspberry Pi's own RP1 I/O control chip, the first time a Raspberry Pi chip has been used in a flagship product !Due to popular demand, Raspberry Pi 5 includes two new features to help you trace sales (and potential returns) of the product:

1) Each board will include a marking on the upper side of the PCB to identify what memory density is fitted to a specific board (visible in the graphic above).
2) All boards carry a unique serial number on the PCB and the individual carton so you can trace what actual boards have been shipped to a specific customer. This, of course, requires you to record serial numbers during your outbound shipping process. Full shippers of 180 boards also carry an external barcode to record the contents of each shipper.

Document Download

Product Brief

RP1 Peripherals

Raspberry Pi 4 VS Raspberry Pi 5

	Raspberry Pi 4	Raspberry Pi 5
CPU	Broadcom BCM2711, quad-coreCortex-A72(ARM 8)64-bit SoC @1.8GHz	Broadcom BCM2712, quad-core Cortex-A76(ARM v8), 64-bit SoC @2.4GHz	2-3 x performance
RAM	1GB, 2GB, 4GB, 8GB	1GB, 2GB, 4GB, 8GB	4GB and 8GB only at launch
Connectivity	2.4GHz and 5.0GHz 802.11ac wireless	2.4GHz and 5.0GHz 802.11ac wireless
	Bluetooth 5.0, BLE	Bluetooth 5.0, BLE
	Gigabit Ethernet	Gigabit Ethernet
	N/A	1 x PCle 2.0 interface	High-speed peripheral interface (for SSDs etc)
	2 x USB 3.0, 2 x USB 2.0 ports	2 x USB 3.0 supporting simultaneous 5Gbps operation, 2 x USB 2.0 ports
	Standard 40-pin GPlO header	Standard 40-pin GPiO header
	2 x micro HDMl ports (up to 4Kp60)	2 x micro HDMl ports (up to 4Kp60)
	2-lane MIPI DSI, 2-lane MIPI CSI	2 x 4-lane MIPI(DSI/CSI)
	4-pole stereo audio and composite video	N/A
OS and data storage	microSD card slot	microSD card slot with support for high-speed SDR104 mode	2 x interface speed
Input power	5V/3A DC(via USB-C connector or GPIO)	5V/5A DC(PD-enabled)	New Raspberry Pi power supply for launch
PoE	Via separate PoE HAT	Via separate new PoE HAT	Fully PoE 802.3at compliant
Real Time Clock(RTC)	N/A	RTC and RTC battery connector

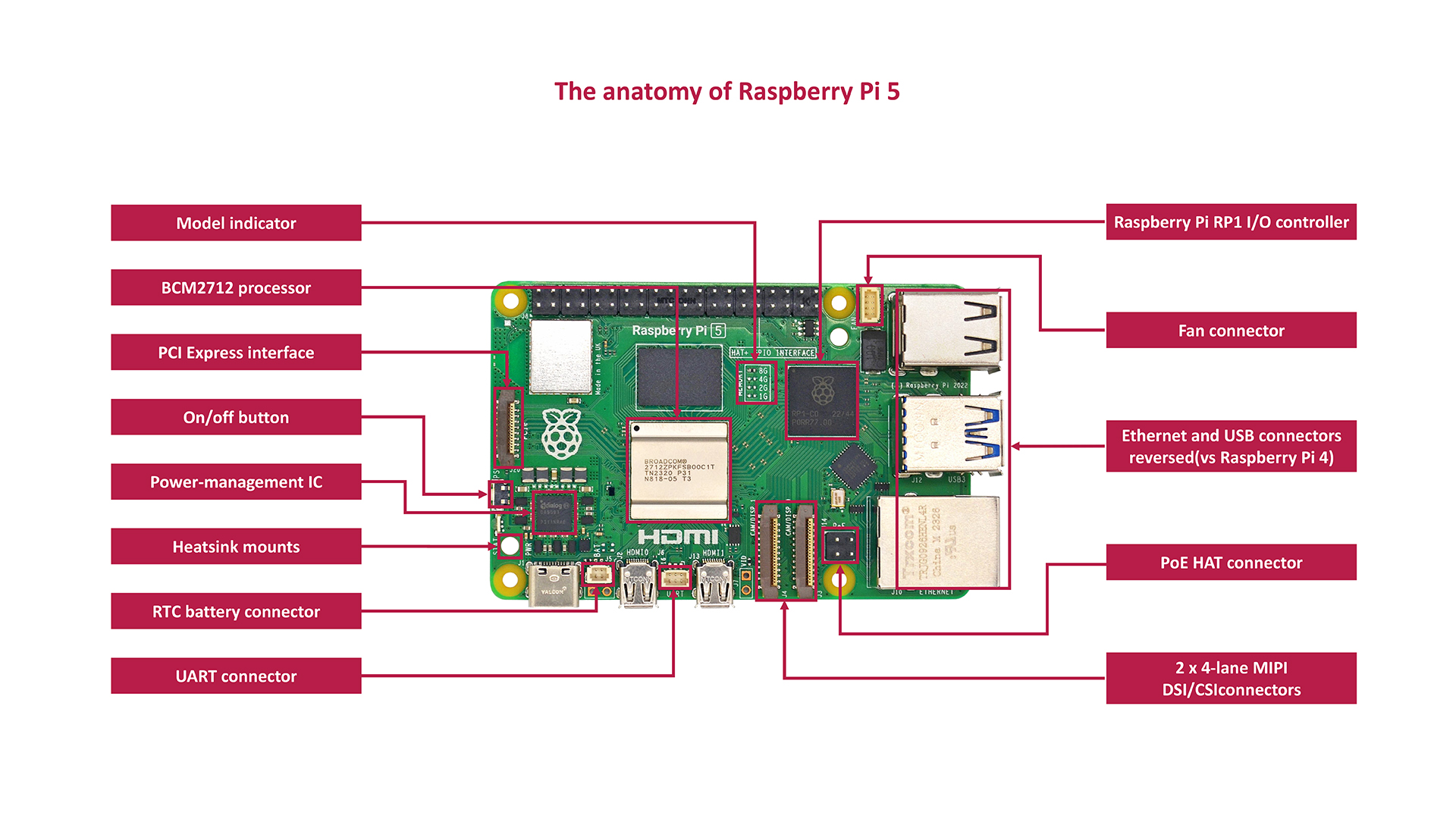

The anatomy of Raspberry Pi 5

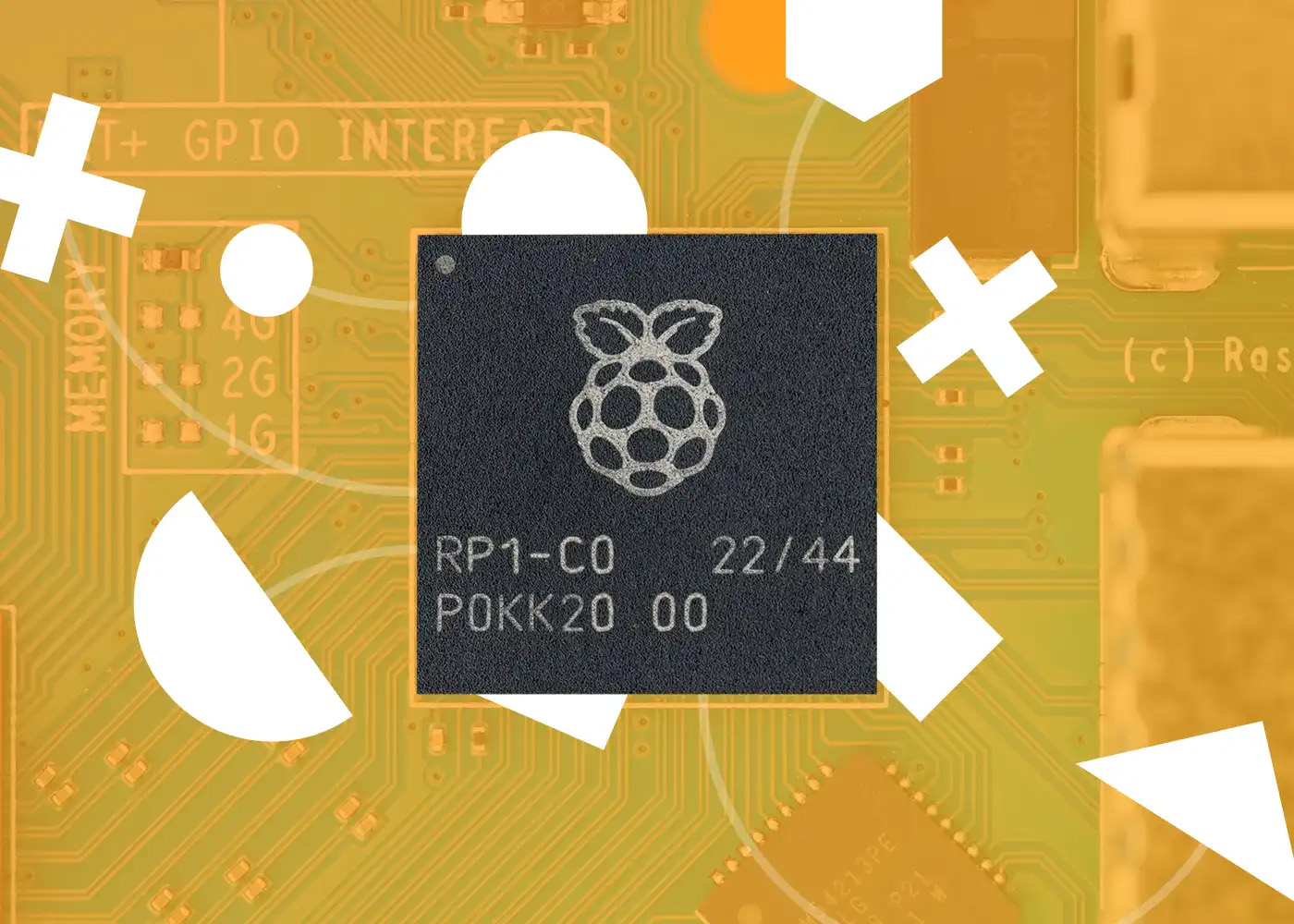

RP1

Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.

USB 3 has more total bandwidth, for much faster transfer speeds.

Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.

More than twice as fast and infinitely smoother

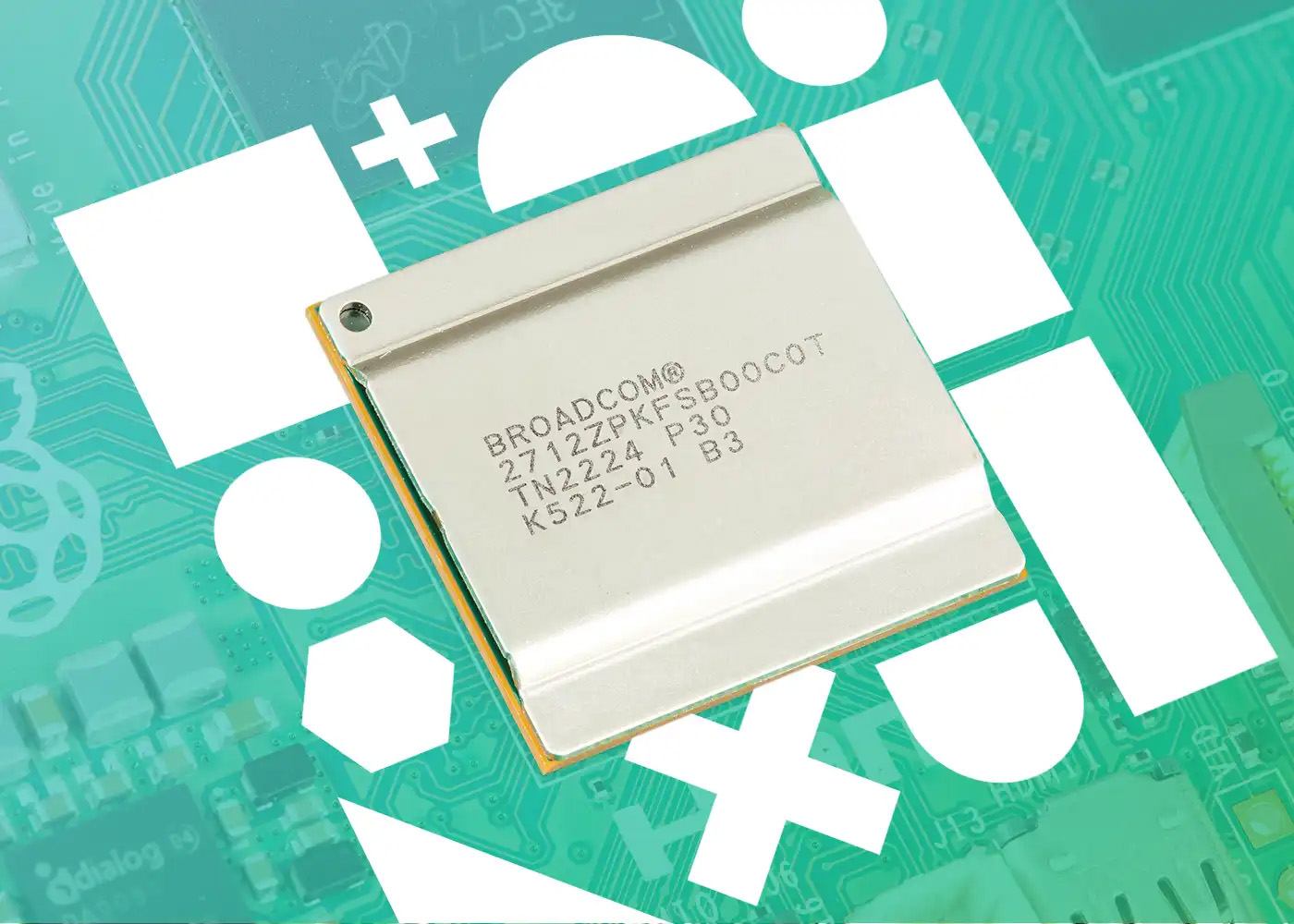

Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 16GB, this is the fastest, smoothest Raspberry Pi experience yet.

All aboard the PCI express

This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.

Feature

- New chipset, better performance: Raspberry Pi 5 features a new quad-core 2.4GHz Cortex-A76 Arm CPU, using the chip inside Raspberry Pi, with significant improvements in peripheral performance and functionality.
- Excellent graphics processing capabilities: Using the 800MHz VideoCore VII GPU, it provides better graphics performance suitable for high-definition multimedia, gaming, and graphics-intensive tasks, and can run various applications more smoothly.
- State Advanced camera support: With a dedicated 4-lane 1Gbps MIPI DSI/CSI display interface that triples total bandwidth and supports any combination of up to two cameras or displays.
- More connectivity options: Offers Gigabit Ethernet and PCIe interfaces, as well as dual-band Wi-Fi and Bluetooth-compatible 5.0/BLE wireless capabilities.
- Rich Peripheral Interfaces: Provides 1 UART connector, 1 microSD card slot supporting high-speed, 2 USB.0 3.0 supporting 5Gbps synchronous operation, 2 USB2.0 ports, 1 RTC, 2 supporting 4Kp60 display output for HDR.

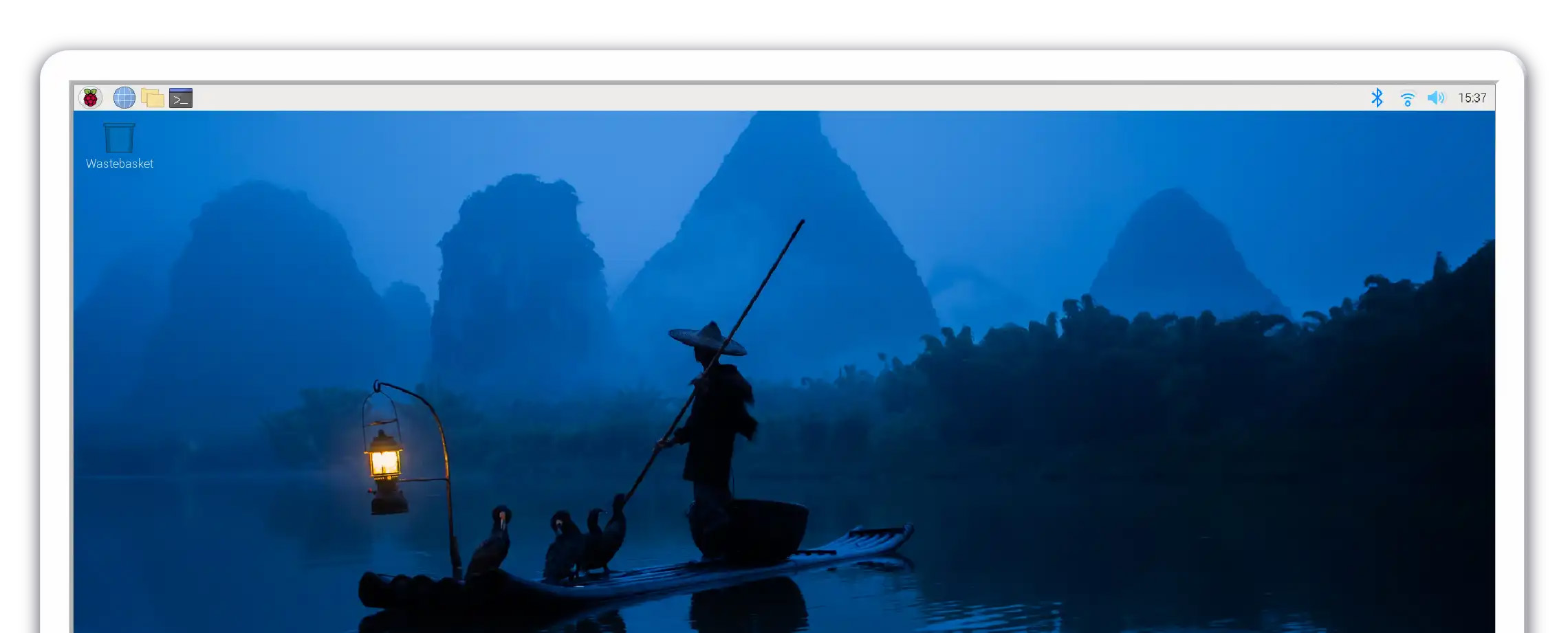

Raspberry Pi OS

The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5.

The newest version of our operating system delivers a superb desktop performance,

making it an ideal computer for work, leisure, enterprise, and more.

That’s not all

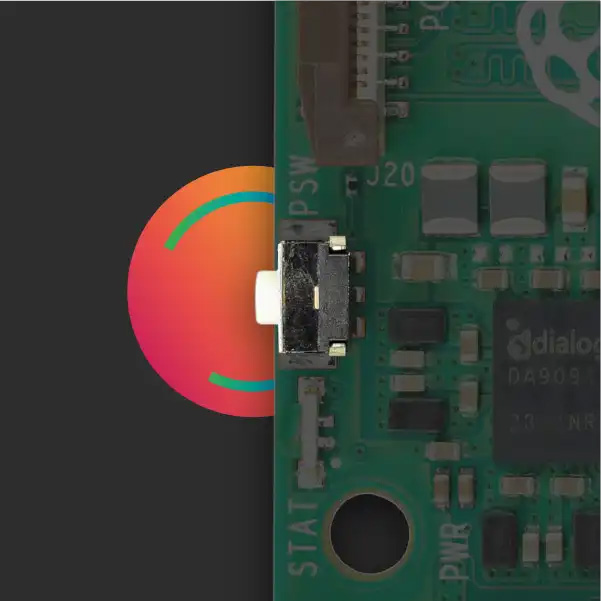

Power button

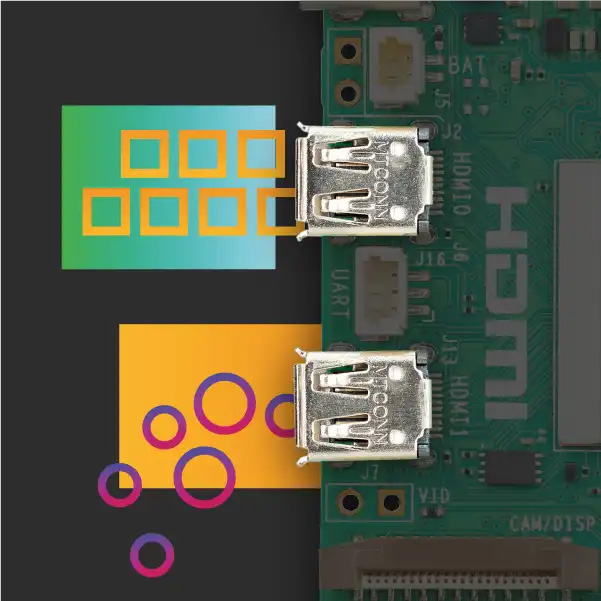

Dual 4Kp60

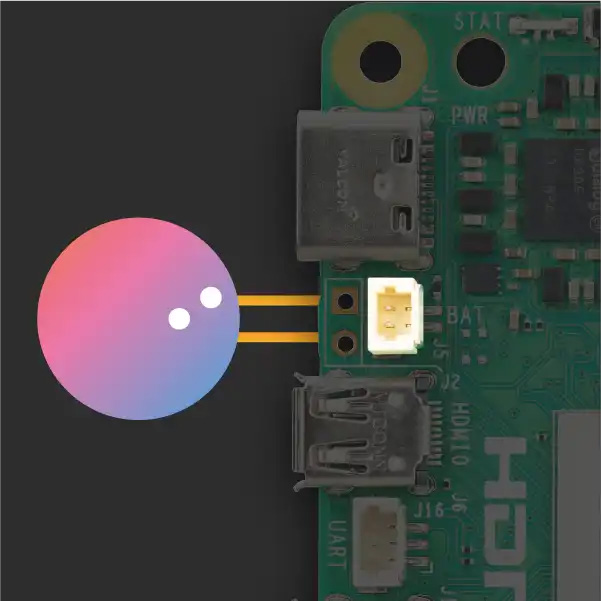

Real-time clock

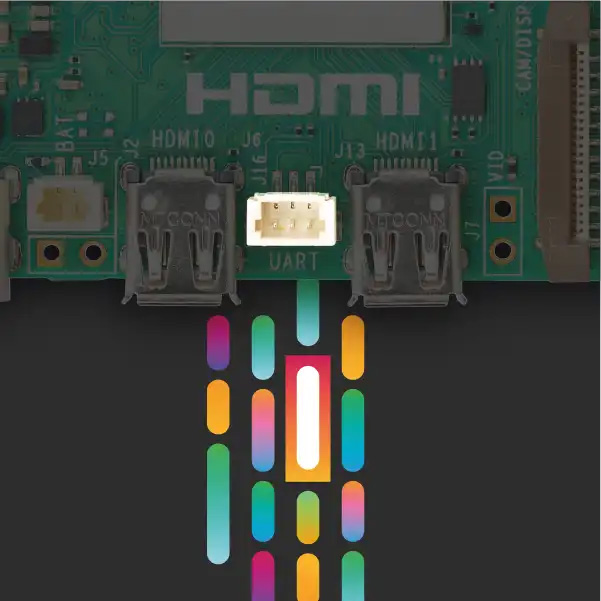

UART debug port

Specification

- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
- Dual 4Kp60 HDMI® display output with HDR support
- 4Kp60 HEVC decoder
- LPDDR4X-4267 SDRAM
- Dual-band 802.11ac Wi-Fi®
- Bluetooth-compatible 5.0 / Bluetooth-compatible Low Energy (BLE)
- microSD card slot, with support for high-speed SDR104 mode
- 2 x USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 x USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
- 2 x 4-lane MIPI camera/display transceivers
- 1x PCIe 2.0 interface for fast peripherals (requires separate M.2 HAT or other adapter)
- 5V/5A DC power via USB-C, with Power Delivery support
- Raspberry Pi standard 40-pin header
- Real-time clock (RTC), powered from external battery
- Power button
