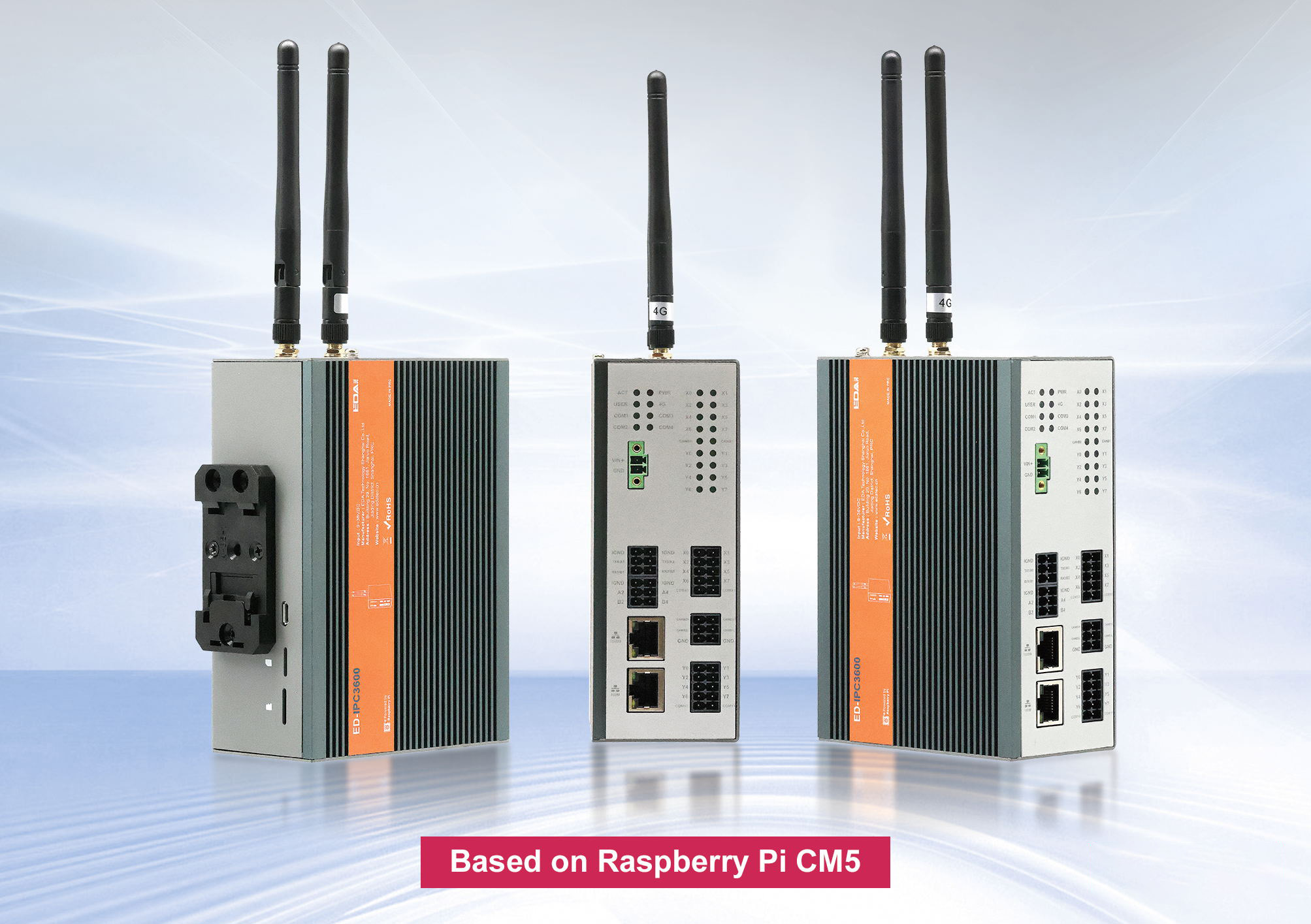

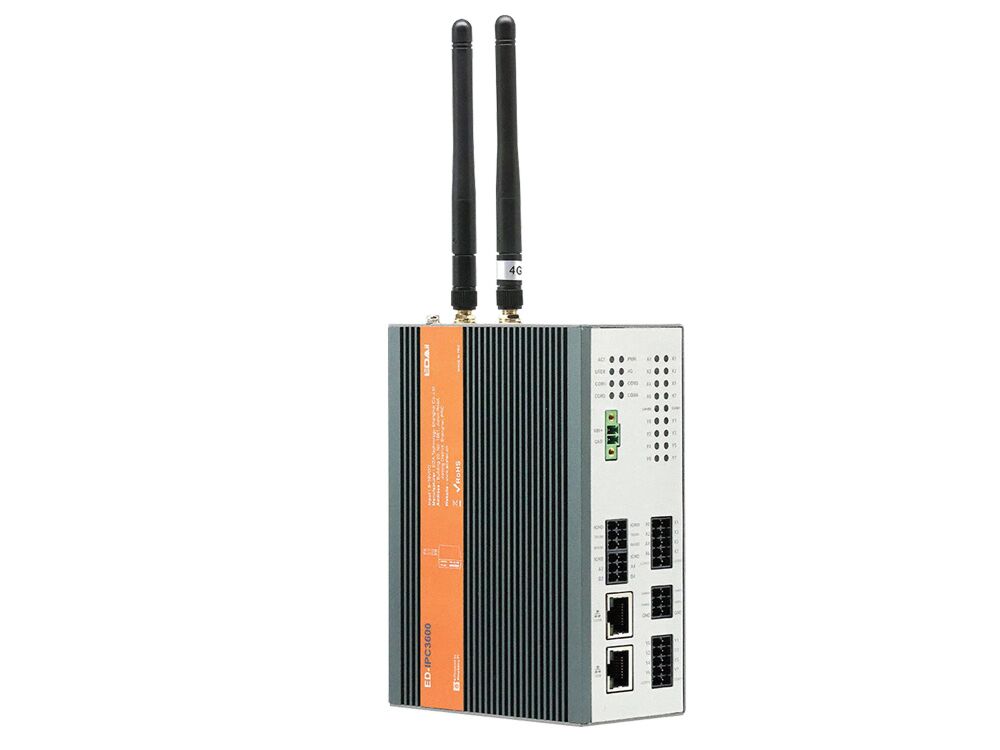

Raspberry Pi CM5 Based Industrial Computer
$267.00
Availability:
In stock
SKU
IPC3632-10216
| ED-IPC3630 Feature |
| Industrial Computer Based on Raspberry Pi CM5 |
| Broadcom BCM2712, quad core Arm Cortex-A76 (ARM v8) 64-bit SoC @ 2GHz Up to 16GB LPDDR4 RAM and 32GB eMMC storage, support Micro-SD Card and M.2 NVMe SSD storage expansion Dual Lans, 1 x Gigabit Ethernet and 1 x 100M Ethernet 4 x isolated RS232/RS485 with electrostatic and surge protection 2 x isolated CAN with led indicator, support CAN 2.0B standard 8 x isolated DI with led indicator, support AC input 8 x isolated DO with led indicator, support overcurrent protection 2.4GHz and 5GHz Wi-Fi, Bluetooth and 4G LTE Optional CODESYS Control for Raspberry Pi MC SL Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection and overcurrent protection Integrated supercapacitor backup power (optional), RTC, Watch Dog, EEPROM and encryption chip Wide temperature range of -25℃~60℃ for working environment High-quality metal case, compatible with DIN-rail installation |
Document Download
Specifications
| System | |
| CPU | Broadcom BCM2712, quad core Arm Cortex-A76 (ARM v8) 64-bit SoC @ 2GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | Options for 2GB,4GB,8GB,16GB LPDDR4-4267 SDRAM |
| Storage | Options for 16GB, 32GB, 64GB eMMC storage Micro SD card(user storage expansion) M.2 NVMe SSD(options for 128GB,256GB,512GB) |
| Software | |
| Operating System | Raspberry Pi 0S (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit Raspberry Pi 0S (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit |
| Front l/O | |
| Power | 1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes.lt supports 9V36V input, the signal is defined as VIN+/GND. |
| RS485/232 |
12-Pin 3.5mm pitch phoenix terminals with 10 isolator, which are equipped with electrostatic and surge protection.Diferent numbers of RS232 and RS485 ports can be selected according to actual application. The signal of RS485 is defined as lGND/AB, and the signal of RS232 is defined as lGND/TXRX.
|
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. it can be used to access the network. |
| 100M Ethernet | 1 x adaptive 10/100M ethernet port, RJ45 connector. lt can be used to access the network. |
| CAN |
2 x CAN ports,6-Pin 3.5mm pitch phoenix terminals
|
| DI |
8 x Dl ports.10-Pin 3.5mm pitch phoenix terminals
|
| DO | 8 x DO ports,10-Pin 3.5mm pitch phoenix terminals
|
| Rear l/O | |
| SD Card Slot | 1 x Micro SD card slot, which is used to install SD card for storing user data. |
| SIM Card Slot | 1 x Nano SlM card slot, which is used to install SlM card for getting 4G signal. |
| Micro USB | 1 x Micro USB port, which supports to flash to eMMC for the system. |
| Side l/0 | |
| HDMI | 1 x HDMl port, type A connector. t is compatible with HDMl 2.1 standard and supports 4K 60Hz |
| USB 2.0 | 2 x USB 2.0 ports, type A connector, supporting up to 480Mbps transmission rate. |
| Antenna | 2 x SMA ports, using to connect 4G antenna and Wi-Fi/BT antenna. |
| Buttons and Indicators | |
| Reset | 1 x Reset button, which can reset the device. |
| PWR | 1 x red power indicator, which is used to check the status of device power-on and power-off |
| 4G | 1 x green 4G indicator, which is used to check the status of 4G signal. |
| ACT | 1 x green system indicator, which is used to check the working status of device. |
| USER | 1 x green user indicator, user can customize a status according to actual application. |
| COM1-COM4 | 4 x green UART indicators, using to check the communication status of UART ports |
| CANO-CAN1 | 2 x green CAN indicators, using to check the communication status of CAN ports. |
| X0-X7 | 8 x green Dl indicators, using to check the input status of Dl ports. |
| Y0-Y7 | 4 x green DO indicators, using to check the output status of DO ports |
| Expansion l/0 | |
| 12V 1A | 3 x DC OUT, 2-Pin 2.0mm pitch wTB connector, supporting 12V 1A output. These pins are defined as GND/12v,reserving to provide power supply for extended LCD. |
| 5V 1A | 1 x DC OUT, 3-Pin 2.0mm pitch WTB connector, supporting 5V 1A output. These pins are defined as GND/5V/GND reserving to provide power supply for extended LCD. |
| 10-Pin GPIO | 1 x GPlO Pin Header, 2x5-Pin 2.54mm pitch header, using to lead out the expansion GPlO ports. User can customize the function according to actual application, these pins are defined as 8xGPIO/3V3/GND. |
| USB | 1 x USB 2.0, 5-Pin 1.5mm pitch WTB connector, supporting to expand the USB 2.0 port. |
| M.2 B | 1 x M.2 B, M.2 B Key connector, supporting to connect SSD. it is compatible with M.2 B 2230 and M.2 B 2242 SSD |
| Expansion Performance | |
| EEPROM | Supports 4K byte storage and improves the ease of use of device. |
| Encryption chip | lt can be matched to realize the required upper layer application and improves the security of device |
| RTC | RTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off. We also provide a battery base, and you can buy a CR1220 battery backup for RTC. |
| Buzzer | A tip or an abnormity can be configurated according to actual application, which realizes the alarm function |
| Watch Dog | This function has been reserved on hardware. But we need additional software to support it, which is under development. |
| Electrical Characteristics | |
| Input Voltage | 9V~36V DC |
| Power Consumption | 24W (Max) |
| Mechanical Characteristics | |
| Dimensions | 143mm x 100mm x 55mm (WxDxH, DIN-rail and antenna are not included.) |
| Weight | 1Kg |
| Installation | DIN-rail mounting |
| Wireless | |
| Wi-FiBluetooth (optional) |
2.4GHz & 5GHz dual-band Vi-Fi and Bluetooth 5.0 with antenna
|
| 4G (optional) |
Connect with various 4G LTE modules through the Mini PCle interface, with antenna. EC20-CE Module (China/India)
EC25-AFX Module (North America)
EC25-AUX Module (Latin America/Australia/New Zealand)
EC25-EUX Module(Europe/Middle EastAfrica/Thailand)
EC25-EM Module (Europe/Middle East/Africa/South-East Asia)
|
| Environmental & Regulatory | |
| Operating Temperature | -25°C~60°C |
| Storage Temperature | -25°C~60°C |
| Ambient humidity | 5%~95% (non-condensing) |
| Certifications | FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035 EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |

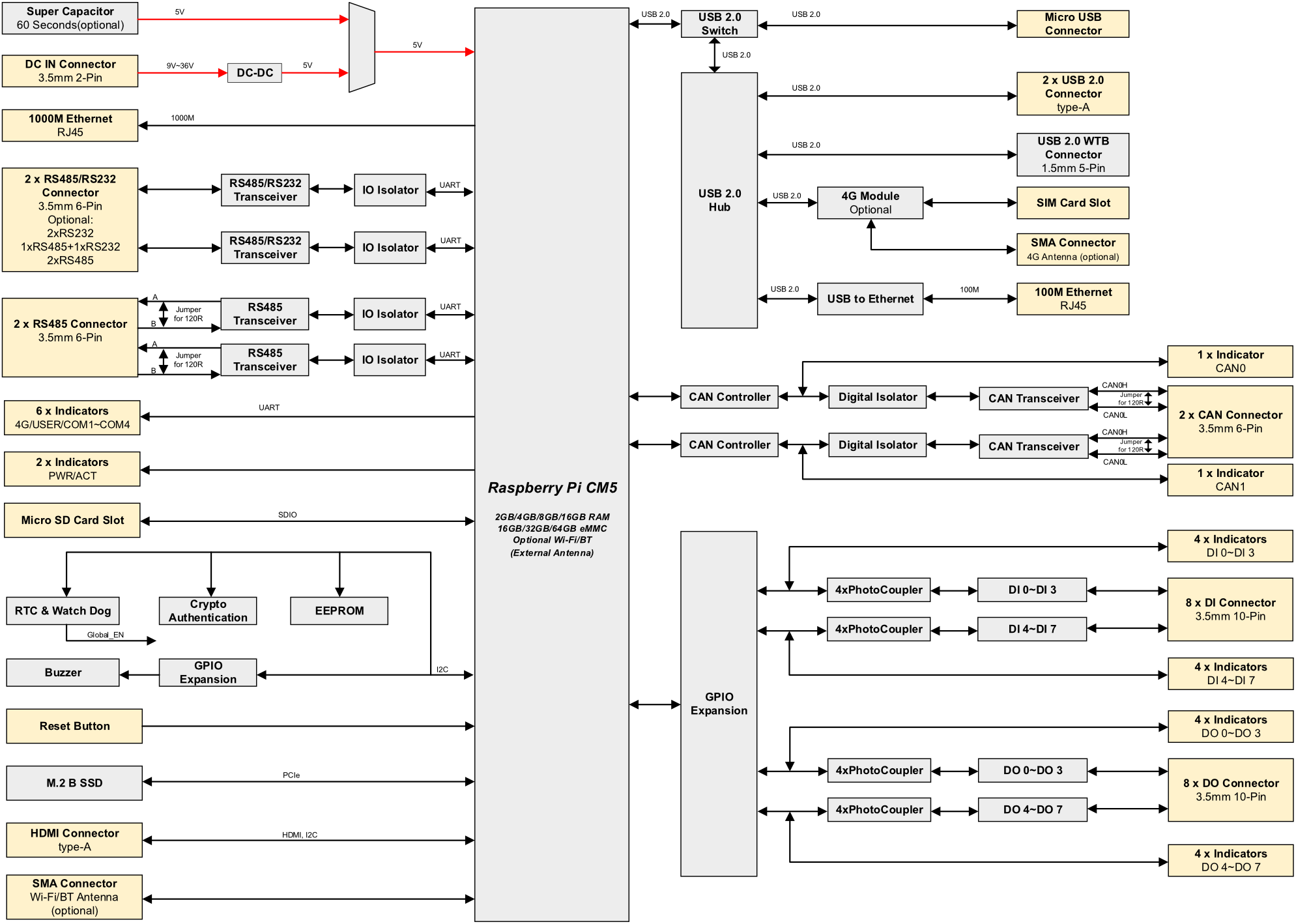

System Block Diagram
Dimension Unit:mm
Order Information
