Raspberry Pi CM5 IO Board
The Raspberry Pi Compute Module 5 IO Board provides a starting point for those wishing to integrate Raspberry Pi Compute Module 5 into products, while also serving as an alternative Raspberry Pi form factor for industrial applications.

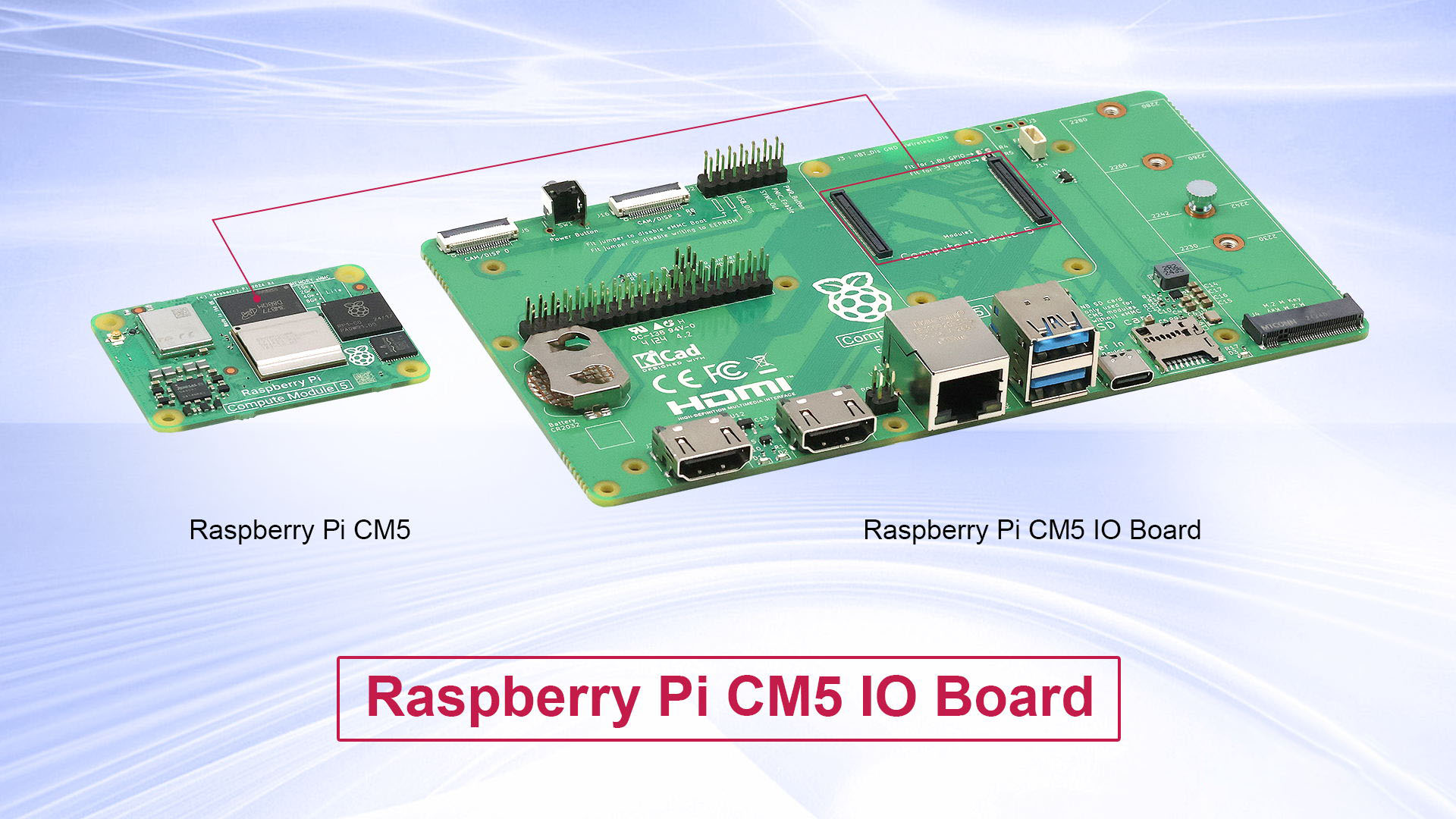

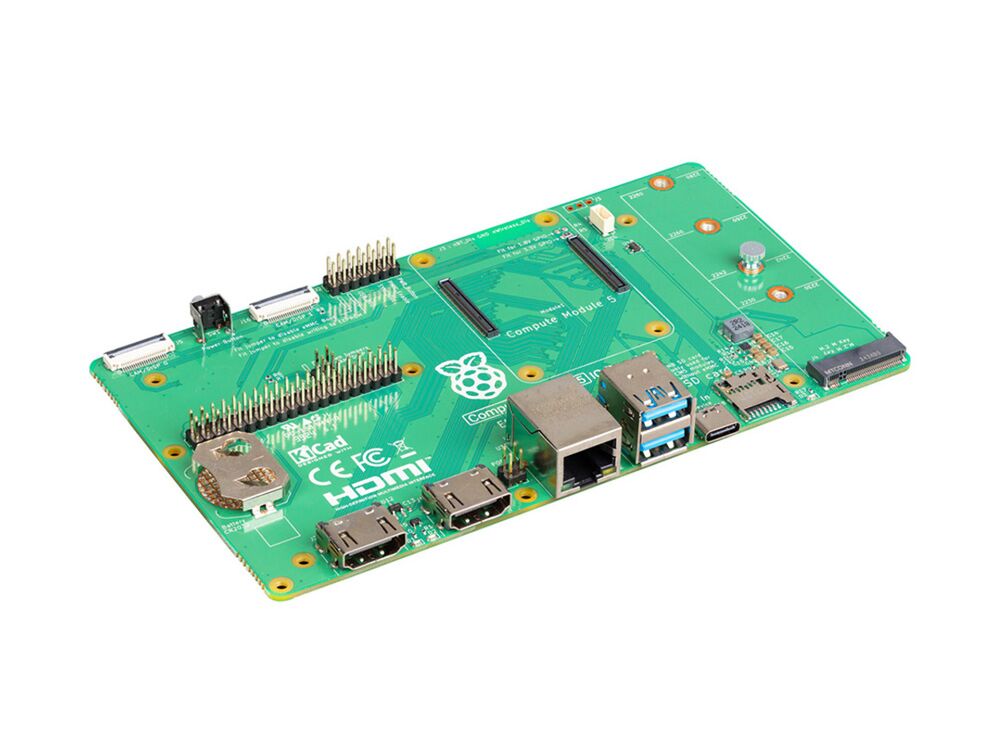

It breaks out the full set of peripheral interfaces provided by Compute Module 5 to the standard connectors used by Raspberry Pi 5 (with full-size HDMI in place of micro HDMI), enabling design engineers to take full advantage of the processing and interfacing capabilities of our flagship modular product.
The IO Board accepts the complete range of Compute Module 5 parts and is available as a reference design in KiCad format.
| Specification | |
| Form factor | 160 mm x 90 mm |
| Connectivity | Standard 40-pin GPl0 header Gigabit Ethernet RJ45 with PoE+ HAT+ support! 2 x USB 3 sockets microSD card socket for Compute Module 5 Lite modules M.2 M key PCle socket 4-pin fan connector 2x MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable) Raspberry Pi HAT+ connector RTC battery socket |
| Video | 2 xfull-size HDM 2.0 connectors |
| Input power | External +5V USB-C PSU Power button to wake and shut down Compute Module 5 |
| MTBF2 Ground Benign | 131 000 hours |
| Production lifetime |
The Raspberry Pi Compute Module 5 l0 Board will remain in production until at least January 2028 |
Document Download
Raspberry Pi CM5 IO Board Datasheet

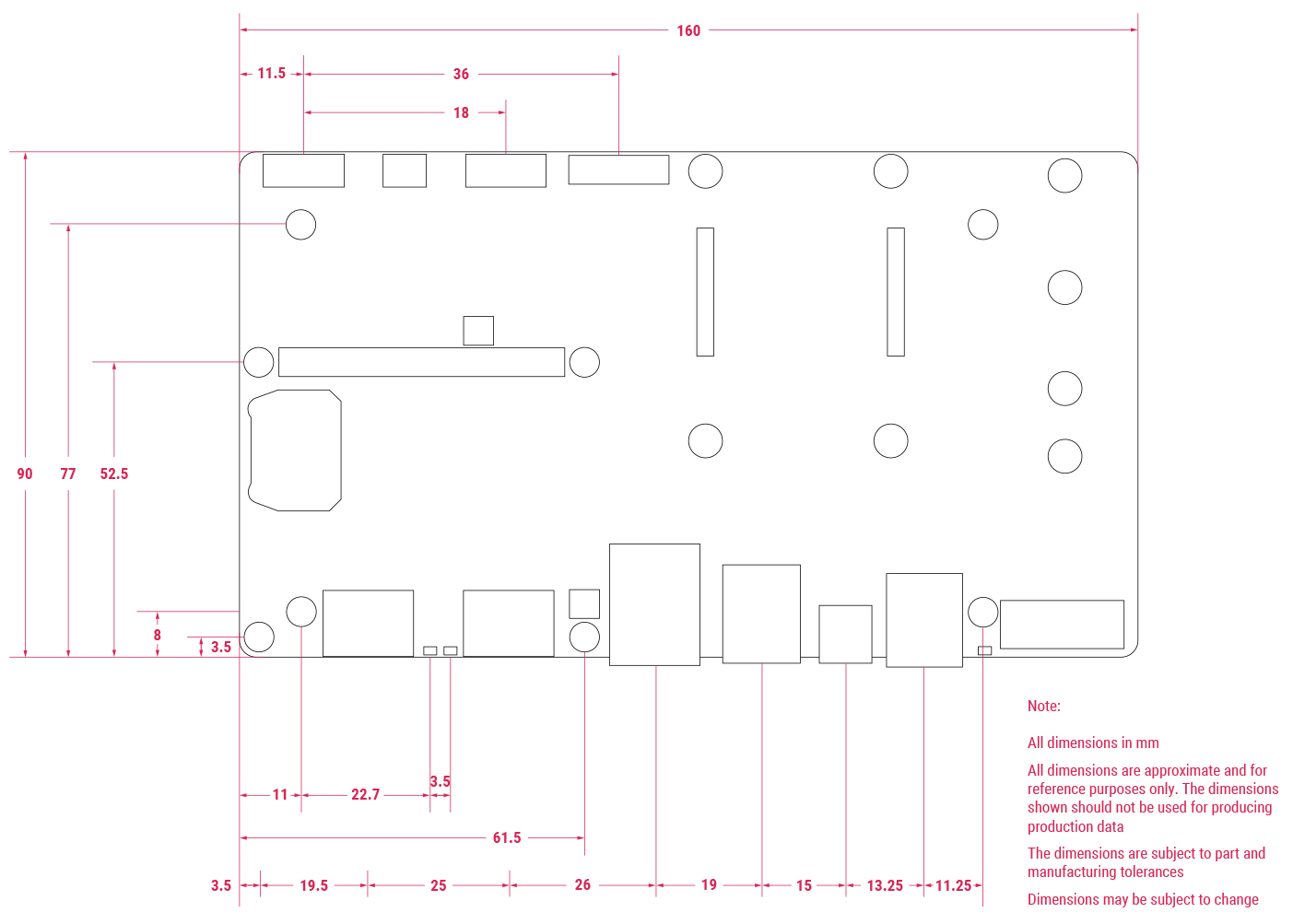

Dimensions Unit：mm
