Raspberry Pi Compute Module 5 CM5

Be the first to review this product

$55.00

Availability: In stock

SKU

PICM510

Details

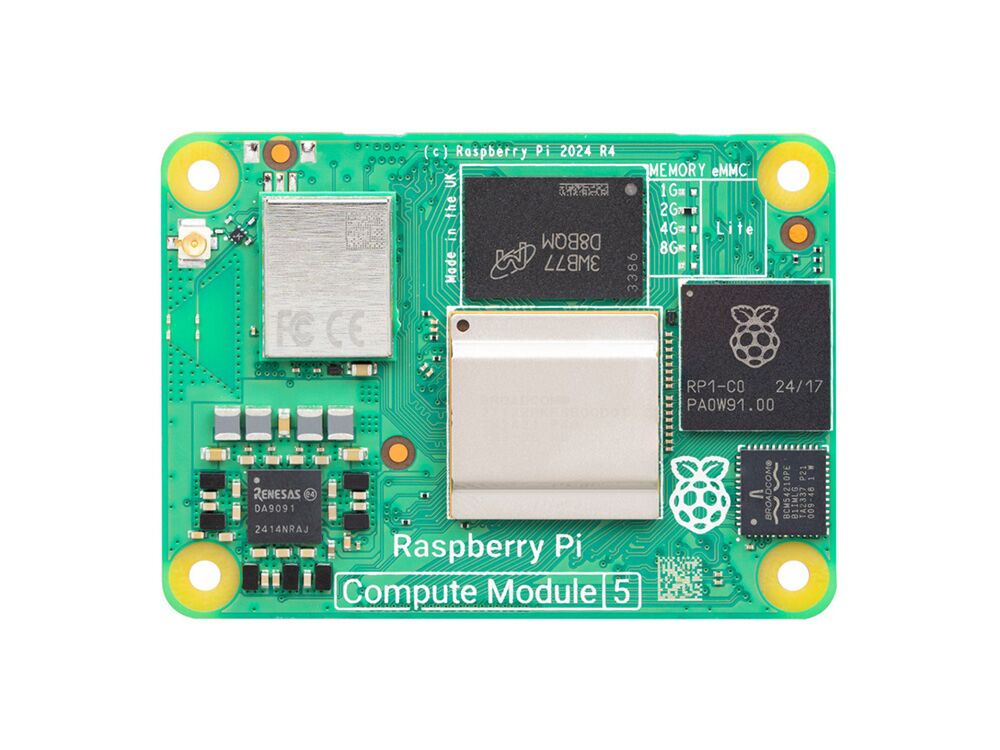

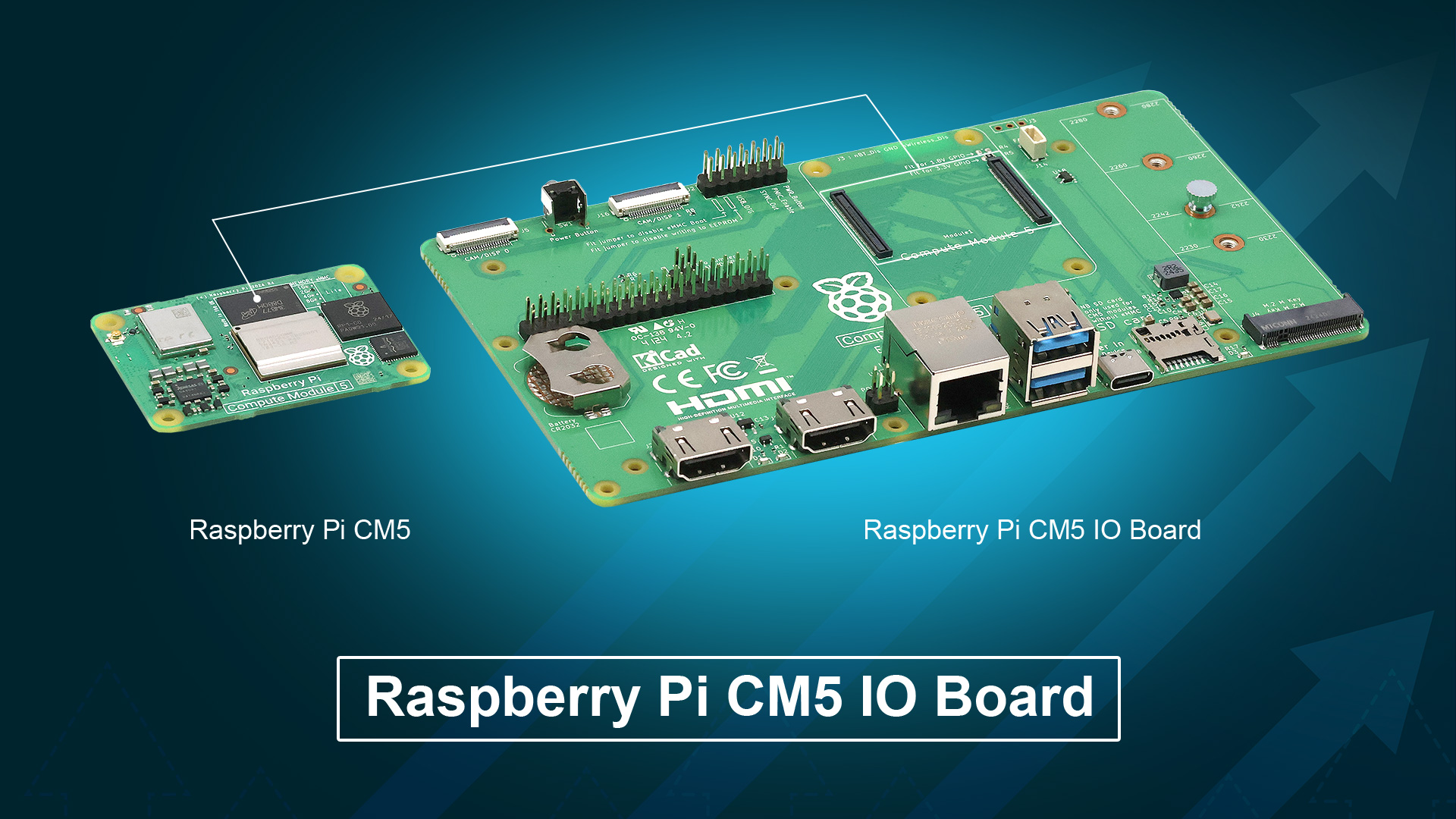

The Raspberry Pi Compute Module 5 (CM5) is a System on Module (SoM) containing processor, memory, eMMC Flash, and supporting power circuitry. These modules allow a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition, these modules have extra IO interfaces over and above
what is available on the Raspberry Pi boards, opening up more options for the designer.

The design of the CM5 is loosely based on the Raspberry Pi 5, and for cost-sensitive applications it can be supplied with‐out the eMMC fitted; this version is called the Raspberry Pi Compute Module 5 Lite (CM5Lite).

The new CM5 and CM5Lite are mostly compatible with the previous generation of compute module. The previous gener‐ation of compute modules are still for sale and will remain in production till at least January 2034. The electrical inter‐face of the CM5 is via two 100-pin high density connectors.

The main change in pinout is to support the addition of 2 USB 3.0 ports.

Document Download

Raspberry Pi CM5 Datasheet

Specifications

- Broadcom BCM2712, quad core Cortex-A76 (ARMv8) 64-bit SoC @ 2.4GHz
4 × M2.5 mounting holes

- 4kp60 HEVC decoder

- OpenGL ES 3.1 graphics, Vulkan 1.2

- Options for 1GB, 2GB, 4GB, 8GB, 16GB LPDDR4-4267 SDRAM with ECC (see Ordering codes)

- Options for 0GB (CM5Lite), 8GB, 16GB, or 32GB eMMC flash memory (see Ordering codes)
Peak eMMC bandwidth 200MBps (twice as faster as previous Compute Modules)

- Option (see Ordering code) for certified radio module with:
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
Bluetooth 5.0, BLE
On board electronic switch to select between PCB trace or external antenna

- Gigabit Ethernet PHY supporting IEEE 1588

- 1 × PCIe 1-lane Host, Gen 2 (5Gbps)

- 1 × USB 2.0 port (high speed)

- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

- up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:
Up to 5 × UART
Up to 5 × I2C
Up to 5 × SPI
1 × SDIO interface
1 × DPI (parallel RGB display)
1 × I2S
Up to 4× PWM channels
Up to 3× GPCLK outputs

- 2 × HDMI 2.0 ports (supports up to 4Kp60 on each port simultaneously)

- 2 × 4-lane MIPI ports
supporting both DSI (display port) and CSI-2 (camera port)

- 1 × SDIO 2.0 (CM5Lite)

- Single +5V PSU input supports USB PD for up to 5A @ 5v.

- Real-time clock (RTC), powered from external battery Accesso

Accessories for Raspberry Pi CM5
