Sunton ESP32-S3 7" 800*480 TN Display with Touch

New Sunton ESP32-S3 7" 800*480 TN Display with Touch

This Sunton ESP32-S3 7" display provides an easy/ quick solution for ESP32 S3 display, and intends IoT applications. It is based on the latest Dual Core CPU ESP32-S3(8M PSRM,16M Flash), the display is TN RGB with resolution of 800*480, and with Capacitive Touch.

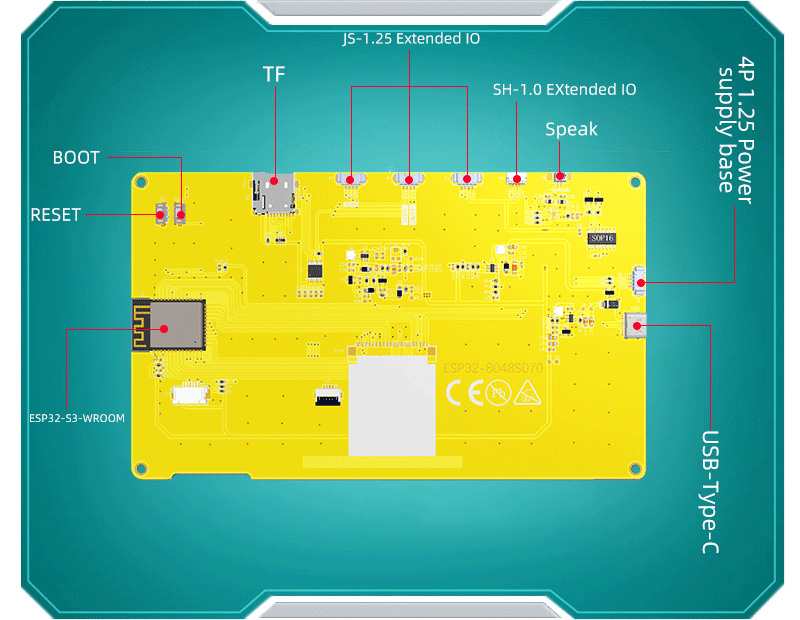

Sunton-ESP32-7-inch-TFT-with-Touch

Compares to the 2.8"/ 4.3" version, there is an update on the 5" and 7" versions, that an I2S audio amplifier MA98357 is added, so this 7 inch display can directly drive 3.2 Watts of power into a 4/8 ohm impedance speaker, to make it suitable for more applications. There is also a 16G SD card in the display, for customer's storage such as pictures, so customers do not need to bother purchasing the SD cards.

Features:

  • Core controller: ESP32-S3;
  • Resolution: 800*480 ,with Parallel RGB-565 interface, FPS >70;
  • TN Display;
  • Capacitive Touch;
  • Dimension: 7 inch;
  • I2S Audio output;
  • Extended IO for applications' usage
  • Package List:

  • SunTon ESP32-S3 7 Inch Touch x1;
  • 16G SD Card x1;
  • Expansion Cable x1;
  • Micro USB Cable x1;
  • Micro Speaker X1;
  • Documents:

  • SunTon 7 inch_ ESP32-4827S043 Datasheet& Demo, with download password: jczn1688
  • Wiki
