How to Order PCB Online
  • Select Specs
  • Upload Gerber File
  • Add to Cart
  • Payment
  • Fabrication
  • Shipment
  • Confirm and Review

PCB

Only ZIP or RAR files accepted. Maximum size 20MB.

Copper Weight: 1oz - 3oz, Minimum Drill Hole Size: 0.2mm
Trace Width/Spacing: 4/4mil, Minimum Solder Mask Dam: 0.1mm

For special requirements not available on this page, please check our Premium PCB service. If you still cannot find what you are looking for, please send your requirements and Gerber files to us (sales@makerfabs.com) and we will come back to you with a price in 2 working days.
i
i

The maximum length and width of your board or panel if the boards are panelised. Maximum and minimum lengths for FR-4 boards: 10 to 550mm.

Learn More
x *Unit: mm
i

The quantity of boards you require.

Learn More
5
i
* eg
i
*Unit: mm
i

The PCB solder mask color. The green standard has the best performance. For most colors, the silkscreen is printed white. Only for white/yellow solder mask, the silkscreen is printed black

Learn More
i

Process to help with solderability.

Learn More
i
i
i
i

Whether or not traces on the board need to meet impedance requirements. Please include impedance documentation in your upload. For more complex requirements, we may contact you for extra fees

i

Does a stencil for the PCB needed? you can select the stencil with frame(normally for machine solder) or not(normally for manually soldering).Please make sure the effective area should be larger than PCB size.

Can't find what you are looking for? Try the Premium PCB service or send us a message at sales@makerfabs.com and we will aim to reply within 2 working day. Please do not leave special requirements on the order form. This is for logistics purposes only and will be ignored during the production stage.

To save on disappointment, please double check your design files for errors. We will not be held responsible for errors in the files.

Makerfab's privacy policy protects your data. We will not disclose your personal information or fabrication data with external parties for any purpose other than for the manufacture of your goods.

Makerfabs offers one-stop prototyping services for PCB (Printed Circuit Board), PCBA (PCB Assembly) and other electronic and mechanical customized services such as CNC milling, 3D printing and PCB layout services. Makerfabs promises mature PCB manufacturing and fabrication with low costs, quick build time and 100% quality guaranteed. We are a Chinese manufacturer trusted by millions of electronic engineers, hobbyists and makers around the world. And here's why:

Instant Online Quote without Hidden Costs
Quick Turnaround from 24 Hours Build Time
10+ Years Industrial Expertise
Professional and Considerate Technical Support

PCB Cost

  • Layer
    2 layers
  • Dimensions
    100mm * 100mm
  • PCB Qty
    5

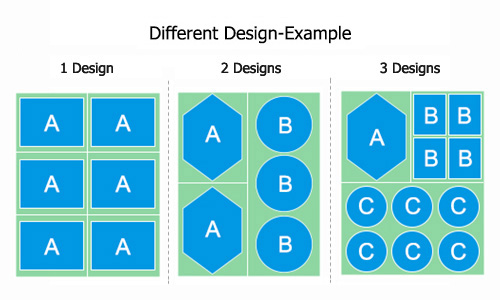

  • Different PCB Design
    1
  • PCB Thickness
    1.6
  • PCB Color
    Green
  • Surface Finish
    HASL
  • Castellated Hole/Plated Half-holes
    No
  • Copper Weight
    1oz
  • Impedance Control
    No
  • Stencil
    No
  • Sub total
    USD$ 0
  • Production Time
    5-8 working days
  • Weight
    200g

Gerber Files
TOP LAYER:pcbname.GTL BOTTOM LAYER:pcbname.GBL
Solder Stop Mask top:pcbname.GTS Solder Stop Mask Bottom:pcbname.GBS
Silk Top:pcbname.GTO Silk Bottom:pcbname.GBO
NC Drill:pcbname.TXT Mechanical layer:pcbname.GML

Note:

1. Note that Gerber files must be RS-274x format

2. Drill file(pcbname.TXT) should be Excellon format, and make sure it includes drills size and position data

3. Besides the production Gerber files, We also accept PCB files generated by Eagle, Altium Designer, PADS

4. Please leave a comment in the order for special requirements

Specifications
Multi Layers:1-2-4-6-8 PCB Material:FR-4
Available Color:Green, Red, Yellow, Blue, White, Black, Matte Black, Purple Silk Screen:White, Black (For White and Yellow Solder Mask)
Maximum Size:55cm X 55cm Minimum Qty:5pcs
Board Thickness:0.6mm,0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm Thickness Tolerance:(t≥1.0mm) ± 10%
Thickness Tolerance:(t<1.0mm) ± 0.1mm Minimum PCB track:6mil (Recommend >8mil)
Minimum Track Space:6mil (Recommend >8mil) Minimum pads Space:8mil
Minimum silkscreen text width:0.15mm Minimum silkscreen text height:0.8mm
Out Layer Copper Thickness:1oz(35um)/2oz(70um) Inner Layer Copper Thickness:17um/35um
Drilling Hole:0.3mm Drill Diameter Tolerance (non-plated):0.05mm
Drill Diameter Tolerance (plated):0.1mm Outline Tolerance (Mechanical):±0.20mm
Surface Finish:HASL, HASL (Lead Free), ENIG
