Air602 WiFi Module

Air602 WiFi Module

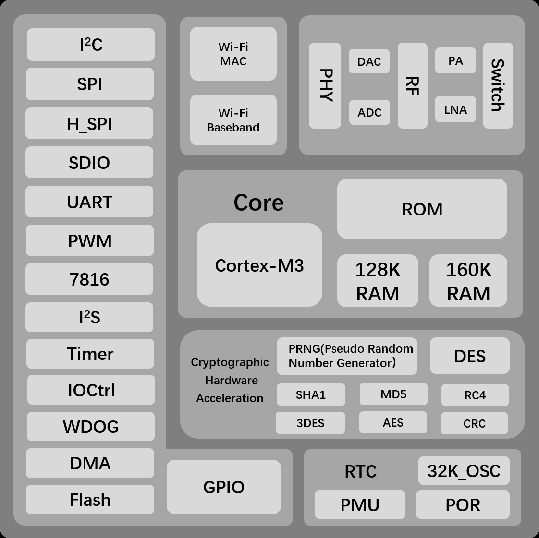

The Air602 is a 2.4G Wi-Fi module based on the embedded Wi-Fi SoC chip (W600) with a 12-pin Stamp Hole Expansion Interface. Miracly, it is even smaller than a stamp. It's only 12mm*10mm, small but complete, it offers a rich interface and complete functionality. This module support IEEE802.11b/g/n and AT command.

Features:

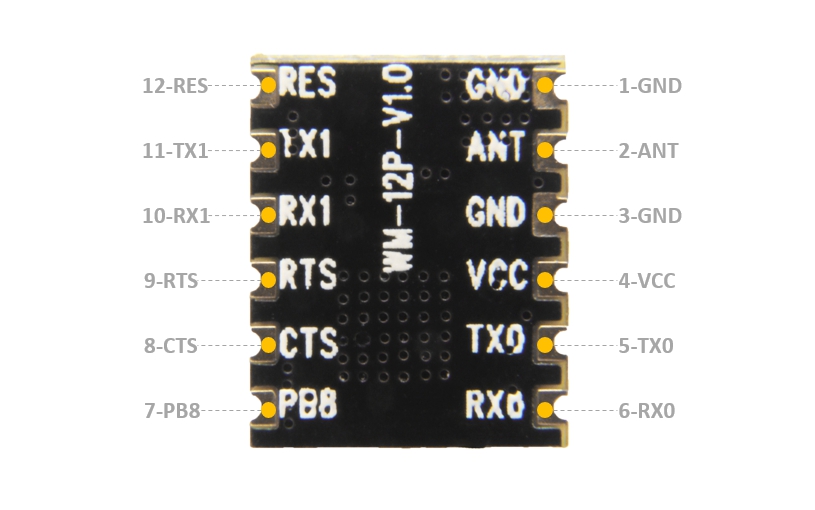

  • Stamp Hole Expansion Interface, pin spacing 2.0mm
  • Two UART, support RTS/CTS
  • One SPI device controller
  • Integrated GPIO device controller
  • Support IEEE802.11 b/g/e/i/d/k/r/s/w/n
  • Support 2.4~2.4835 GHz
  • Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS
  • Support Wi-Fi Direct
  • STBC、GreenField、Short-GI
  • Support multiple network protocols: TCP/UDP/ICMP/DHCP/DNS/HTTP
  • intelligent home appliances
  • smart home
  • wireless audio and video
  • smart toys
  • medical monitoring
  • industrial control
  • other Internet of Things applications
  • Package List:

  • 1 x Air602 WiFi Module
  • Documents:

  • Air602 AT Command User Manual
  • Air602 Hardware Design Manual
  • AirM2M_W600_SDK
